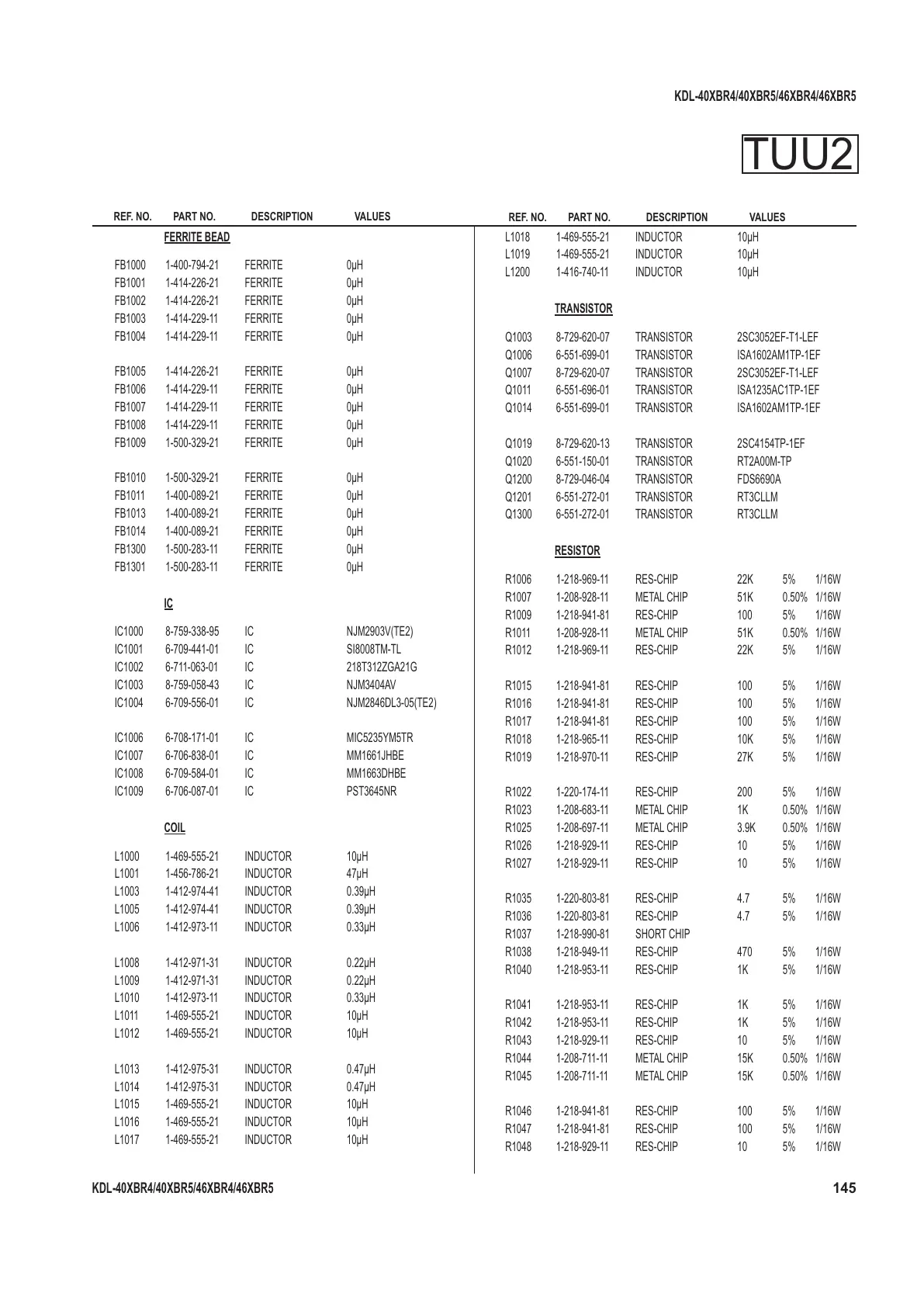

REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
FERRITE BEAD
FB1000 1-400-794-21 FERRITE 0µH
FB1001 1-414-226-21 FERRITE 0µH
FB1002 1-414-226-21 FERRITE 0µH
FB1003 1-414-229-11 FERRITE 0µH
FB1004 1-414-229-11 FERRITE 0µH
FB1005 1-414-226-21 FERRITE 0µH
FB1006 1-414-229-11 FERRITE 0µH
FB1007 1-414-229-11 FERRITE 0µH
FB1008 1-414-229-11 FERRITE 0µH
FB1009 1-500-329-21 FERRITE 0µH
FB1010 1-500-329-21 FERRITE 0µH
FB1011 1-400-089-21 FERRITE 0µH
FB1013 1-400-089-21 FERRITE 0µH
FB1014 1-400-089-21 FERRITE 0µH
FB1300 1-500-283-11 FERRITE 0µH
FB1301 1-500-283-11 FERRITE 0µH
IC
IC1000 8-759-338-95 IC NJM2903V(TE2)
IC1001 6-709-441-01 IC SI8008TM-TL
IC1002 6-711-063-01 IC 218T312ZGA21G
IC1003 8-759-058-43 IC NJM3404AV
IC1004 6-709-556-01 IC NJM2846DL3-05(TE2)
IC1006 6-708-171-01 IC MIC5235YM5TR
IC1007 6-706-838-01 IC MM1661JHBE
IC1008 6-709-584-01 IC MM1663DHBE
IC1009 6-706-087-01 IC PST3645NR
COIL
L1000 1-469-555-21 INDUCTOR 10µH
L1001 1-456-786-21 INDUCTOR 47µH
L1003 1-412-974-41 INDUCTOR 0.39µH
L1005 1-412-974-41 INDUCTOR 0.39µH
L1006 1-412-973-11 INDUCTOR 0.33µH
L1008 1-412-971-31 INDUCTOR 0.22µH
L1009 1-412-971-31 INDUCTOR 0.22µH
L1010 1-412-973-11 INDUCTOR 0.33µH
L1011 1-469-555-21 INDUCTOR 10µH
L1012 1-469-555-21 INDUCTOR 10µH
L1013 1-412-975-31 INDUCTOR 0.47µH
L1014 1-412-975-31 INDUCTOR 0.47µH
L1015 1-469-555-21 INDUCTOR 10µH
L1016 1-469-555-21 INDUCTOR 10µH
L1017 1-469-555-21 INDUCTOR 10µH
L1018 1-469-555-21 INDUCTOR 10µH
L1019 1-469-555-21 INDUCTOR 10µH
L1200 1-416-740-11 INDUCTOR 10µH
TRANSISTOR
Q1003 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1006 6-551-699-01 TRANSISTOR ISA1602AM1TP-1EF
Q1007 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1011 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q1014 6-551-699-01 TRANSISTOR ISA1602AM1TP-1EF
Q1019 8-729-620-13 TRANSISTOR 2SC4154TP-1EF
Q1020 6-551-150-01 TRANSISTOR RT2A00M-TP
Q1200 8-729-046-04 TRANSISTOR FDS6690A
Q1201 6-551-272-01 TRANSISTOR RT3CLLM
Q1300 6-551-272-01 TRANSISTOR RT3CLLM
RESISTOR
R1006 1-218-969-11 RES-CHIP 22K 5% 1/16W
R1007 1-208-928-11 METAL CHIP 51K 0.50% 1/16W
R1009 1-218-941-81 RES-CHIP 100 5% 1/16W
R1011 1-208-928-11 METAL CHIP 51K 0.50% 1/16W
R1012 1-218-969-11 RES-CHIP 22K 5% 1/16W
R1015 1-218-941-81 RES-CHIP 100 5% 1/16W
R1016 1-218-941-81 RES-CHIP 100 5% 1/16W
R1017 1-218-941-81 RES-CHIP 100 5% 1/16W
R1018 1-218-965-11 RES-CHIP 10K 5% 1/16W
R1019 1-218-970-11 RES-CHIP 27K 5% 1/16W
R1022 1-220-174-11 RES-CHIP 200 5% 1/16W
R1023 1-208-683-11 METAL CHIP 1K 0.50% 1/16W
R1025 1-208-697-11 METAL CHIP 3.9K 0.50% 1/16W
R1026 1-218-929-11 RES-CHIP 10 5% 1/16W
R1027 1-218-929-11 RES-CHIP 10 5% 1/16W
R1035 1-220-803-81 RES-CHIP 4.7 5% 1/16W
R1036 1-220-803-81 RES-CHIP 4.7 5% 1/16W
R1037 1-218-990-81 SHORT CHIP
R1038 1-218-949-11 RES-CHIP 470 5% 1/16W
R1040 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1041 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1042 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1043 1-218-929-11 RES-CHIP 10 5% 1/16W
R1044 1-208-711-11 METAL CHIP 15K 0.50% 1/16W
R1045 1-208-711-11 METAL CHIP 15K 0.50% 1/16W
R1046 1-218-941-81 RES-CHIP 100 5% 1/16W
R1047 1-218-941-81 RES-CHIP 100 5% 1/16W
R1048 1-218-929-11 RES-CHIP 10 5% 1/16W
TUU2
