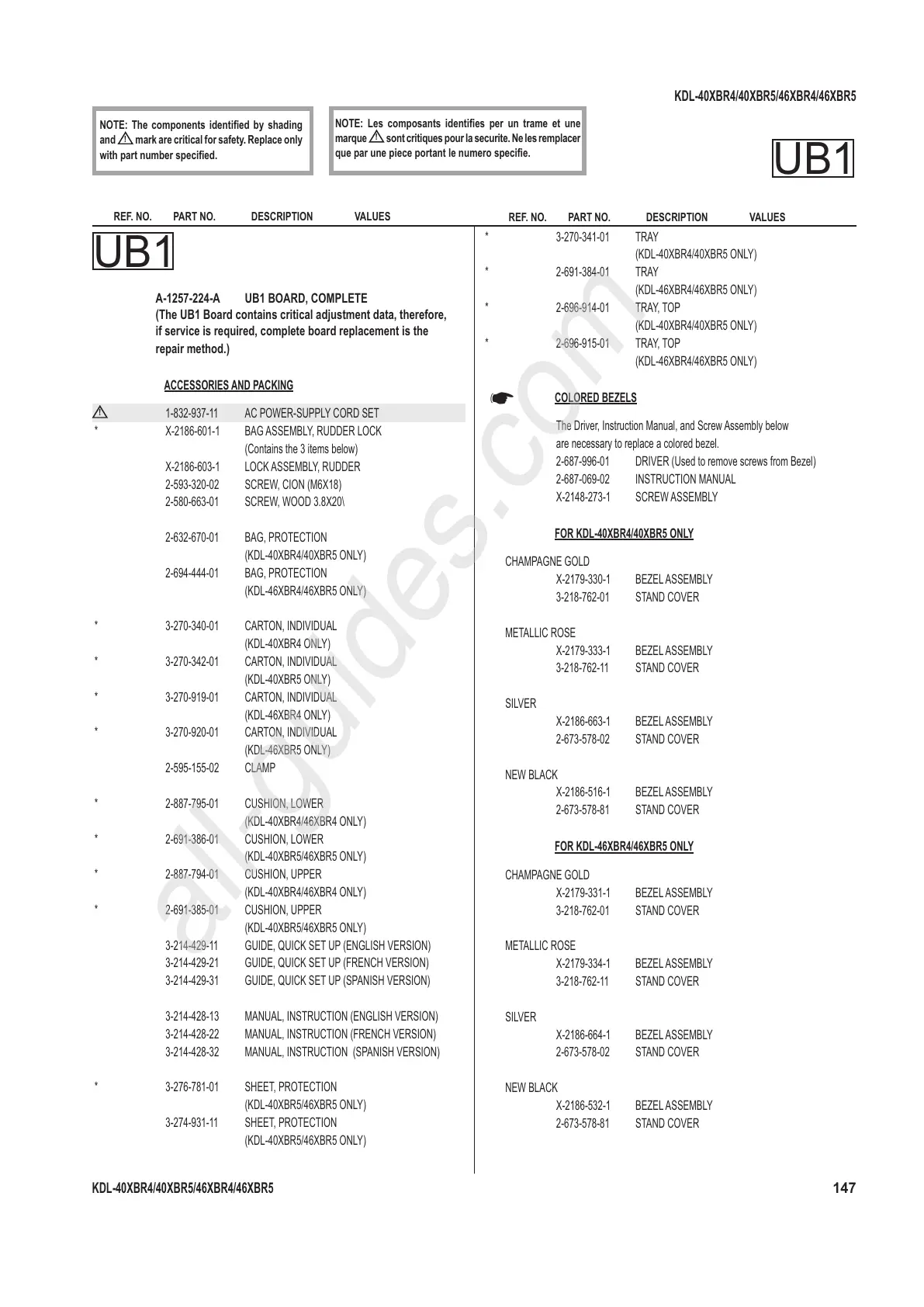

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
147
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
UB1
A-1257-224-A UB1 BOARD, COMPLETE
(The UB1 Board contains critical adjustment data, therefore,
if service is required, complete board replacement is the
repair method.)
ACCESSORIES AND PACKING
!
1-832-937-11 AC POWER-SUPPLY CORD SET
* X-2186-601-1 BAG ASSEMBLY, RUDDER LOCK
(Contains the 3 items below)
X-2186-603-1 LOCK ASSEMBLY, RUDDER
2-593-320-02 SCREW, CION (M6X18)
2-580-663-01 SCREW, WOOD 3.8X20\
2-632-670-01 BAG, PROTECTION
(KDL-40XBR4/40XBR5 ONLY)
2-694-444-01 BAG, PROTECTION
(KDL-46XBR4/46XBR5 ONLY)
* 3-270-340-01 CARTON, INDIVIDUAL
(KDL-40XBR4 ONLY)
* 3-270-342-01 CARTON, INDIVIDUAL
(KDL-40XBR5 ONLY)
* 3-270-919-01 CARTON, INDIVIDUAL
(KDL-46XBR4 ONLY)
* 3-270-920-01 CARTON, INDIVIDUAL
(KDL-46XBR5 ONLY)
2-595-155-02 CLAMP
* 2-887-795-01 CUSHION, LOWER
(KDL-40XBR4/46XBR4 ONLY)
* 2-691-386-01 CUSHION, LOWER
(KDL-40XBR5/46XBR5 ONLY)
* 2-887-794-01 CUSHION, UPPER
(KDL-40XBR4/46XBR4 ONLY)
* 2-691-385-01 CUSHION, UPPER
(KDL-40XBR5/46XBR5 ONLY)
3-214-429-11 GUIDE, QUICK SET UP (ENGLISH VERSION)
3-214-429-21 GUIDE, QUICK SET UP (FRENCH VERSION)
3-214-429-31 GUIDE, QUICK SET UP (SPANISH VERSION)
3-214-428-13 MANUAL, INSTRUCTION (ENGLISH VERSION)
3-214-428-22 MANUAL, INSTRUCTION (FRENCH VERSION)
3-214-428-32 MANUAL, INSTRUCTION (SPANISH VERSION)
* 3-276-781-01 SHEET, PROTECTION
(KDL-40XBR5/46XBR5 ONLY)
3-274-931-11 SHEET, PROTECTION
(KDL-40XBR5/46XBR5 ONLY)
* 3-270-341-01 TRAY
(KDL-40XBR4/40XBR5 ONLY)
* 2-691-384-01 TRAY
(KDL-46XBR4/46XBR5 ONLY)
* 2-696-914-01 TRAY, TOP
(KDL-40XBR4/40XBR5 ONLY)
* 2-696-915-01 TRAY, TOP
(KDL-46XBR4/46XBR5 ONLY)
☛
COLORED BEZELS
The Driver, Instruction Manual, and Screw Assembly below
are necessary to replace a colored bezel.
2-687-996-01 DRIVER (Used to remove screws from Bezel)
2-687-069-02 INSTRUCTION MANUAL
X-2148-273-1 SCREW ASSEMBLY
FOR KDL-40XBR4/40XBR5 ONLY
CHAMPAGNE GOLD
X-2179-330-1 BEZEL ASSEMBLY
3-218-762-01 STAND COVER
METALLIC ROSE
X-2179-333-1 BEZEL ASSEMBLY
3-218-762-11 STAND COVER
SILVER
X-2186-663-1 BEZEL ASSEMBLY
2-673-578-02 STAND COVER
NEW BLACK
X-2186-516-1 BEZEL ASSEMBLY
2-673-578-81 STAND COVER
FOR KDL-46XBR4/46XBR5 ONLY
CHAMPAGNE GOLD
X-2179-331-1 BEZEL ASSEMBLY
3-218-762-01 STAND COVER
METALLIC ROSE
X-2179-334-1 BEZEL ASSEMBLY
3-218-762-11 STAND COVER
SILVER
X-2186-664-1 BEZEL ASSEMBLY
2-673-578-02 STAND COVER
NEW BLACK
X-2186-532-1 BEZEL ASSEMBLY
2-673-578-81 STAND COVER
UB1
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
