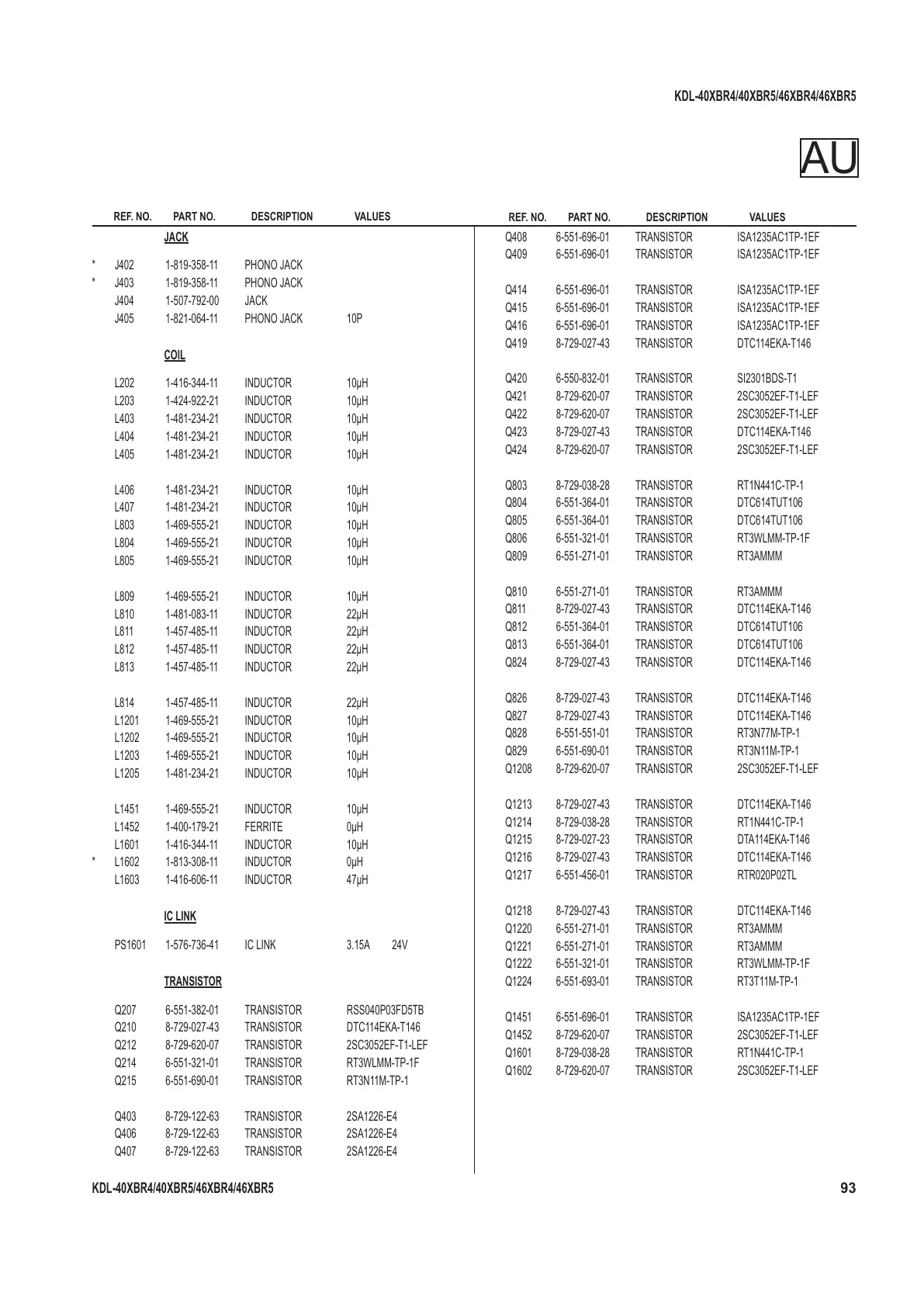

Sony RM-YD017 - Page 92

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
93
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
JACK
* J402 1-819-358-11 PHONO JACK
* J403 1-819-358-11 PHONO JACK
J404 1-507-792-00 JACK
J405 1-821-064-11 PHONO JACK 10P
COIL
L202 1-416-344-11 INDUCTOR 10µH
L203 1-424-922-21 INDUCTOR 10µH
L403 1-481-234-21 INDUCTOR 10µH
L404 1-481-234-21 INDUCTOR 10µH
L405 1-481-234-21 INDUCTOR 10µH
L406 1-481-234-21 INDUCTOR 10µH
L407 1-481-234-21 INDUCTOR 10µH
L803 1-469-555-21 INDUCTOR 10µH
L804 1-469-555-21 INDUCTOR 10µH
L805 1-469-555-21 INDUCTOR 10µH
L809 1-469-555-21 INDUCTOR 10µH
L810 1-481-083-11 INDUCTOR 22µH
L811 1-457-485-11 INDUCTOR 22µH
L812 1-457-485-11 INDUCTOR 22µH
L813 1-457-485-11 INDUCTOR 22µH
L814 1-457-485-11 INDUCTOR 22µH
L1201 1-469-555-21 INDUCTOR 10µH
L1202 1-469-555-21 INDUCTOR 10µH
L1203 1-469-555-21 INDUCTOR 10µH
L1205 1-481-234-21 INDUCTOR 10µH
L1451 1-469-555-21 INDUCTOR 10µH
L1452 1-400-179-21 FERRITE 0µH
L1601 1-416-344-11 INDUCTOR 10µH
* L1602 1-813-308-11 INDUCTOR 0µH
L1603 1-416-606-11 INDUCTOR 47µH
IC LINK
PS1601 1-576-736-41 IC LINK 3.15A 24V
TRANSISTOR
Q207 6-551-382-01 TRANSISTOR RSS040P03FD5TB
Q210 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q212 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q214 6-551-321-01 TRANSISTOR RT3WLMM-TP-1F
Q215 6-551-690-01 TRANSISTOR RT3N11M-TP-1
Q403 8-729-122-63 TRANSISTOR 2SA1226-E4
Q406 8-729-122-63 TRANSISTOR 2SA1226-E4
Q407 8-729-122-63 TRANSISTOR 2SA1226-E4
Q408 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q409 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q414 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q415 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q416 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q419 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q420 6-550-832-01 TRANSISTOR SI2301BDS-T1
Q421 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q422 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q423 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q424 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q803 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q804 6-551-364-01 TRANSISTOR DTC614TUT106
Q805 6-551-364-01 TRANSISTOR DTC614TUT106
Q806 6-551-321-01 TRANSISTOR RT3WLMM-TP-1F
Q809 6-551-271-01 TRANSISTOR RT3AMMM
Q810 6-551-271-01 TRANSISTOR RT3AMMM
Q811 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q812 6-551-364-01 TRANSISTOR DTC614TUT106
Q813 6-551-364-01 TRANSISTOR DTC614TUT106
Q824 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q826 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q827 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q828 6-551-551-01 TRANSISTOR RT3N77M-TP-1
Q829 6-551-690-01 TRANSISTOR RT3N11M-TP-1
Q1208 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1213 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q1214 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q1215 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q1216 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q1217 6-551-456-01 TRANSISTOR RTR020P02TL
Q1218 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q1220 6-551-271-01 TRANSISTOR RT3AMMM
Q1221 6-551-271-01 TRANSISTOR RT3AMMM
Q1222 6-551-321-01 TRANSISTOR RT3WLMM-TP-1F
Q1224 6-551-693-01 TRANSISTOR RT3T11M-TP-1
Q1451 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q1452 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q1601 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q1602 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
