DVP-NC615/NC655P
4-55 4-56

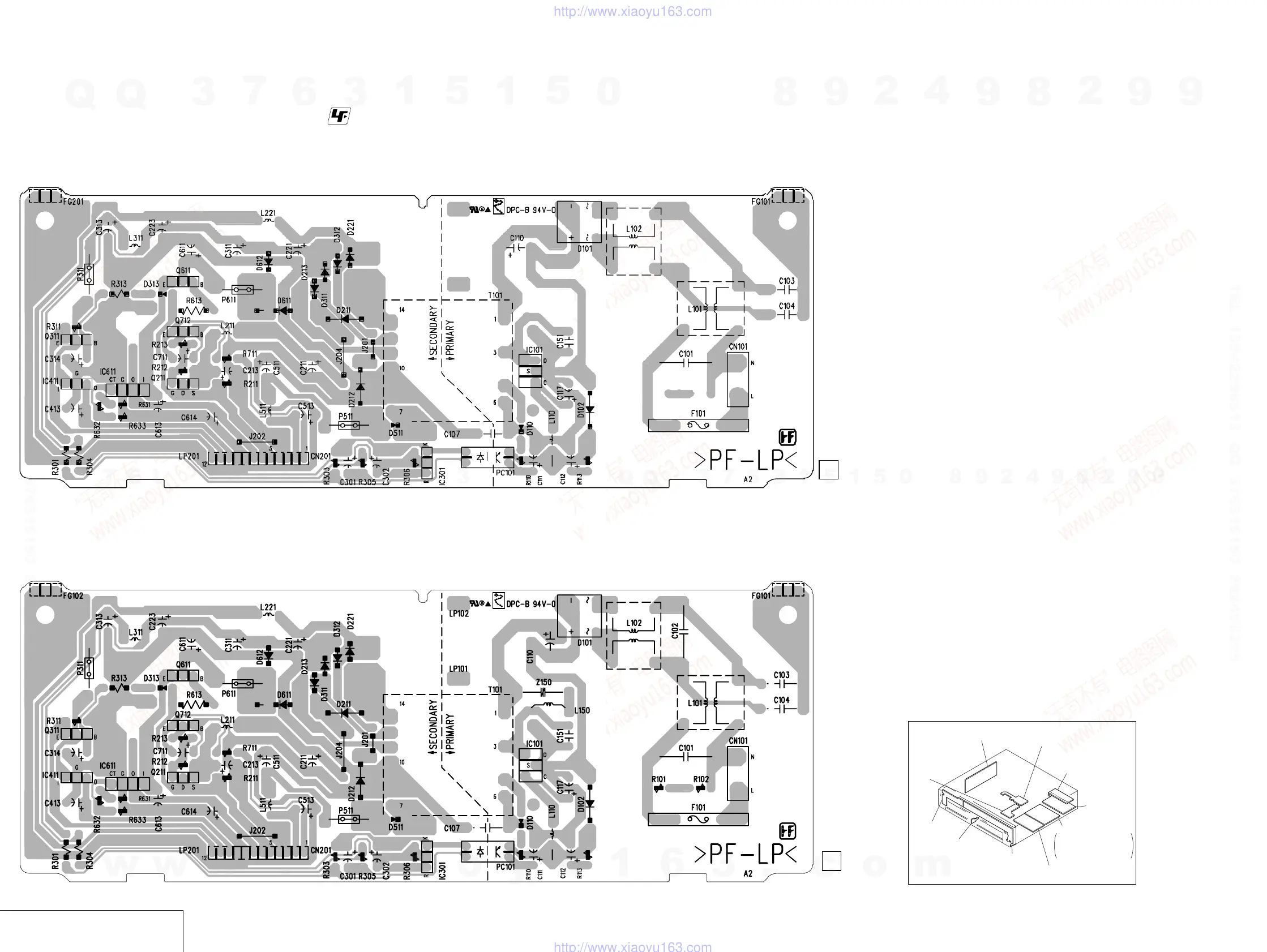

HS10S1U, HS10S1F (SWITCHING REGULATOR) PRINTED WIRING BOARD
• : Uses unleaded solder.
SWITCHING REGULATOR
POWER BLOCK (HS10S1U, HS10S1F)
POWER BOARD (SW REG)
(HS10S1U)
(NC615: US,CND/NC655P)
1-468-641-
11
POWER BOARD (SW REG)
(HS10S1F)
(NC615: PX,E,AEP,UK,AUS,SP)
1-468-642-
11
IF-091 board
(IF COM)
PL-031 board
(LED)
FR-187 board
(FUNCTION SW/LED)
MD-94 board
(MD INTERFACE)
CN-158 board
(CONNECTOR)
MB-103 board
DVD/CD RF AMP, DIGITAL SERVO,
MOTOR DRIVE, AV DECODER,
SDRAM, SYSTEM CONTROL,
AUDIO DAC, PLL, I/P CONVERTER,
VIDEO ENCODER
AV-062 board
(AUDIO/VIDEO OUT)
ER-14 board
(LINE1 OUT)
SE-130 board
(SENSOR)
POWER BLOCK
(SWITCHING REGULATOR)
