Sony RMT-D187A - MV-60 Board Wiring (System;Servo;Video;Audio)

DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP

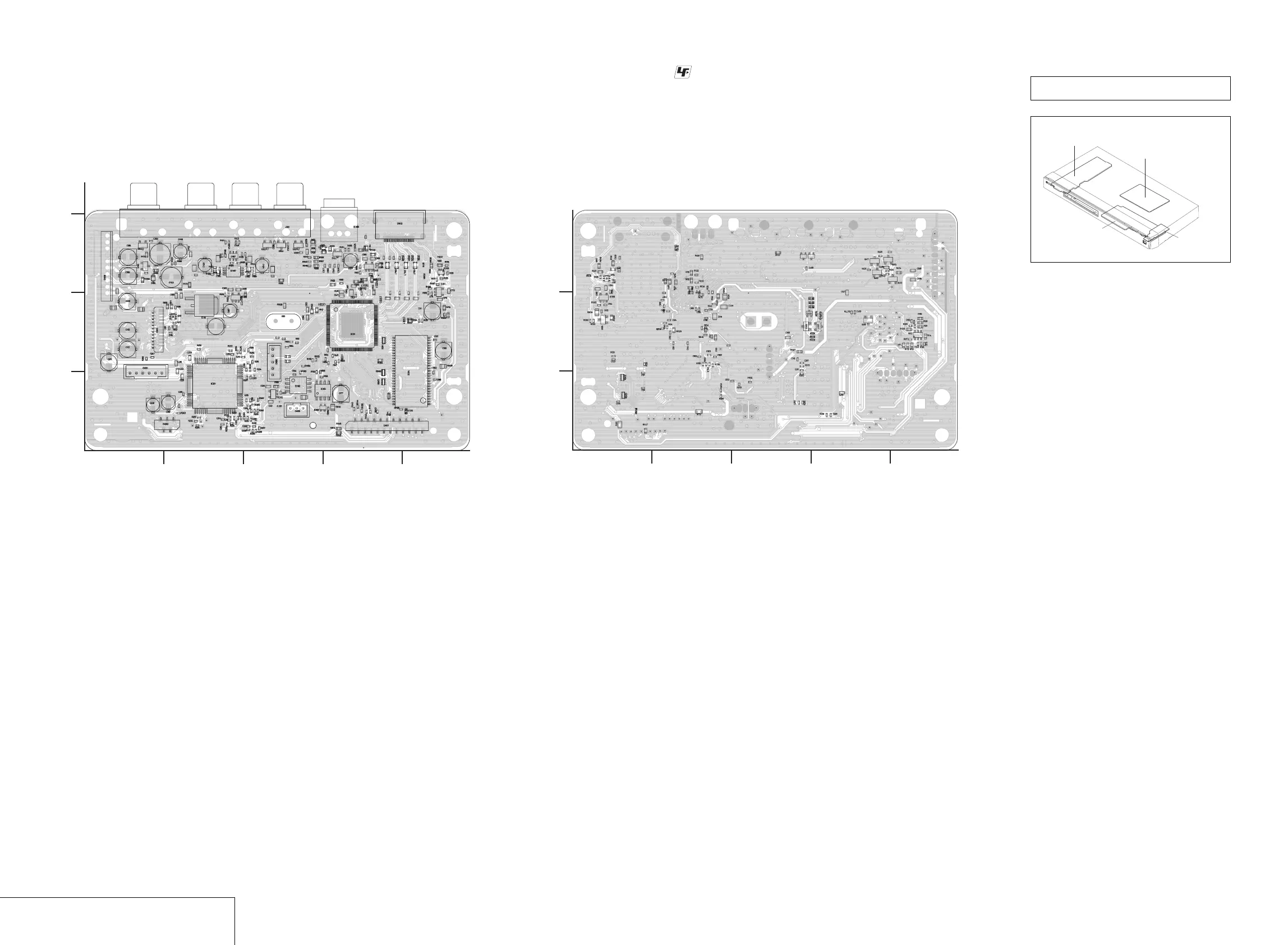

MV-60 (SYSTEM, SERVO, VIDEO, AUDIO) PRINTED WIRING BOARD
Non Euro Model
(DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718HP/NS728HP)
NS718H:CND,AUS
NS728H:AUS
• : Uses unleaded solder.
MV-55 BOARD
SIDE A
IC102 A-3
IC103 A-3
IC104 A-5
IC105 C-4
IC105 C-4
IC106 C-5
IC107 B-2
IC107 C-3
IC108 A-4
IC110 B-2
IC111 C-5
IC112 A-3
IC112 A-3
IC201 A-2
IC406 C-4
IC407 C-2
IC407 C-2
D311 C-1
D312 C-3
D313 C-3
D314 C-3
D401 C-1
D403 C-4
Q101 B-2
Q401 C-1
Q407 C-2
Q411 C-4
Q411 C-4
SIDE B
IC109 B-1
D101 B-4
Q102 B-5
Q103 B-4
Q104 C-1
Q105 C-1
Q106 B-3
Q107 B-3
Q108 B-3
Q402 C-4
Q403 C-5
Q405 C-5
Q417 C-4
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
A
B
C
1
2
5
43
A
B
C
1
2
5
43
MV-60 BOARD (SIDE A) MV-60 BOARD (SIDE B)
FB-224 Board
(USB)
(DVP-NS728H,NS728HP)
MV-62 Board (DVP-NS718H:EXCEPT CND,AUS/NS728H:AUS)
MV-60 Board (DVP-NS611HP/NS710H/NS710HP/NS717HP/
NS718H:CND,AUS/NS728HP/NS728H:AUS)
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
IF-163 Board
(INTERFACE)
Switching Regulator Board
SRV2187UC (DVP-NS611HP/NS718H:CND/
NS717HP/NS710HP:MX2)
SRV2186WW (DVP-NS710H:PX3,NS718HP,
NS718H:EXCEPT CND,NS728H,NS728HP)
4-164-15
SYSTEM, SERVO, VIDEO, AUDIO
MV-60
