Sony RMT-D246P - DVD Drive; DC Fan

2-4

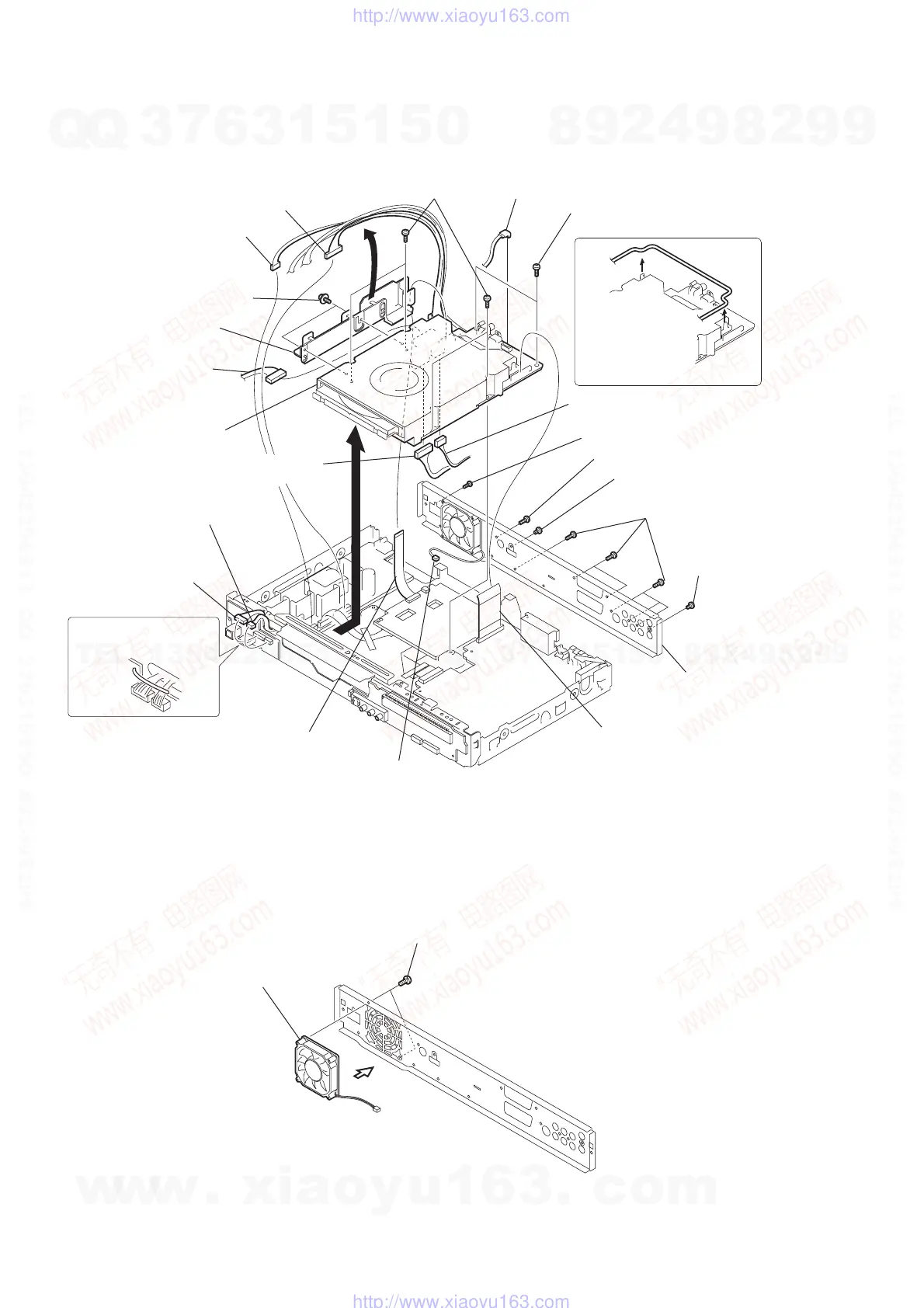

2-6. DC FAN
2-5. DVD DRIVE
2 Connector (10p)
(CN102)
(except GX350)
3 Connector (6p)
(CN101)
w; Connector (10p)
(CN5201)
wa Connector (6p)
(CN5101)
qj Connector (2p)
(CN103)
qd Flexible flat cable (40core)
(CN2301)
qk Rear panel
8 Screw (+P3)
9 Screw (+BV3)
q; Screw (+P3 × 4)
qs Screw (+P3 × 4
)
qa Six screws (+BV3)
7 Flexible flat cable (28core)
(CN4701)
(Type AS, BS only)
4 Connector (4p)
(CN203)
wf Connector (13p)
(CN4501)
ws Two screws
(+PSW3 × 6)
wd Clamp (L35)
wg DVD drive
5 Connector (13p)
(CN201)
qg Two screws
(+BV3)
qh Four screws
(+BV3)
qf Remove the harness.
6 Harness (7p)
(CN5604)
ql
1 The wire pin that holds
the harness is set up.
1 Two screws
(+BV3)
2 DC fan
Air flow
