Sony RMT-D246P - HARD DISK (Except GX350); Av-114;118 Board

2-5

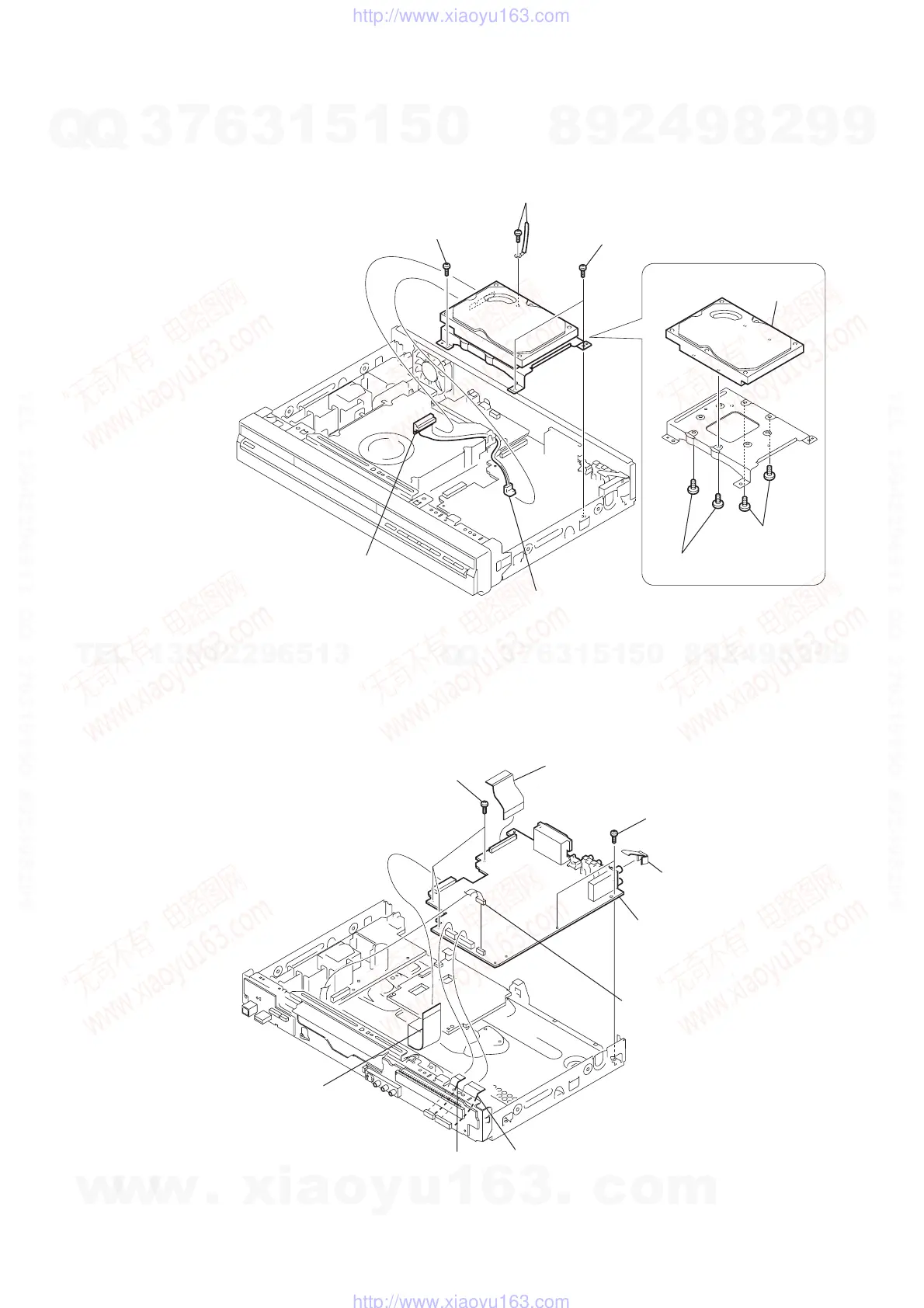

2-7. HARD DISK (Except GX350)
2-8. AV-114/118 BOARD
1 Two screws (+BV3)
2 Screw (+BV3)
5 Harness (7pin)
(power)
4 Harness (4pin)
(data)
6 Two screws
6-32UNCX4(SG)
7 Two screws
6-32UNCX4(SG)
8 Hard disk
3 Screw (+BV3)
and wire clamp
3 Flexible flat cable
(24core) (CN302)
1 Flexible flat cable
(11core) (CN106)
2 Flexible flat cable
(17core) (CN105)
9 AV-114/118 board
6 Connector (5core) CN301
(Type CS, DS only)
5 Earth plate
7 Two screws
(+BV3)
8 Two screws
(+BV3)
4 Flexible flat cable (FRA-006)
(40core)(CN101)
