RDR-GX350/HX650/HX750/HX950
• : Uses unleaded solder.

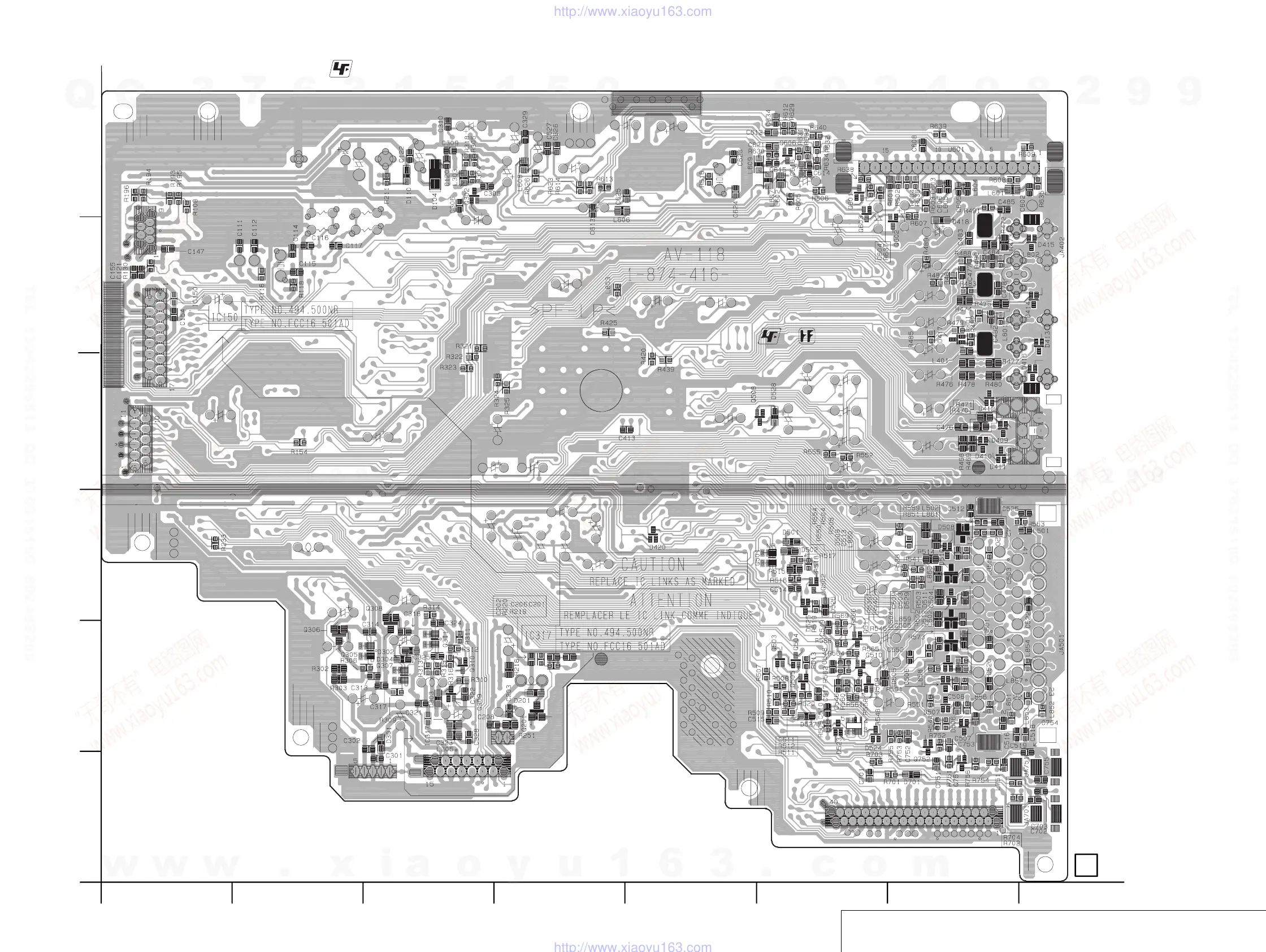

AV-118 BOARD (SIDE B)
D104 A-3
D201 E-4
D301 E-3
D303 E-3
D304 E-3
D409 C-7
D410 C-7
D411 C-7
D413 C-8
D414 B-8
D415 B-8
D416 C-7
D418 A-7
D420 D-5
D503 D-7
D504 E-7
D505 E-7
D506 E-7
D508 D-7
D509 D-6
D510 D-7
D512 E-7
D526 D-6
D527 E-6
D528 C-6
D529 D-7
IC406 E-6
Q201 E-4
Q302 A-3
Q305 E-2
Q306 E-2
Q307 E-3
Q308 E-3
Q309 E-3
Q310 E-3
Q311 E-3
Q408 D-4
Q502 D-6
Q503 E-6
Q504 E-6
Q505 E-6
Q508 C-6
Q509 E-6
Q510 E-6
Q511 E-6
Q601 A-6
Q602 B-7
Q606 A-6
Q751 F-7
Q752 F-7
IT CONTROLLER, IR, POWER/FAN CONT., VIDEO/AUDIO, EURO, TUNER
AV-118
CN101
CN201
CN301
CN302
CN103
CN105
CN106
IC406
AV-118 BOARD (SIDE B)
