8-2

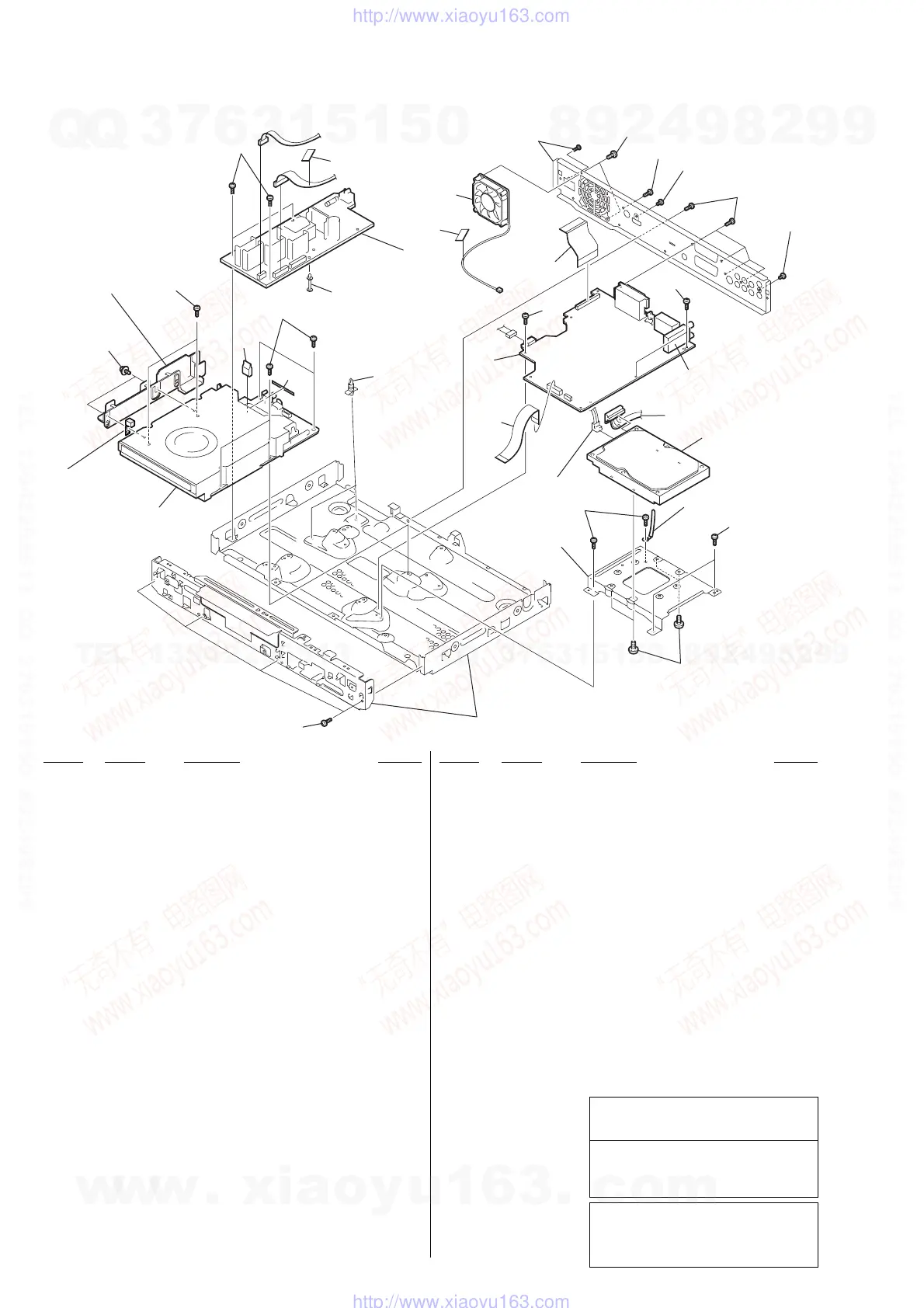

8-1-2. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-077-331-01 +BV3 (3-CR)
52 A-1556-072-A HDD(SG-NIGHTHAWK-S (160GB)-GA)
(HX780: AUS, TH, SP, E)
52 A-1544-206-A HDD(W-XL160-S (160GB)-E)ASSY
(HX680/HX780: AEP, UK, RUS/HX785)
52 A-1544-207-A HDD(W-XL160PMR-S (250GB)-E)AS
(HX980: AEP, RUS)
52 A-1544-209-A HDD(W-XL160-S(160GB)-GA)ASSY (HX780:CND)
52 A-1544-210-A HDD(SG-SUPERHAWK-S (250GB)-GA)
(HX980: AUS, TH, SP)
53 7-682-947-01 SCREW +PSW 3X6
54 4-237-065-01 CLAMP (L35)
055 1-474-048-11 REGULATOR,SWITCHING(SRV2058EK)
(HX780: AUS, SP, TH/HX980: AUS, SP, TH)
055 1-474-048-21 REGULATOR, SWITCHING (SRV2101EK)
(HX680/HX780: AEP, UK, RUS/HX785/HX980: AEP, RUS/HX1080)
055 1-474-049-11 REGULATOR, SWITCHING (SRV2059WW)
(HX780: CND, E)
56 1-787-625-41 FAN, DC
57 1-834-075-21 CABLE, FLEXIBLE FLAT (FRA-006)
58 3-077-331-31 +BV3 (3-CR)
* 59 1-835-081-11 CABLE, FLEXIBLE FLAT (FAR-008)
60 1-965-191-21 HARNESS (RH-059)
61 A-1520-882-A AV-133 (AG) COMPL
(HX680/HX780: AEP2, UK, RUS/HX980: AEP2, RUS/HX1080)
61 A-1520-884-A AV-133 (BG) COMPL
(HX780: AEP1/HX785/HX980: AEP1/HX1080)
61 A-1543-611-A AV-134 (CS) COMPL (HX780: CND, E)
61 A-1550-353-A AV-134 (AS) COMPL
(HX780: AUS/HX980: AUS)
61 A-1550-355-A AV-134 (BS) COMPL
(HX780: SP, TH/HX980: SP, TH)
* 62 3-087-220-01 TAPE, NON-HALOGENE
9 63 A-1443-029-A TM SERVICE PART
(HX680/HX780: AEP, UK, RUS, CND/HX785/HX980/HX1080)
9 63 A-1543-920-A DVR-U13HDD ASSY S COMPL
(HX680/HX780: AEP, UK, RUS, CND/HX785/HX980: AEP, RUS/HX1080)
64 2-684-970-01 SHIELD TAPE 1 (A) (HX780: CND)
65 3-268-333-02 SHIELD, GASKET (HX780: CND)
U601 1-693-741-11 TUNER (TMFE2-407A)
(HX680/HX780: AEP, UK, RUS, AUS/HX785/HX980: AEP, RUS, AUS/HX1080)
U601 1-693-742-11 TUNER (TMQH4-706A) (HX780: CND, E)
U601 1-693-744-11 TUNER (TMQZ2-453A)
(HX780: TH, SP/HX980: TH, SP)
not supplied
not supplied
not supplied
not supplied
U601
not supplied
not supplied
not supplied
not supplied
(for CND model only)
not supplied
not supplied
not
supplied
51
63
52
53
54
55
56
57
58
58
58
62
51
51
51
60
51
51
51
61
59
51
62
65
64
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
52 A-1544-208-A HDD(W-XL160PMR-S (500GB)-E)AS (HX1080)
