Sony RMT-D249P - Upper Case; Tray Cover Assembly

2-2

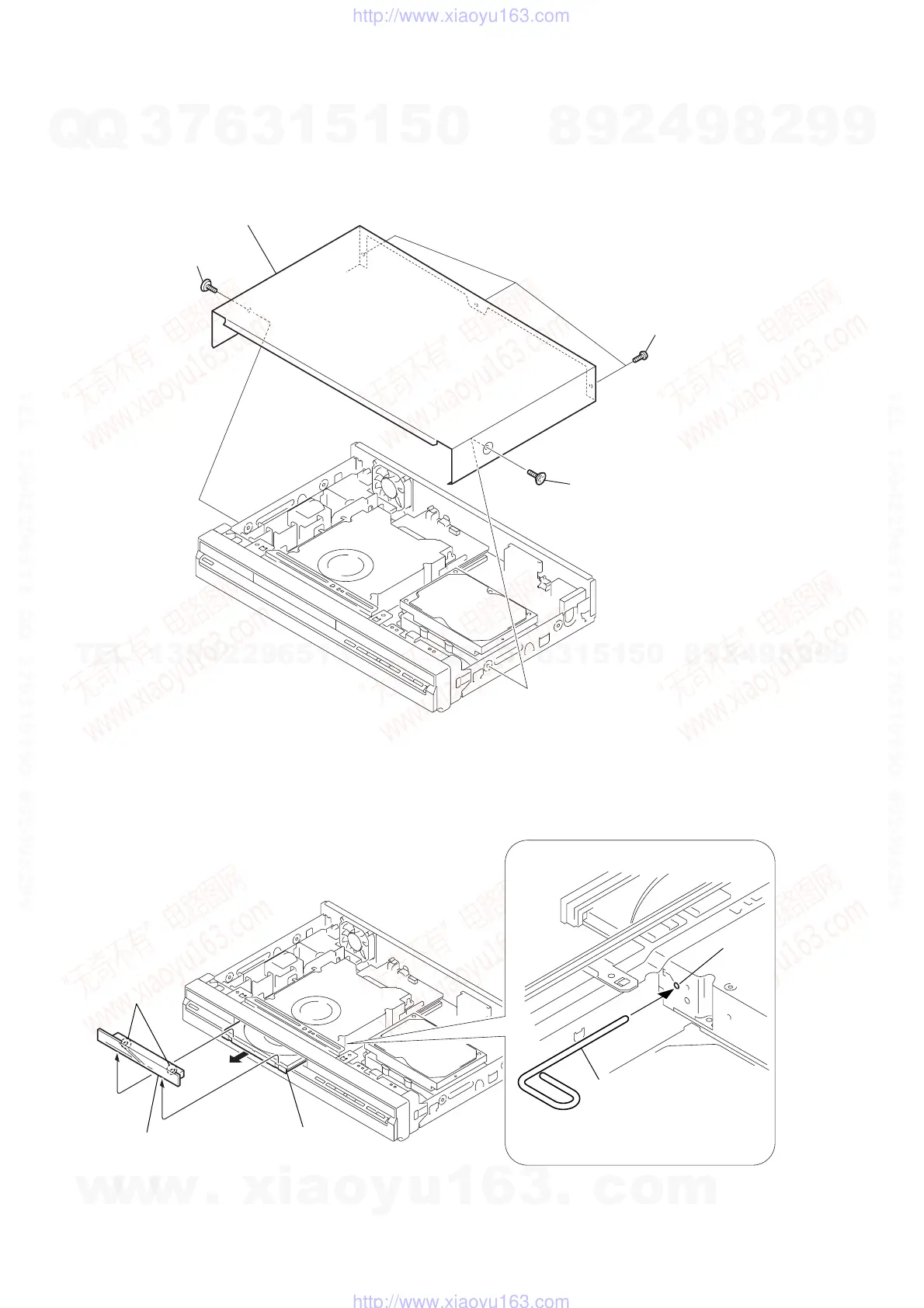

NOTE: Follow the disassembly procedure in the numerical order given.
2 Tapping screw
1 Tapping screw
3 Three screws
(special front point screw
)
4 Upper case
1 The stiff wire
3 Two claws
4 Tray cover assembly
2 Open the tray
Hole
2-1. UPPER CASE
2-2. TRAY COVER ASSEMBLY
