8-1
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Color Indication of Appearance Parts
RDR-HX680/HX780/HX785/HX980/HX1080
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
•Abbreviation
AUS: Australian model
CND : Canadian model
SP : Singapore model
TH : Thailand model
RUS : Russian model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.

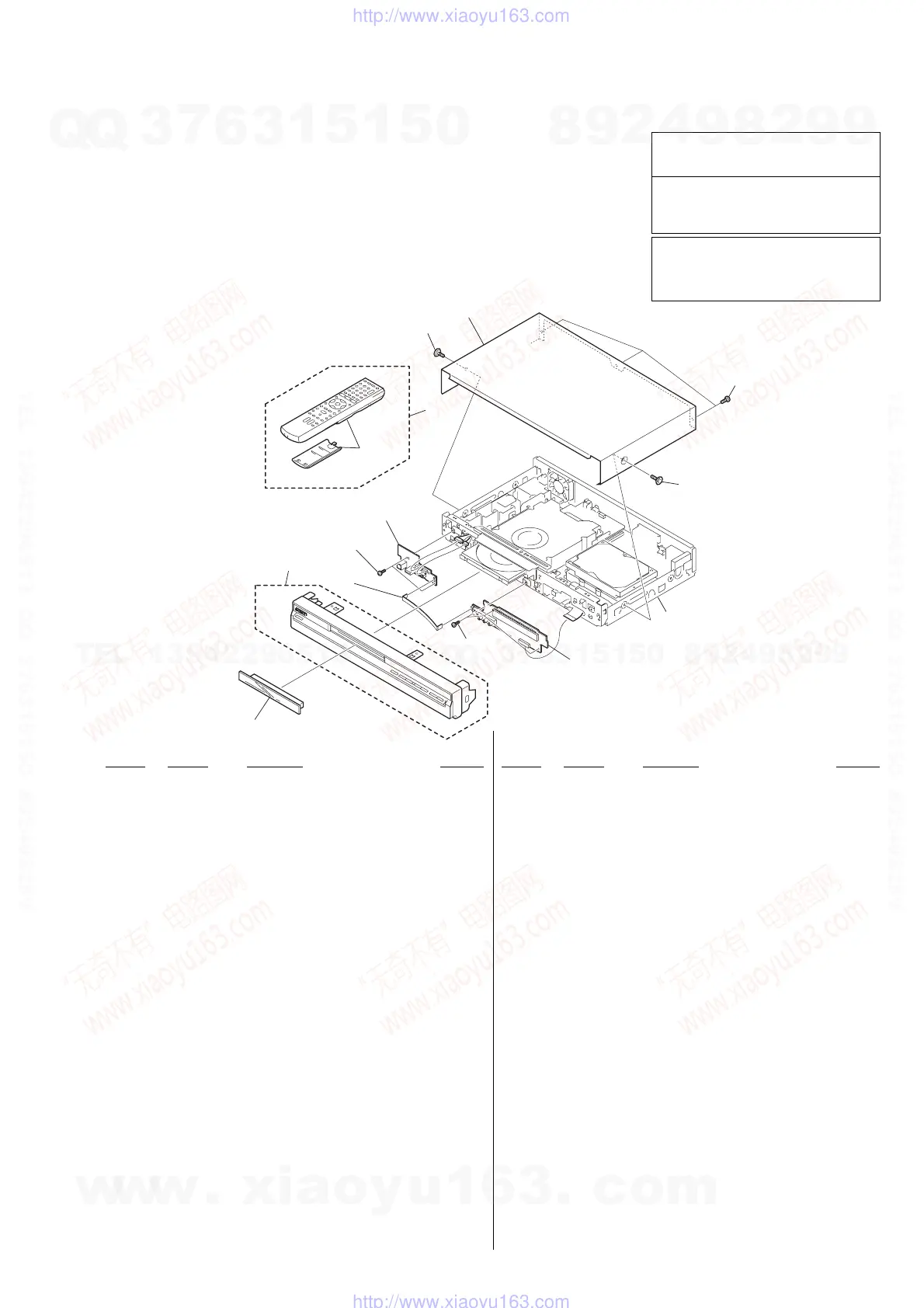

8-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-2187-501-1 COVER ASSY (AT), TRAY
2 A-1526-405-A PANEL BLOCK ASSY, FRONT (BLACK)
(HX780: AEP1)
2 A-1526-439-A PANEL BLOCK ASSY, FRONT (SILVER)
(HX780: AEP1)
2 A-1526-467-A PANEL BLOCK ASSY, FRONT (BLACK)
(HX780: AEP2, UK, RUS, AUS)
2 A-1526-476-A PANEL BLOCK ASSY, FRONT (SILVER)
(HX780: AEP2, RUS, AUS, SP, TH)
2 A-1526-572-A PANEL BLOCK ASSY, FRONT (BLACK)
(HX980: AEP1)
2 A-1526-584-A PANEL BLOCK ASSY, FRONT (BLACK)
(HX980: AEP2, RUS, AUS, SP, TH)
2 A-1526-691-A PANEL BLOCK ASSY, FRONT (BLACK) (HX1080)
2 A-1526-696-A PANEL BLOCK ASSY, FRONT (BLACK) (HX680)
2 A-1526-751-A PANEL BLOCK ASSY, FRONT (SILVER) (HX680)
2 A-1528-246-A PANEL BLOCK ASSY ,FRONT (BLACK)
(HX780: CND)
2 A-1528-247-A PANEL BLOCK ASSY, FRONT (BLACK)
(HX780: E)
2 A-1543-620-A PANEL BLOCK ASSY, FRONT (BLACK) (HX785)
2 A-1543-624-A PANEL BLOCK ASSY, FRONT (SILVER) (HX785)
3 1-834-076-21 CABLE, FLEXIBLE FLAT (FLR-010)
4 3-077-331-01 +BV3 (3-CR)
5 3-070-883-61 SCREW, TAPPING (SILVER)
(HX680/HX780: AEP, RUS, AUS, SP, TH/HX785)
5 3-070-883-71 SCREW, TAPPING (BLACK)
(HX680/HX780: AEP, UK, RUS, AUS, SP, CND, E/HX785/HX980/HX1080)
6 2-899-645-01 CASE, UPPER (BLACK)
(HX680/HX780: AEP, UK, RUS/HX785/HX980: AEP, RUS/HX1080)
6 2-899-645-21 CASE, UPPER (SILVER)
(HX680/HX780: AEP, RUS/HX785)
6 A-1554-330-A CASE BLOCK ASSY(SERVICE USE) (BLACK)
(HX780: AUS, SP, CND, E/HX980: AUS, SP, TH)
6 A-1319-691-A CASE BLCOK ASSY(SERVICE USE) (SILVER)
(HX780: AUS, SP, TH)
7 3-076-563-11 SCREW, SPECIAL FRONT POINT
8 1-480-171-12 REMOTE COMMANDER (RMT-D246P)
(HX780: CND, E)
8 1-480-697-11 REMOTE COMMANDER (RMT-D250P)
(HX780: AEP1/HX785/HX980: AEP1/HX1080)
8 1-480-701-11 REMOTE COMMANDER (RMT-D249P)
(HX680/HX780: AEP, UK, RUS, AUS, SP, TH/HX980: AEP2, RUS, AUS, SP, TH)
9 A-1520-886-A FL-184 (AG) COMPL
(HX680/HX780: AEP, UK, RUS/HX785/HX980: AEP, RUS/HX1080)
9 A-1543-613-A FL-184 (AS) COMPL
(HX780: AUS, SP, TH, CND, E/HX980: AUS, SP, TH)
10 A-1520-888-A FR-291 (AG) COMPL
(HX680/HX780: AEP, UK, RUS/HX785/HX980: AEP, RUS/HX1080)
10 A-1543-615-A FR-291 (AS) COMPL
(HX780: AUS, SP, TH, CND, E/HX980: AUS, SP, TH)
not
supplied
8
4
9
3
4
10
1
Chassis section
7
6
5
5
2
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
