Sony RMT-VB201D - Panel Front and FR PWB; Wifi and MB PWB

2-2
2

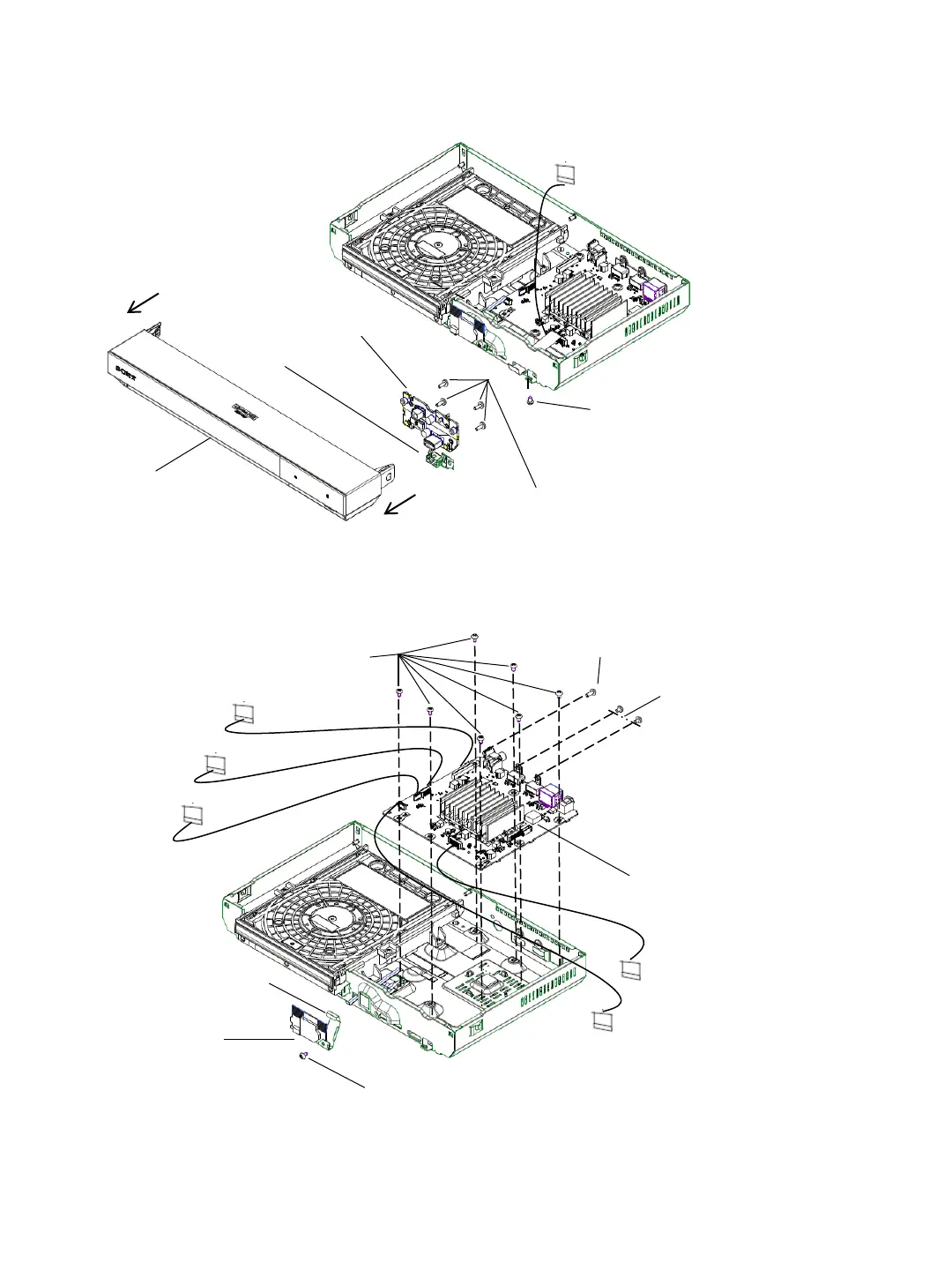

2-4. WIFI & MB PWB
2-3. PANEL FRONT & FR PWB
3.
Panel,
Front
1.
Flexible Flat Cable (FIM-1011)
(CN705)
2.
One Screw +BV3 (3-CR)
(tightening torque = 6.5 to 7.5kgf*cm)
4.
Four Screw +BVTP2.6 (3CR)
(tightening torque = 4.5 to 5.5kgf*cm)
FR PWB
6.
Earth, Plate (USB)
5.
2.
One Screw +BV3 (3-CR)
(tightening torque = 6.5 to
7.5kgf*cm)
1.
Flexible Flat Cable (WIF-1008)
(CN904)
4.
Card, Wireless Lan
10.
One Screw +BTP 3X8 TYPE2 N-S
(tightening torque = 6.5 to 7.5kgf*cm)
9.
Two Screw +B 3X4
(tightening torque = 3.5 to 4.5kgf*cm)
6.
Flexible Flat Cable (LDG-009)
(CN1301)
7.
Flexible Flat Cable (SPD-008)
(CN1302)
8.
Flexible Flat Cable (OPT-1007)
(CN1201)
11.
Seven Screw +BV3 (3-CR)
(tightening torque = 6.5 to 7.5kgf*cm)
12.
MB PWB
3.
EMC, Plate
5.
Flexible Flat Cable (FIM-1011)
(CN705)
