Sony RMT-VB201D - Repair Parts List; Exploded Views; Case Section

7-1
SECTION 7
REPAIR PARTS LIST
7-1. EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Items marked “*” are not stocked since they are seldom
required for routine service. Some delay should be
anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories and packing materials are given in the
last of the electrical parts list.
Abbreviation :
UK : UK Model
AEP : AEP Model
MX : Mexican Model
SP : Singapore Model
CH : Chinese Model
RUS : Russian Model
AUS : Australian/NZ Model
E : Latin America Model
TW : Taiwan Model
CL : Chille Model
TH : Thailand Model
IN : India Model
EA : EA Model
KS : Saudi Arabia Model
US : US Model
CND : Canadian Model
AUS : Australian/NZ Model
PX : PX Model
BR : Brazilian Model

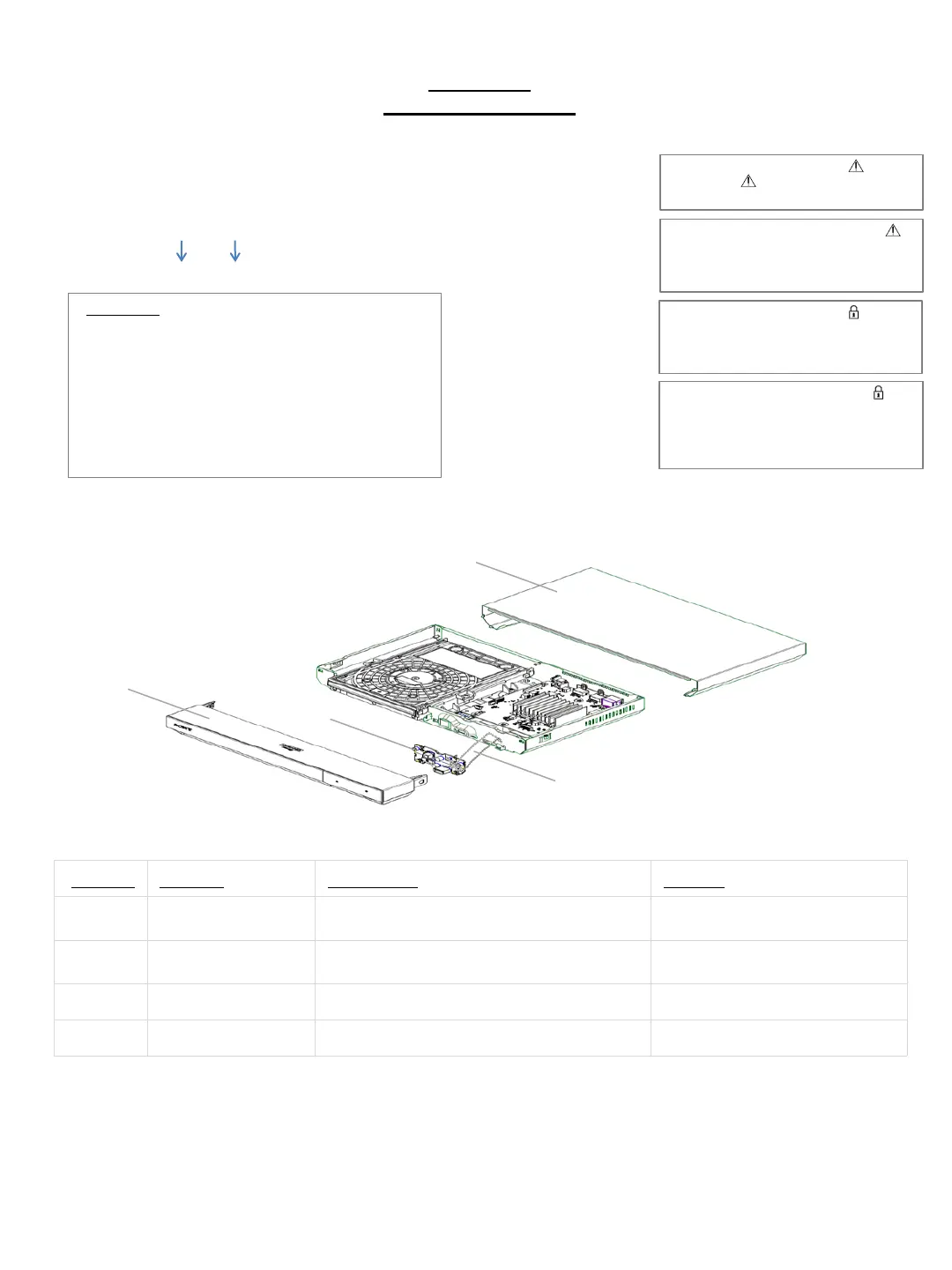

7-1-1 CASE SECTION
ns: not supplied
The components identified by mark or dotted
line with mark are critical for safety.
Replace only with part number specified.
Les composants iden tifi és par une marque
sont critiquens pour la sécurité.
Ne les remplace r que par une pièce portant le
numéro spécifi é.
The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque
contiennent des informations confi dentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et
/ ou réparé.
Ref. No. Part No. Description Remark
*1
X-2595-013-2 PANEL ASSY, FRONT
2
A-2188-780-A SERVICE ASSY, FR
*3
4-698-379-02 CASE, UPPER
4
1-912-253-11 FLEXIBLE FLAT CABLE (FIM-1011)
1
2
3
4
