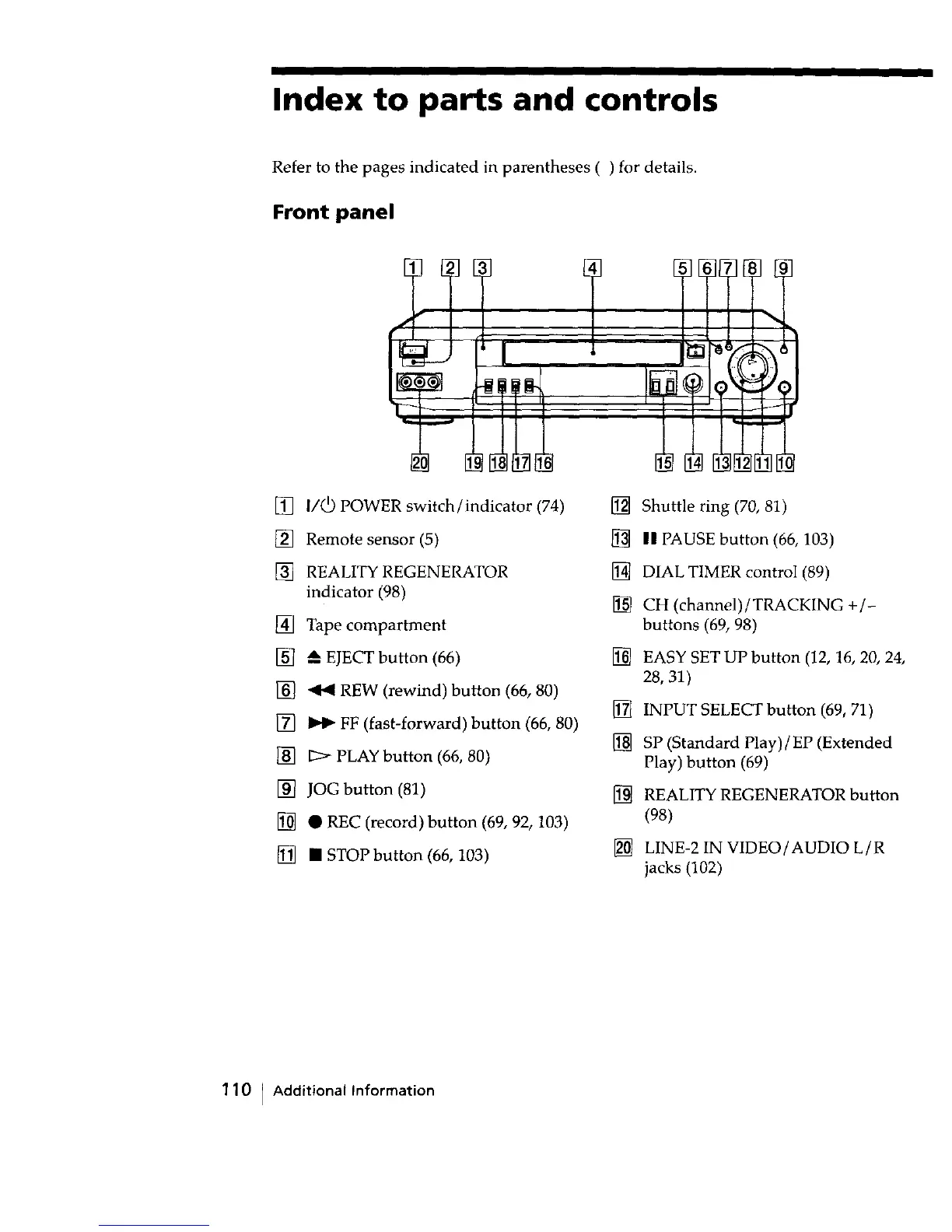

Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
[] I/_ POWER switch/indicator (74)
[] Remote sensor (5)
[] REALITY REGENERATOR
indicator (98)
[] Tape compartment
[] A EJECT button (66)
[] _ REW (rewind) button (66, 80)
[] _ FF (fast-forward) button (66, 80)
[] _ PLAY button (66, 80)
[] JOG button (81)
[] • REC (record) button (69, 92, 103)
[] • STOP button (66, 103)
[] Shuttle ring (70, 81)
[] II PAUSE button (66, 103)
[] DIAL TIMER control (89)
[] CH (channel)/TRACKING +/-
buttons (69, 98)
[] EASY SET UP button (12, 16, 20, 24,
28, 31)
[] INPUT SELECT button (69, 71)
[] SP (Standard Play) / EP (Extended
Play) button (69)
[] REALITY REGENERATOR button
(98)
[] LINE-2 IN VIDEO/AUDIO L/R
jacks (102)
