Sony SLV-E730VC - Disassembly Procedures

2-1
Note: Follow the disassembly procedure in the numerical order given.

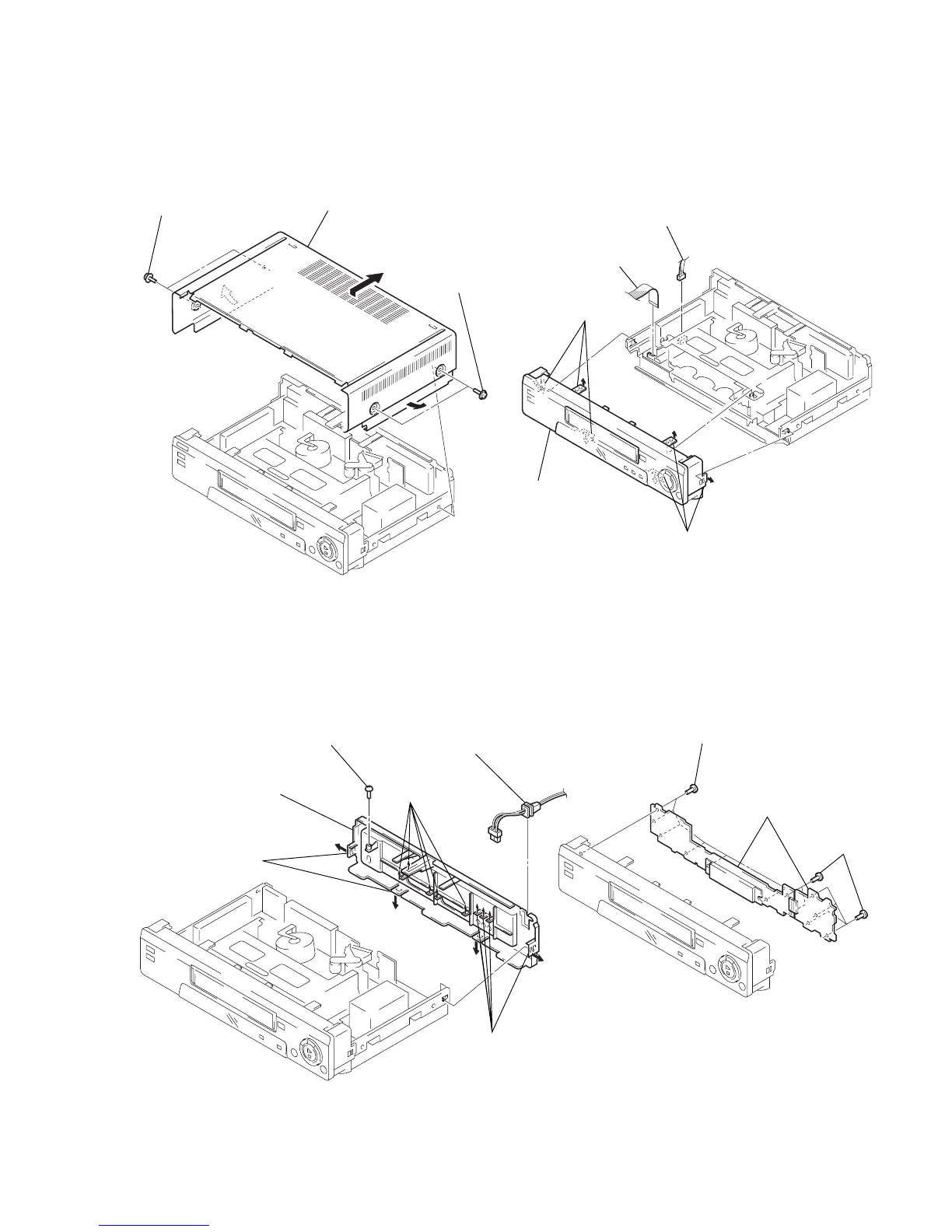

2-1. UPPER CASE REMOVAL 2-3. FRONT PANEL SECTION REMOVAL
2-2. REAR PANEL REMOVAL
2-4. FR-127, DM-72 BOARD REMOVAL
SECTION 2
DISASSEMBLY
SLV-E580/E630/E727/E730/E735/E780
1 Two screws
(Case3 TP2)
2 Two screws
(Case3 TP2)
3 Upper case
3 Two claws
6 Rear panel
5 Five claws
4 Five claws
2 Screw
(B3)
1 Power cord
(CN101)
1 Flat wire
(CN164)
3 Three claws
4 Front panel
section
2 Three claws
1 Connector (CN161)
(E580/E780)
2 Six
screws
3 FR-127, DM-72
board
1 Six screws
