Sony SLV-E730VC - Mechanism Chassis Assembly (3)

8-6
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

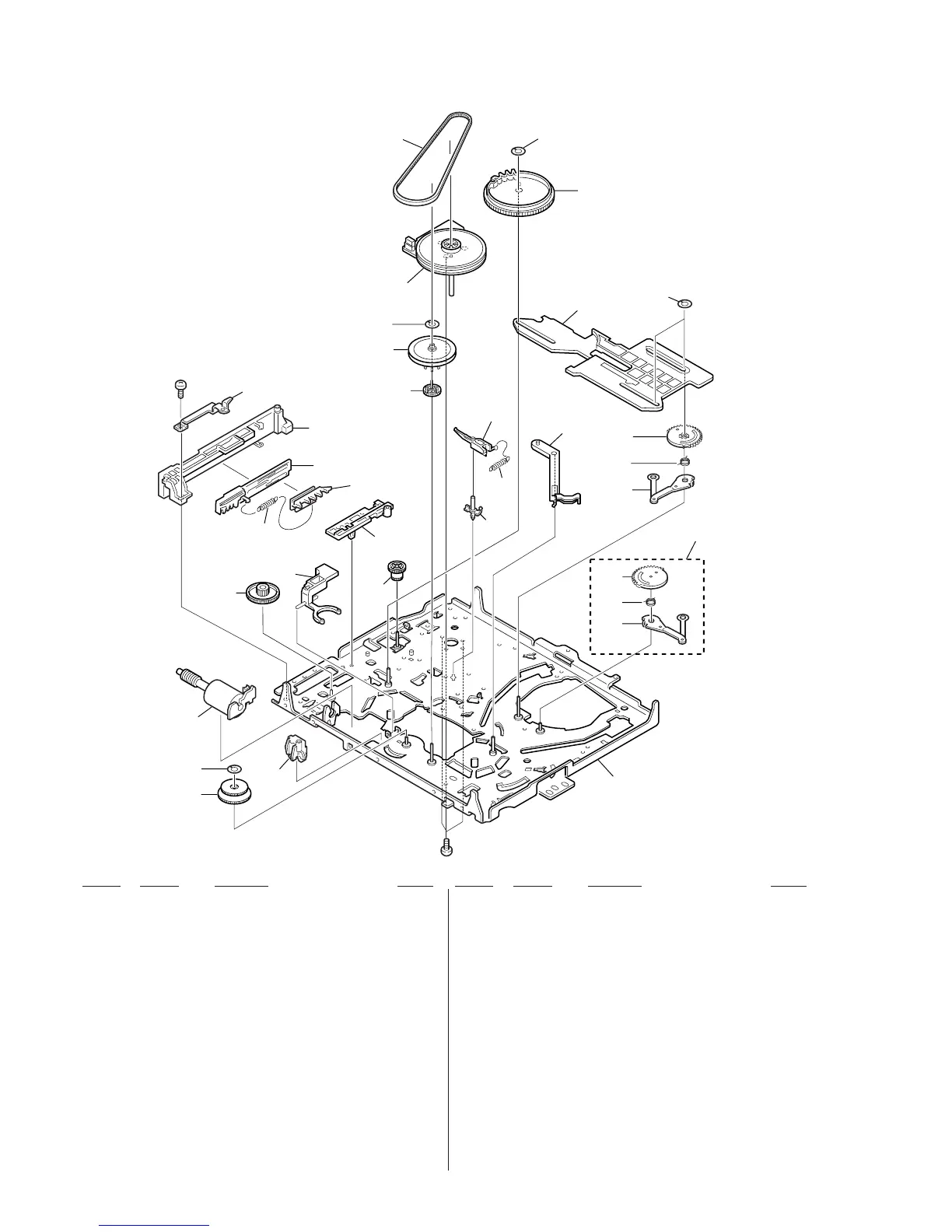

8-1-5. MECHANISM CHASSIS ASSEMBLY (3)
801 3-977-437-01 RETAINER, CAM MOTOR
802 X-3947-584-1 ASSY, REEL DIRECT
803 3-977-443-01 WASHER, STOPPER
804 3-977-438-01 WORM - WHEEL
805 3-977-506-01 ARM, LIMITTER SELECTION
806 3-977-444-01 GEAR, PINCH TRANSMISSION
807 3-977-515-01 GUIDE, FL SLIDER
808 3-977-517-01 PLATE, SLIDE, FL
809 3-977-519-01 SPRING, TENS. (LIMIT, FL)
810 3-977-518-02 PLATE, LIMITTER, FL
811 3-977-516-01 HOLDER, FL SLIDER
812 3-977-877-01 PLATE, RETAINER
813 3-977-504-01 GEAR, CLUTCH
814 X-3947-585-1 GEAR ASSY, PULLEY
815 3-977-510-01 BELT, RUBBER
816 3-977-440-01 WASHER, STOPPER
817 3-977-439-01 GEAR, CAM
818 3-977-442-01 SLIDER
819 3-977-455-01 GEAR, LOADING (T)
820 3-977-456-03 SPRING, TORSION (LOAD T)
821 X-3947-579-1 LEVER ASSY, LOADING (T)
822 3-977-451-01 GEAR, LOADING (S)
823 3-977-452-01 SPRING, TORSION (LOAD S)
824 X-3947-578-1 LEVER ASSY, LOADING (S)
825 X-3947-576-2 CHASSIS ASSY, MECHANICAL
826 3-977-468-01 SHAFT, CAPSTAN BRAKE
827 3-977-467-02 SPRING, CAP BRAKE
828 X-3947-583-1 BRAKE ASSY, CAPSTAN
829 3-977-489-01 ARM, TG1 DRIVING
830 A-6759-616-A GEAR BLOCK ASSY, LOADING (S)
M902 1-698-971-11 MOTOR, DC (CAPSTAN)
M903 X-3947-577-1 MOTOR ASSY, CAM
820
821
822
830
823
824
825
801
M903
804
805
806
808
807
813
826
827
828
829
814
803
M902
815
809
810
811
812
802
803
816
817
818
803
819
#4
#3
