Sony SLV-E730VC - Board Removal; Mechanism Deck Removal

2-2

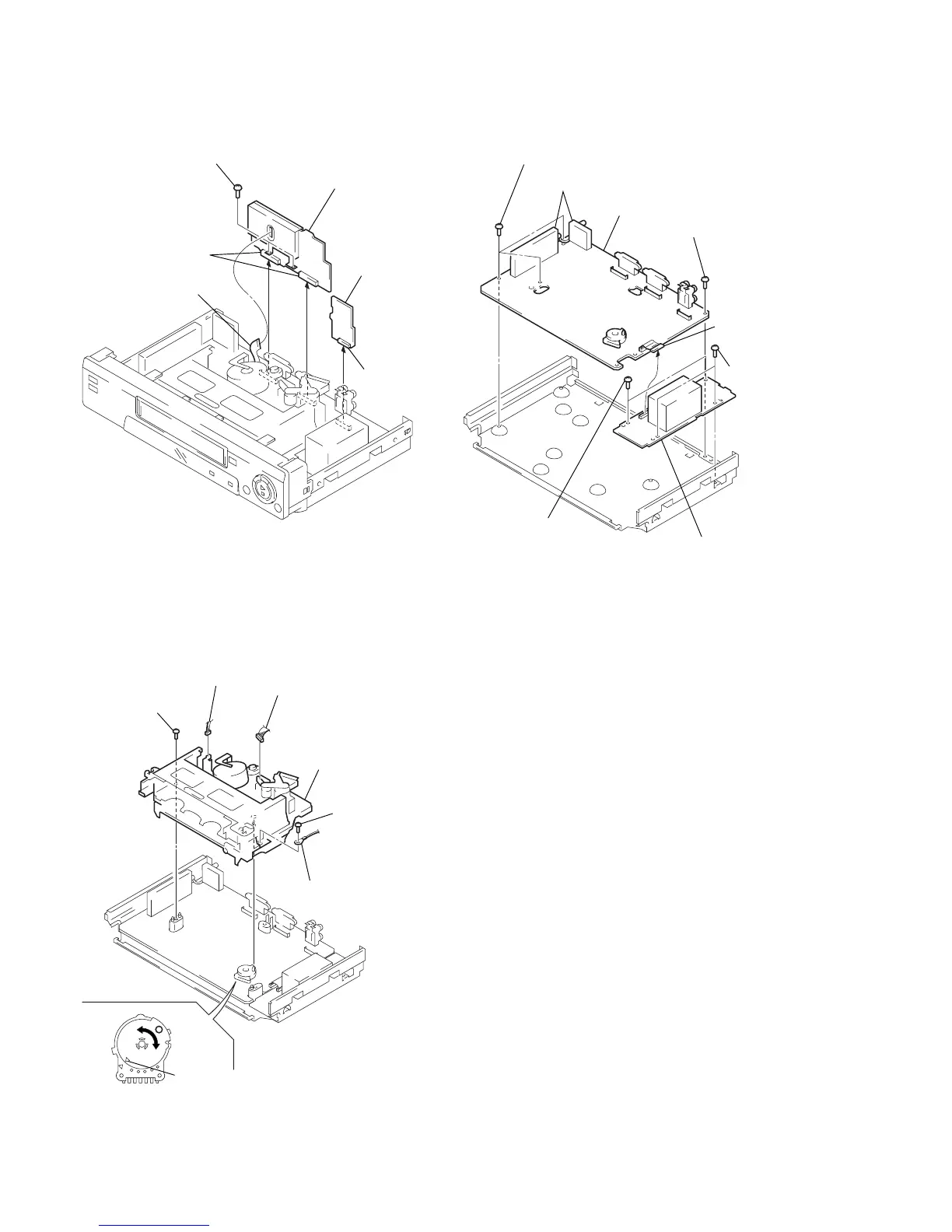

2-5. RP-230, SE-68 BOARD REMOVAL 2-7. MA-315, SR-826 BOARD REMOVAL
2-6. MECHANISM DECK REMOVAL
5 Connector
(CN307)
6 SE-68 board
(E730B/E735B)
4 RP-230 board
1 Flexible board
3 Two connector
(CN305, 306)
2 Two screws
(B3)
3
Note: When mounting the mechanism deck,
first align ¢ mark on the rotary switch.
5 Earth lug
4 Screw
(B3)
6 Mechanism deck
2 Connector
(ACE head)
1 Connector
(FE head)
3 Screw
(B3)
Tuner unit
3 Two screws
(BVTP3 × 12)
4 SR-825 board
2 Two screws
(BVTP3 × 12)
1 Connector
(CN201)
5 Screw (B3)
7 MA-315 board
6 Three screws (B3)
