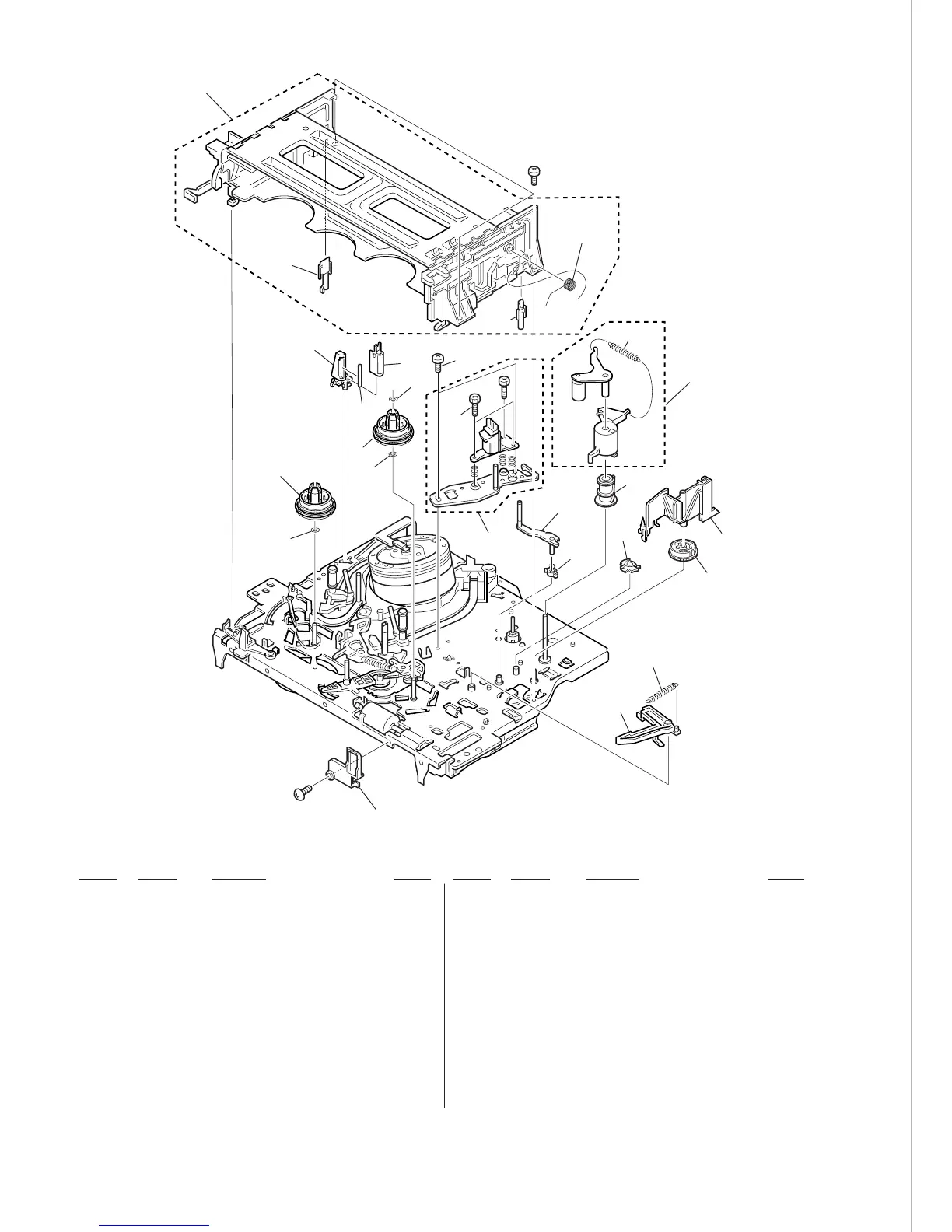

8-1-3. MECHANISM CHASSIS ASSEMBLY (1)
701
702
703
704
725
705
723
722
720
721
706
707
710
712
711
724
#3
713
714
715
716
717
719
718
709
708
701
#3
701 3-977-509-01 WASHER, THRUST
702 3-977-507-01 TABLE, REEL (S)
703 3-977-508-01 TABLE, REEL (T)
704 1-500-144-11 HEAD, FE
705 3-977-495-01 SHAFT TG2
706 3-977-494-01 HOLDER, FEH
707 A-6759-619-C FL COMPLETE ASSY BOARD, COMPLETE
708 3-977-535-01 PLATE, LUMINOUS (END SENSOR)
709 3-977-536-01 PLATE, LUMINOUS (TOP SENSOR)
710 3-970-471-01 SPRING (DECK OPEN), TORSION
711 A-6759-615-A PRESS BLOCK ASSY, PINCH
712 3-958-455-01 SPRING (PINCH), TENSION
713 3-977-447-01 GEAR, ELEVATOR
714 3-977-514-01 OPENER, LID
715 3-977-441-01 GEAR, PINCH PRESSING
716 3-977-445-01 GEAR, TG8 ARM DRIVING
717 3-977-465-01 SPRING,EXTENSION (RVS BRAKE)
718 X-3947-582-1 ARM ASSY, RVS BRAKE
719 3-977-446-01 GEAR, TG8 ARM
720 X-3947-590-1 TG8 ASSY
721 A-6759-620-A HEAD BLOCK ASSY, ACE (ALPS) EURO
722 3-974-556-01 + HEXA TT 2.6X9 (TAPER)
723 3-979-508-01 SCREW +HEXA TP SW 3X8
724 3-978-485-01 PLATE, GUIDE CASSETTE
725 3-977-443-01 WASHER, STOPPER
