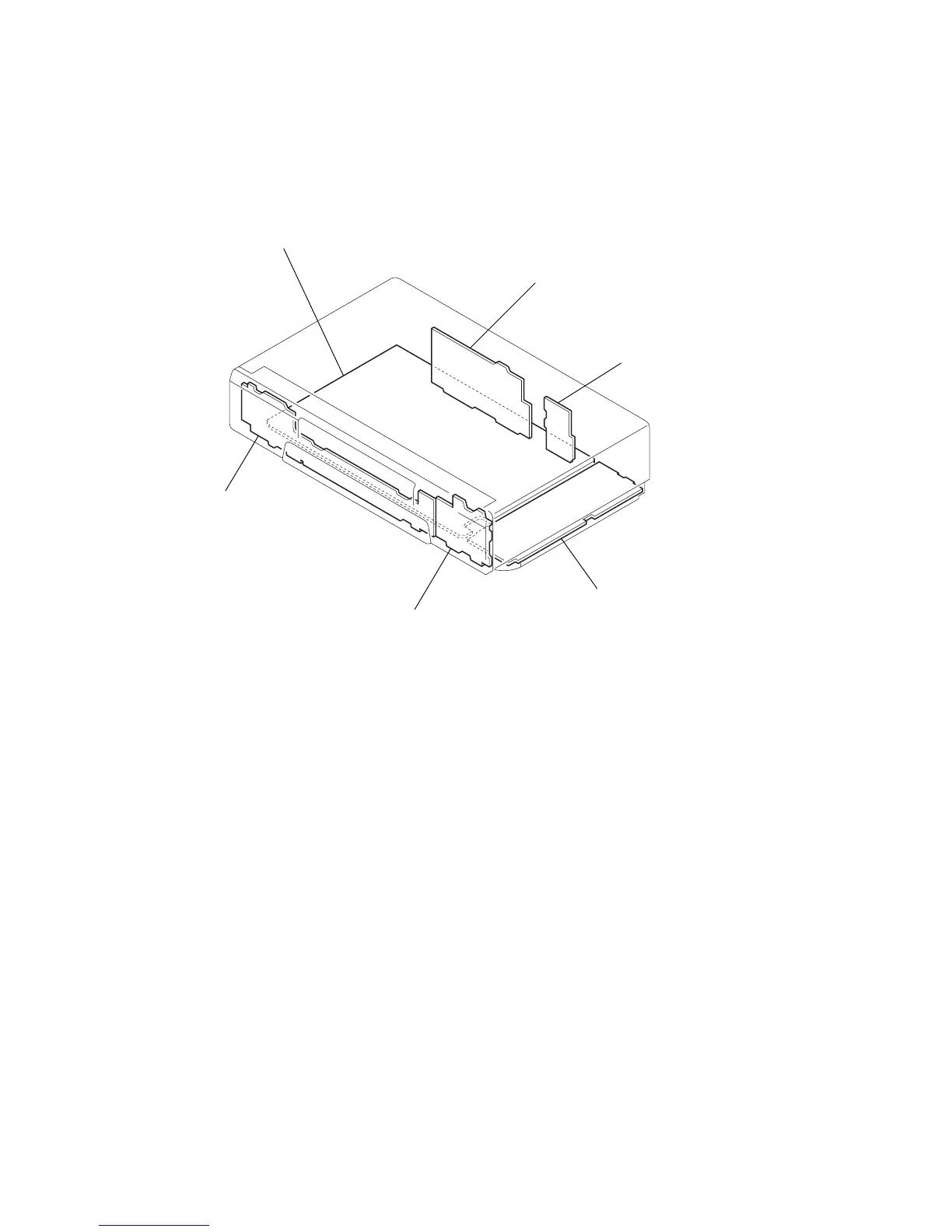

2-9. CIRCUIT BOARDS LOCATION
2-4 E
MA-315
VIDEO, AUDIO, IO,
(
SERVO/SYSTEM CONTROL, TUNER
)
FR-127
FL DRIVER,
(
MODE CONTROL
)
RP-230
(HEAD AMP)
SE-68 (E730B/E735B)
(SECAM)
SR-825
(POWER SUPPLY)
DM-72
(MODE CONTROL)
