Sony SLV-E730VC - Internal Views

2-3

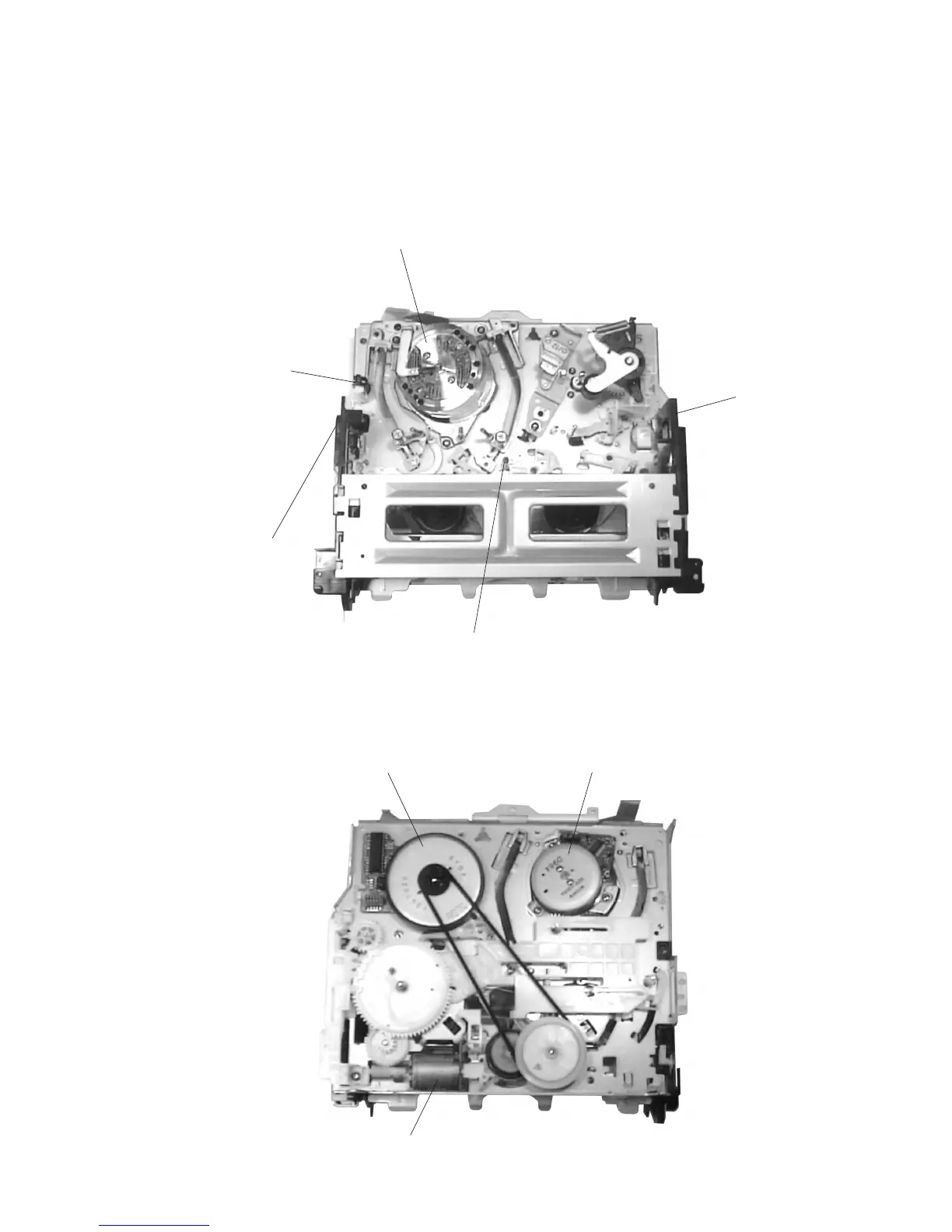

2-8. INTERNAL VIEWS
Drum assembly (M901) (DZH-85A-R)
1-759-371-11 (E580)
Drum assembly (M901) (DZH-86A-R)
1-759-373-11 (EXCEPT E580/E730B/E735B)
Drum assembly (M901) (DZH-98A-R)
1-759-557-11 (E730B/E735B)
Q100
Tape end sensor
8-729-043-84
Q101
Tape top sensor
8-729-043-84
FE head
1-500-144-11
D102
Tape top/end LED
8-719-048-26
M901
Cam motor assembly
X-3947-577-1
M902
Capstan motor
1-698-971-11
Drum assembly (M901) (DZH-85A-R)
1-759-371-11 (E580)
Drum assembly (M901) (DZH-86A-R)
1-759-373-11 (EXCEPT E580/E730B/
E735B)
Drum assembly (M901) (DZH-98A-R)
1-759-557-11 (E730B/E735B)
