SLV-L49/L52/L59/L69HF/L72HF/L79HF/L89HF/X55/X66HF
4-15 4-16

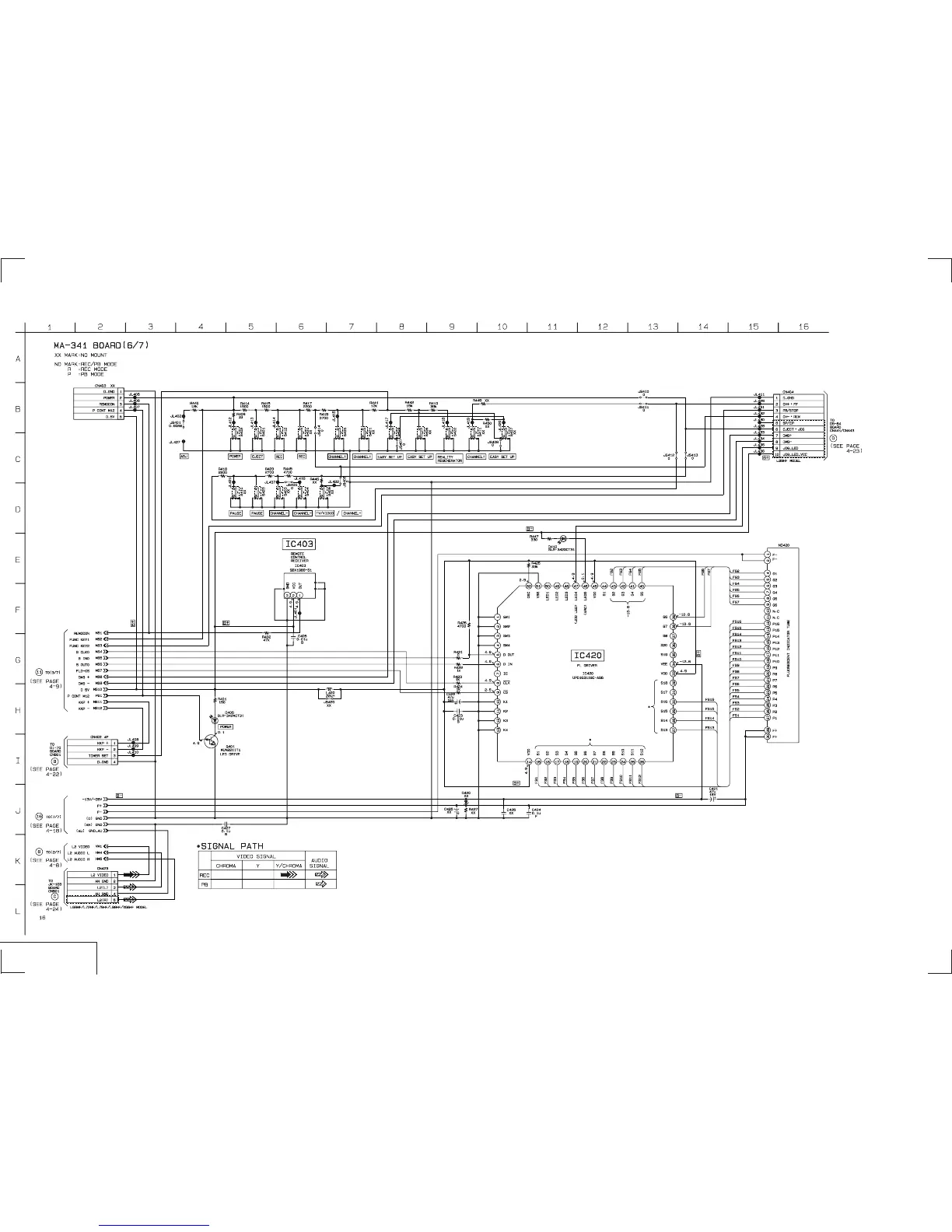

MA-341 (6/7) (MODE CONTROL) SCHEMATIC DIAGRAMS
— Ref. No. MA-341 Board; 1,000 Series —
For schematic diagram
• Refer to page 4-19 for printed wiring board.
MODE CONTROL
MA-341(6/7)
