Sony SLV-SE85 - Disassembly; Case, Front Panel Block Assembly; Boards

2-1
SLV-SE85/SF90/SF99
SECTION 2
DISASSEMBLY
NOTE: Follow the disassembly procedure in the numerical order given.

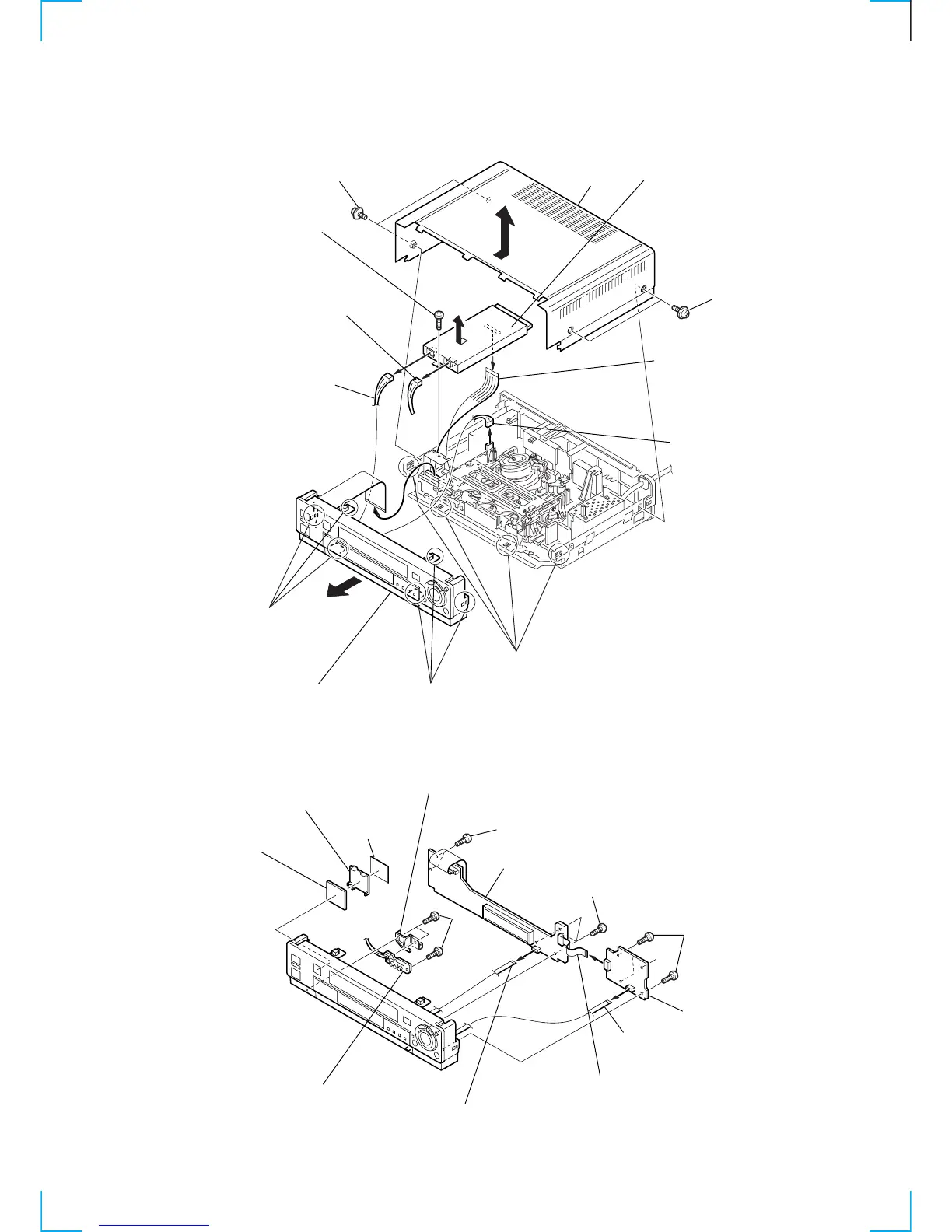

2-1. CASE, FRONT PANEL BLOCK ASSEMBLY
1 Two screws (case)
1 Two screws (case)
4 Screw (B2.6 × 8)
6 Flat cable
(From CN164 on MA-359 board)
8 Hooks
8 Hooks
8 Hooks
Case
ML-17 board
2
5
3 Connector
(From CN901 on ML-17 board)
3 Connector
(From CN900 on ML-17 board)
9 Front panel assembly
7 Connector
(From CN501 on MA-359 board)
4 Three screws (B2.6 × 8)
7
Three
screws
(B2.6 × 8)
1 Four screws
(B2.6 × 8)
4 Two screws (B2.6 × 8)
8 Fulcrum Plate (L)
5 FR-161 board
2 DM-86 board
9 JK-171 board
!¡ AT-26 board
3 Flat cable
(From CN451 on DM-86 board)
3 Flat cable
(From CN452 on DM-86 board)
6 Flat cable
(From CN401 on FR-161 board)
0 Holded (DD), shield
!¡ Shield
2-2. DM-86, FR-161, JK-171, AT-26 BOARDS
