Sony SLV-SE85 - Secam Chroma Process) Printed Wiring Board

SLV-SE85/SF90/SF99

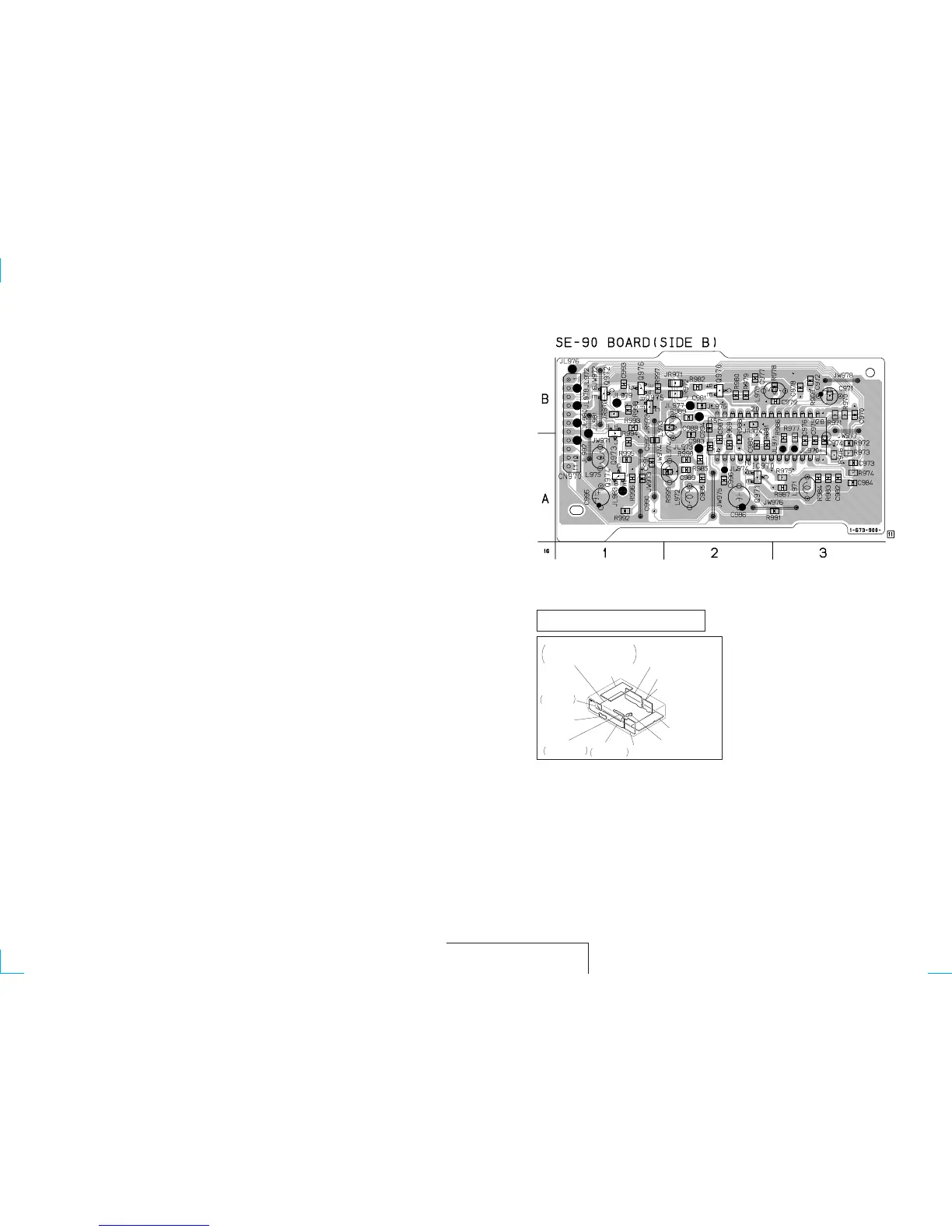

SE-90 (SECAM CHROMA PROCESS) PRINTED WIRING BOARD
— Ref. No. SE-90 Board; 3,000 Series —
4-38
SECAM CHROMA PROCESS
SE-90
SLV-SE85/SF90/SF99
For printed wiring boards
There are few cases that the part printed on this
diagram isn’t mounted in this model.
ML-17 (SF90/SF99)
(SMART FILE)
CA-55
FR-161
INDICATOR,
TONE CONTROL
JK-171
(LINE 2 IN)
DM-86
(USER CONTROL)
POWER BLOCK
SRV879EK
RP-235
(REC/PB HEAD AMP)
NR-27 (SF99:UX,EN,NP,VC)
(DNR, Y/C SELECT)
SE-90 (SE85:B/SF90:B/SF99:B)
(SECAM PROCESS)
MA-359
Y/C PROCESS, ARC, AFC, VPS/PDC,
SERVO/SYSTEM CONTROL,
IN/OUT SELECT, TUNER, AUDIO PROCESS,
DC/DC CONVERTER
AT-25 (SF90/SF99)
INNER SMART FILE
SENSOR
AT-26 (SF90/SF99)
FRONT SMART
FILE SENSOR
