Sony SLV-SE85 - Smart File and Sensor Schematics

SLV-SE85/SF90/SF99
ML-17 (SMART FILE), AT-25 (INNER SMART FILE SENSOR), AT-26 (FRONT SMART FILE SENSOR)

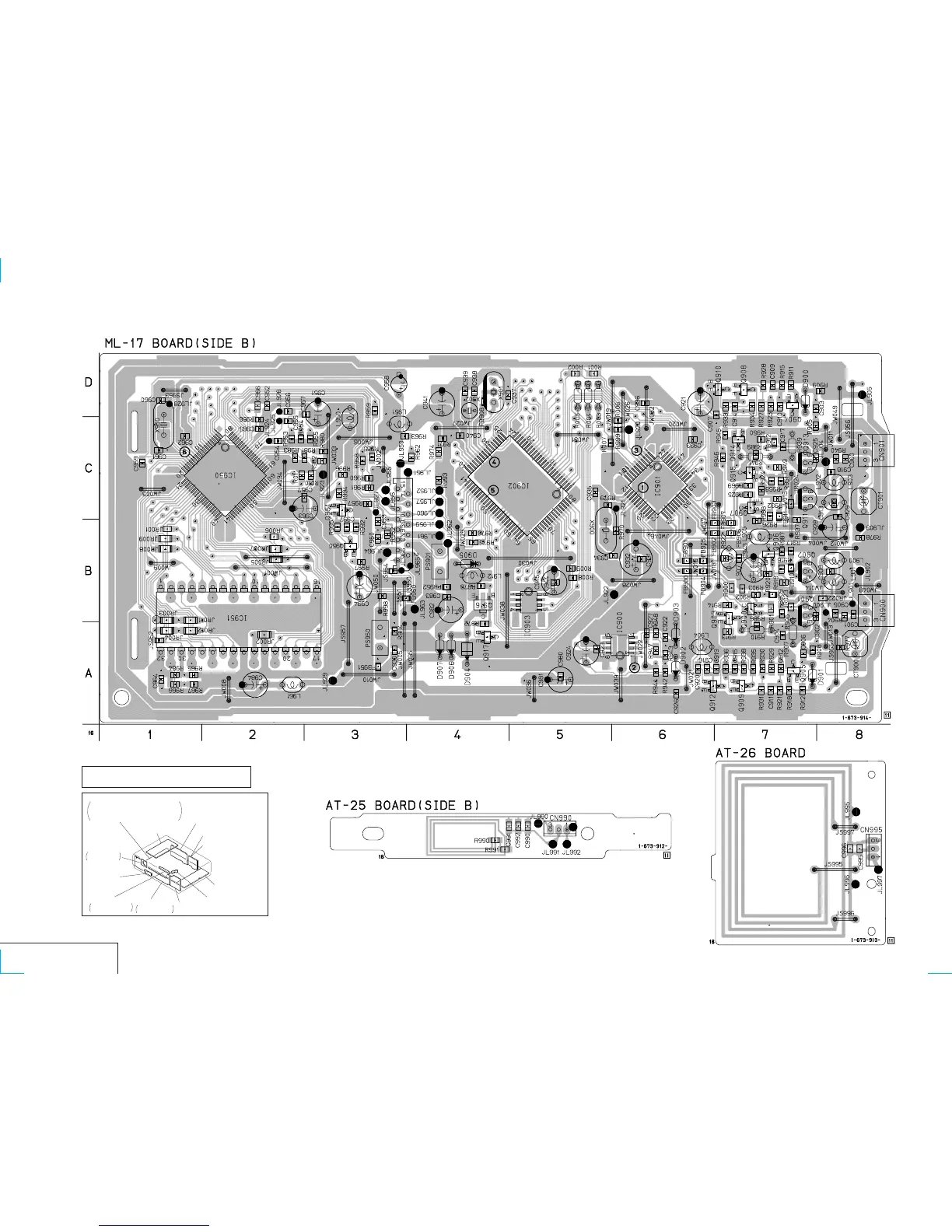

PRINTED WIRING BOARDS
— Ref. No. ML-17, AT-25 and AT-26 Boards; 2,000 Series —
4-49 4-50
SMART FILE, SENSOR
ML-17, AT-25, 26
CN900 B-8
CN901 C-8
CN950 B-3
D900 D-7
D902 A-6
D903 A-6
D904 A-4
D905 B-4
D906 A-4
D907 A-4
IC900 A-6
IC901 C-6
IC902 C-5
IC903 B-5
IC950 C-2
IC951 B-2
Q900 B-7
Q901 B-7
Q902 B-7
Q903 B-7
Q904 D-7
Q905 A-7
Q906 B-7
Q907 C-7
Q908 D-7
Q909 A-7
Q910 D-7
Q911 C-7
Q912 A-6
Q913 C-7
Q914 C-7
Q915 C-7
Q916 B-4
Q917 A-4
Q950 B-3
Q951 C-3
ML-17 BOARD
For printed wiring boards
There are few cases that the part printed on this
diagram isn’t mounted in this model.
ML-17 (SF90/SF99)
(SMART FILE)
CA-55
FR-161
INDICATOR,
TONE CONTROL
JK-171
(LINE 2 IN)
DM-86
(USER CONTROL)
POWER BLOCK
SRV879EK
RP-235
(REC/PB HEAD AMP)
NR-27 (SF99:UX,EN,NP,VC)
(DNR, Y/C SELECT)
SE-90 (SE85:B/SF90:B/SF99:B)
(SECAM PROCESS)
MA-359
Y/C PROCESS, ARC, AFC, VPS/PDC,
SERVO/SYSTEM CONTROL,
IN/OUT SELECT, TUNER, AUDIO PROCESS,
DC/DC CONVERTER
AT-25 (SF90/SF99)
INNER SMART FILE
SENSOR
AT-26 (SF90/SF99)
FRONT SMART
FILE SENSOR
