2-2

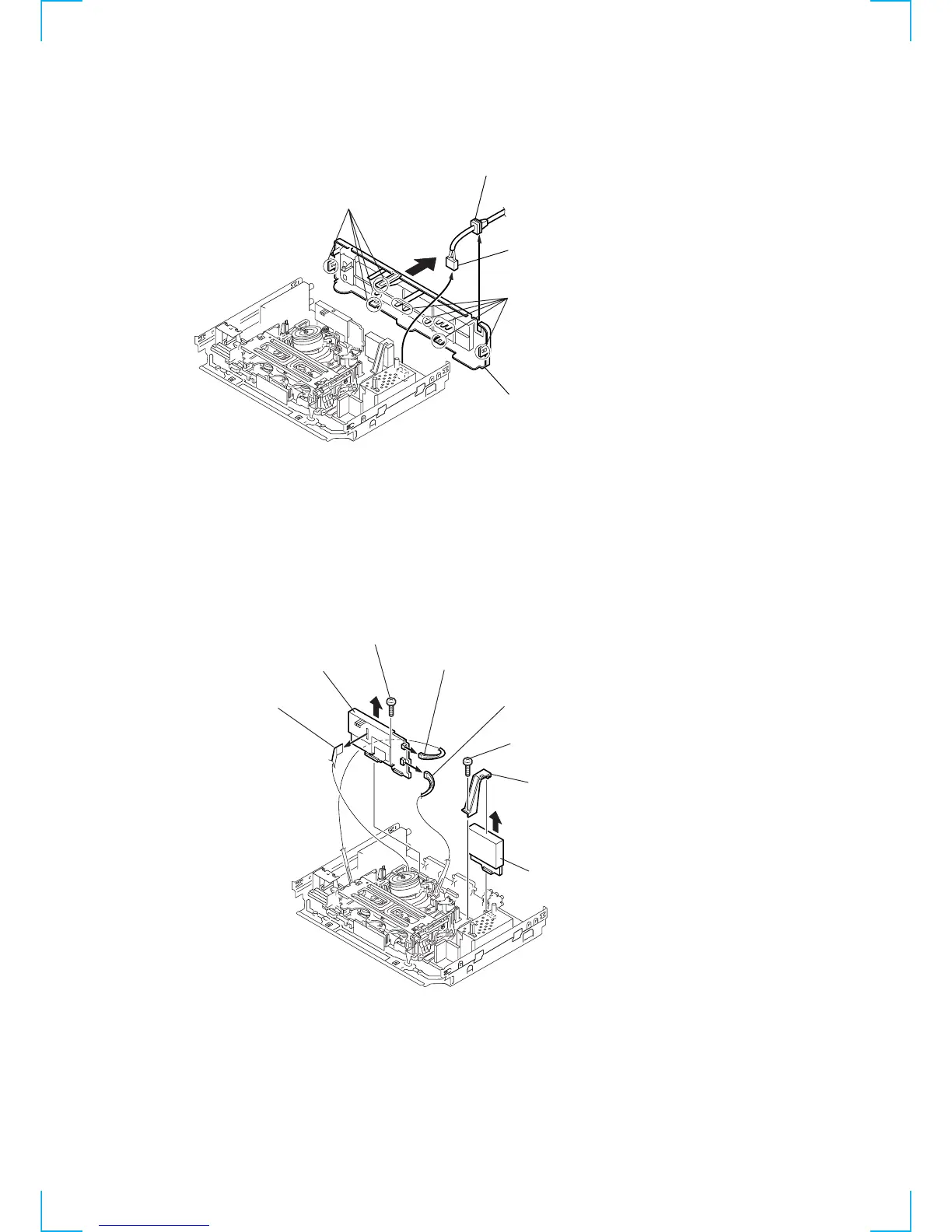

2-4. NR-27, RP-235 BOARDS
2-3. REAR PANEL
2
Release cable stopper
from rear panel
4
Rear panel
3
Hooks
3
Hooks
1
Connector
(From CN101 on POWER BLOCK)
1
Screw (+HEXA TP SW3
×
8)
3
NR-27 board (SF99:UX,EN,NP,VC)
SE-90 board (SE85:B/SF90:B/SF99:B)
6
RP-235 board
2
Holder
5
Two screws (B3)
4
Connector
(From CN301 on RP-235 board)
4
Connector
(From CN324 on RP-235 board)
4
Flat cable
(From CN260 on RP-235 board)
To Next Page
