Sony SLV-SE85 - Rec;Pb Head Amp) Printed Wiring Board; Servo;System Control, In;Out Select

SLV-SE85/SF90/SF99

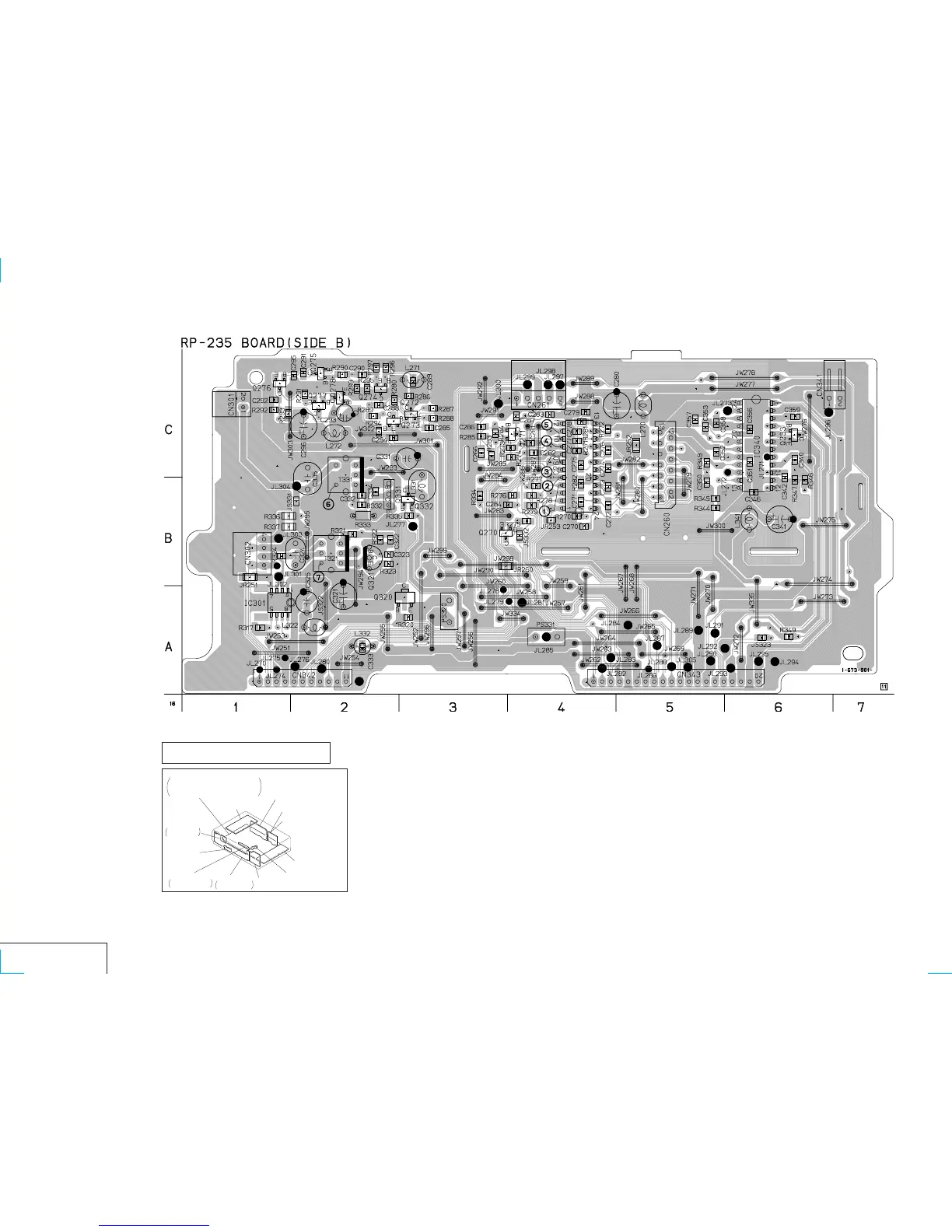

RP-235 (REC/PB HEAD AMP) PRINTED WIRING BOARD
— Ref. No. RP-235 Board; 3,000 Series —
4-25 4-26
REC/PB HEAD AMP
RP-235
CN260 B-5
CN261 C-4
CN301 C-1
CN302 B-1
CN341 C-6
CN342 A-2
CN343 A-5
CN970 A-1
IC260 C-4
IC301 A-1
IC340 C-6
IC970 A-2
Q270 B-3
Q271 C-4
Q272 C-3
Q273 C-3
Q274 C-1
Q275 C-1
Q277 C-1
Q278 C-1
Q320 A-2
Q321 B-2
Q331 B-2
Q332 B-3
Q333 C-6
Q970 B-2
Q971 A-2
Q972 B-1
Q973 A-1
Q974 A-1
Q975 B-1
Q976 B-1
RP-235 BOARD
For printed wiring boards
There are few cases that the part printed on this
diagram isn’t mounted in this model.
ML-17 (SF90/SF99)
(SMART FILE)
CA-55
FR-161
INDICATOR,
TONE CONTROL
JK-171
(LINE 2 IN)
DM-86
(USER CONTROL)
POWER BLOCK
SRV879EK
RP-235
(REC/PB HEAD AMP)
NR-27 (SF99:UX,EN,NP,VC)
(DNR, Y/C SELECT)
SE-90 (SE85:B/SF90:B/SF99:B
)
(SECAM PROCESS)
MA-359
Y/C PROCESS, ARC, AFC, VPS/PDC,
SERVO/SYSTEM CONTROL,
IN/OUT SELECT, TUNER, AUDIO PROCESS,
DC/DC CONVERTER
AT-25 (SF90/SF99)
INNER SMART FILE
SENSOR
AT-26 (SF90/SF99)
FRONT SMART
FILE SENSOR
