SLV-SE85/SF90/SF99
4-23

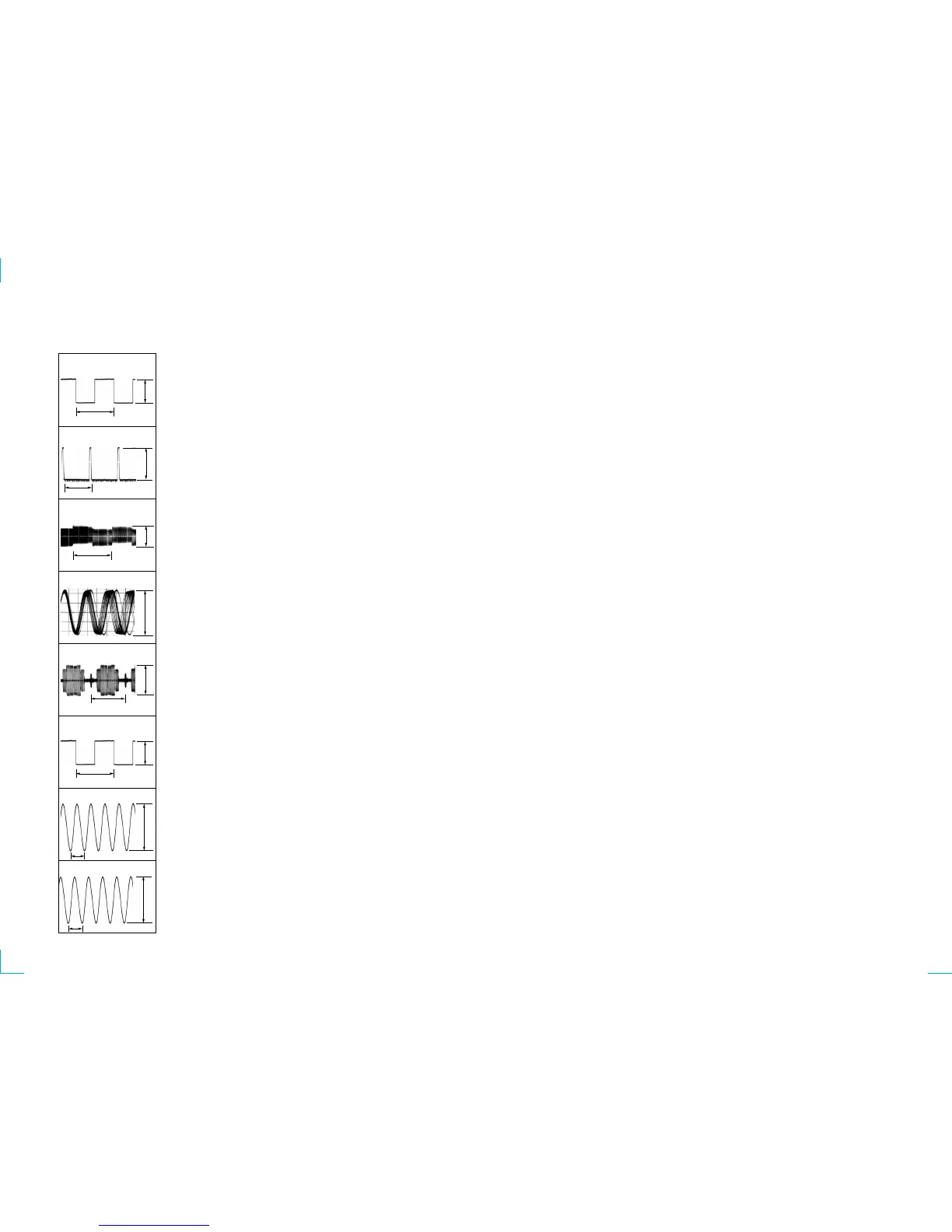

3 IC260 7 PB
1 CN260 4 REC
4 IC260 9 REC
0.5Vp-p
2V
3.6Vp-p
470mVp-p
0.1µsec/div
40msec
5 IC260 !º REC
280mVp-p
2 IC260 5 REC/PB
3.6Vp-p
H
6 IC340 1
5Vp-p
40msec
H
16µsec
7 T321 6, REC
46Vp-p
8 T331 6, REC
50Vp-p
15µsec
RP-235 BOARD
SLV-SE85/SF90/SF99
