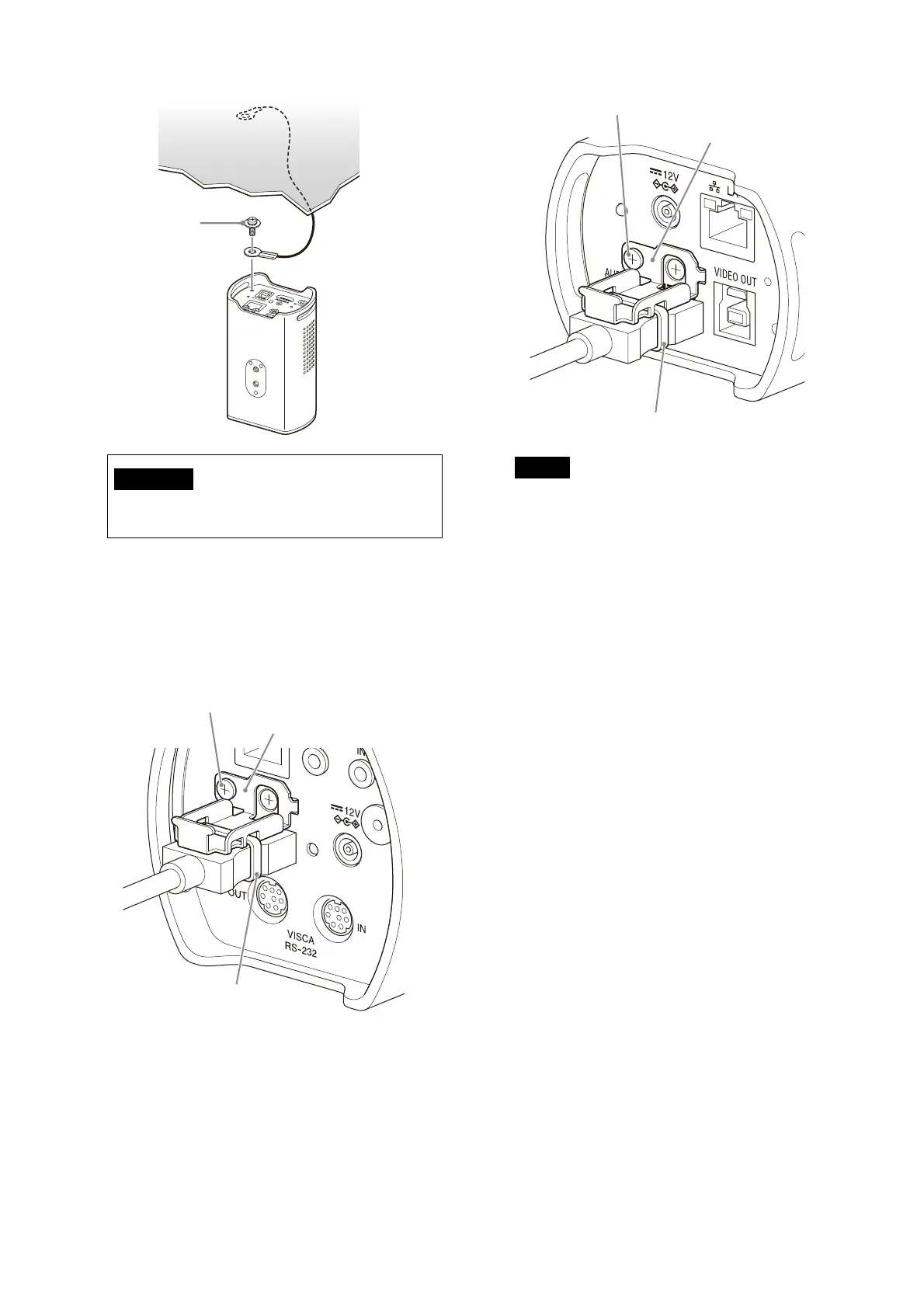

3 To prevent the HDMI cable from coming
off, mount the HDMI cable fixing plate with
the supplied screw (single, M2.6×6, black)
on the back of the camera, then fix the
HDMI cable with a cable band etc.
SRG-XB25
SRG-XP1
Note
Do not attach the HDMI cable on the camera,
if you do not use it.
4 Adjust the image flip function to optimize
the ceiling mounting status.
Warning
Use the supplied screw. Otherwise, the wire
rope may not function properly.
M3×8
(supplied)
Ceiling
Attach the
wire rope.
HDMI cable fixing plate
Cable band
M2.6×6 (supplied)
HDMI cable fixing plate
Cable band
M2.6×6 (supplied)
