Sony SRG-XP1 - Pin Layout (SRG-XB25 Only)

70

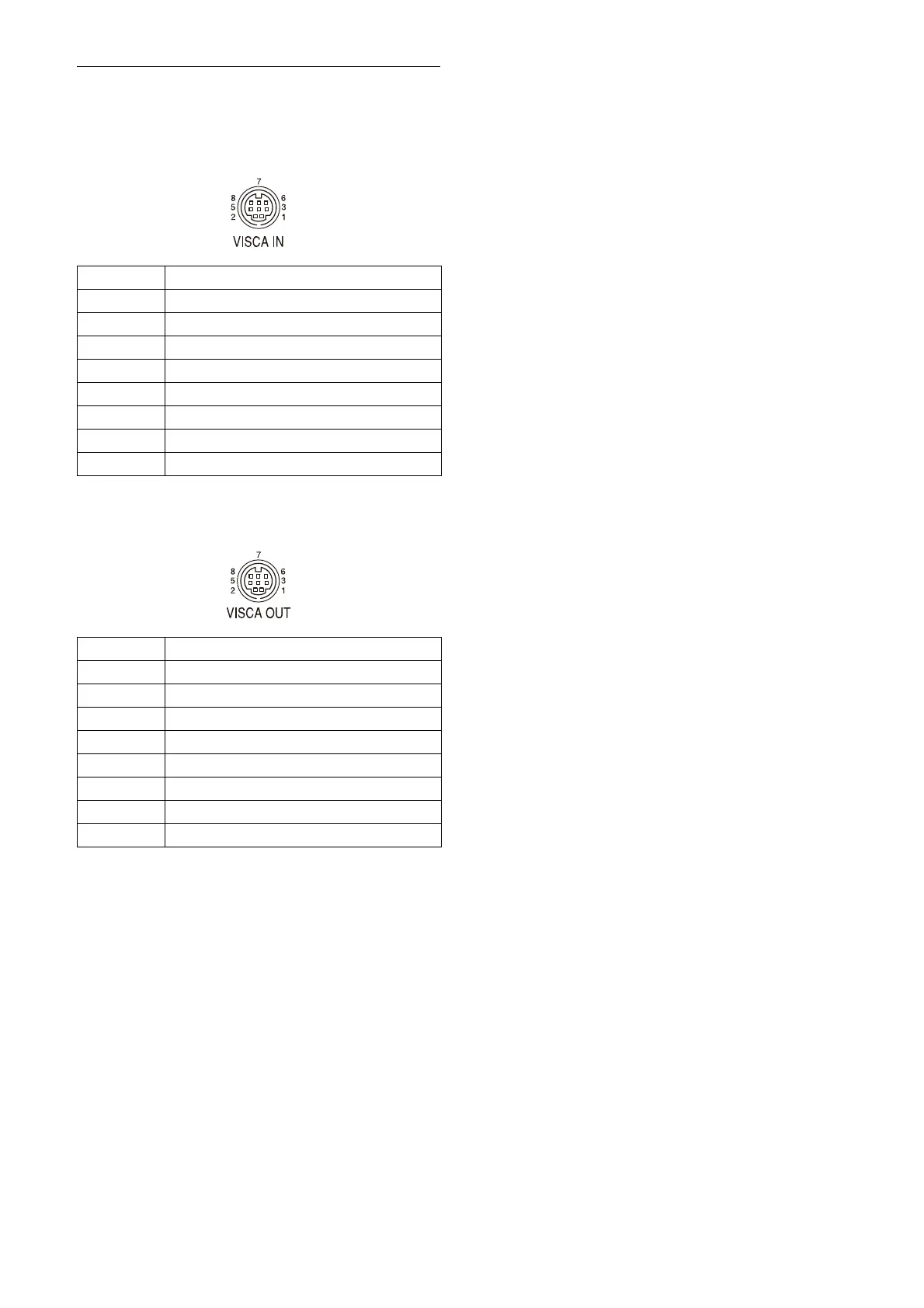

Pin layout (SRG-XB25 only)
VISCA IN terminal (8-pin mini DIN,
female)
VISCA OUT terminal (8-pin mini DIN,
female)
Pin No. Function
1DTR IN
2DSR IN
3TXD IN
4GND
5RXD IN
6GND
7Not used
8Not used
Pin No. Function
1DTR OUT
2DSR OUT
3TXD OUT
4GND
5RXD OUT
6GND
7Not used
8Not used
