3-1 Connecting External Equipment
Chapter
Chapter 3 Setting Up the VTR
3
Setting Up the VTR
3-1 Connecting External Equipment
3-1-1 Making HD Digital Connections

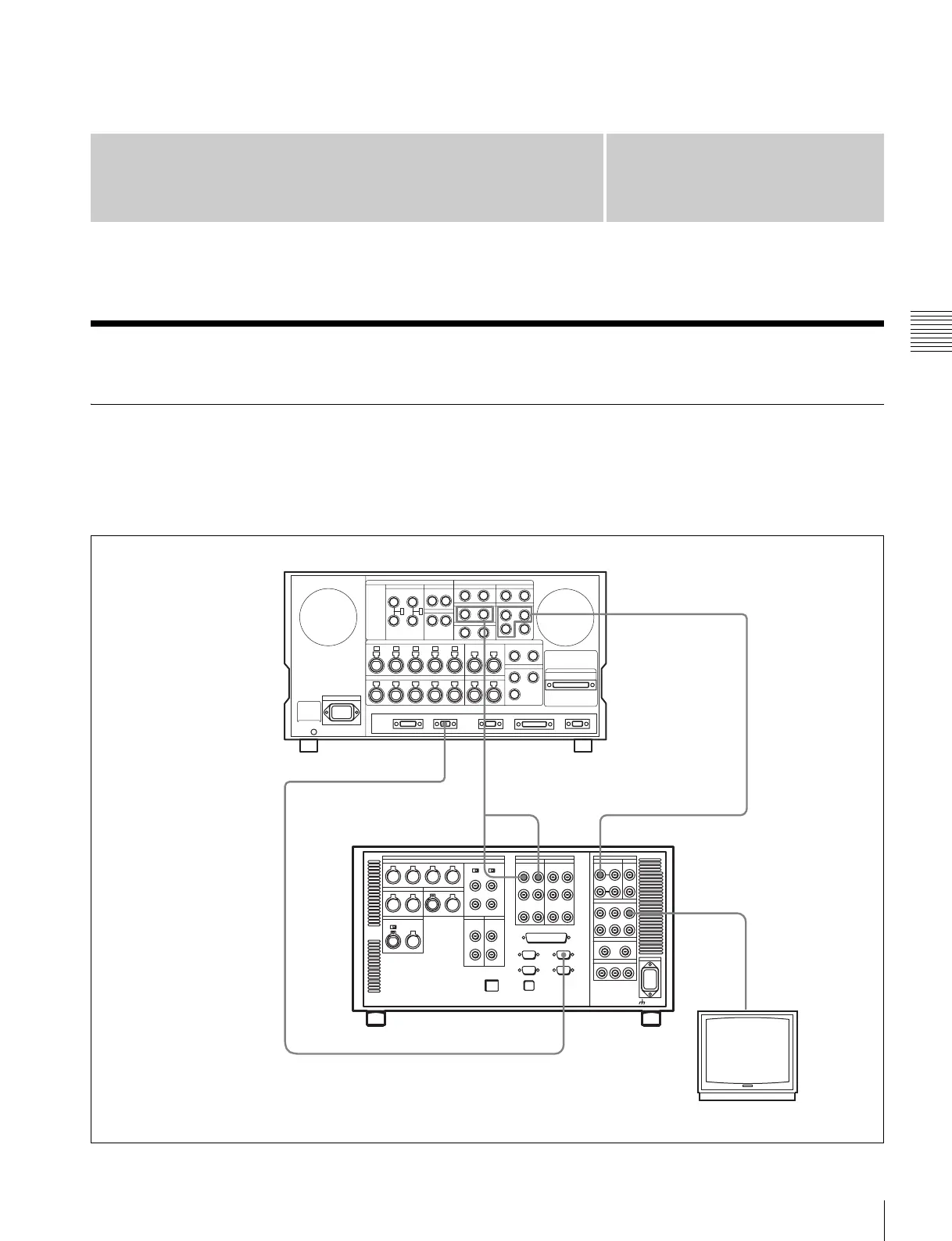

This example shows the connections when using an HDW-
F500 as player and an SRW-5000/5500 as recorder, in
59.94i or 60i mode.
See “Specifications” in the Appendix (page 140) for
recommended XLR/BNC and P/S converters.
HD SDI OUTPUT
AUDIO
OUTPUT
HD SDI INPUT
HD SDI OUTPUT
REMOTE (9P)
REMOTE 1-I/O(9P)
DIGITAL I/O INPUT
HDW-F500 (Player)
9-pin remote control cable
SRW-5000/5500 (Recorder)
a)
a) The figure shows the SRW-5500.
Video monitor
(HD serial monitor)
