Sony STR-DA333ES - Printed Wiring Board - Main Section

STR-DA333ES/DA555ES
(Page 50)
(Page 37)
(Page 49)
(Page 57)
(Page 25)(Page 42)(Page 25)(Page 25)(Page 25)
(Page 38) (Page 38)
(Page 50)
(Page 57)
(Page 51)
(Page
50)
(Page 50) (Page 57) (Page 42)
– 27 – – 28 –

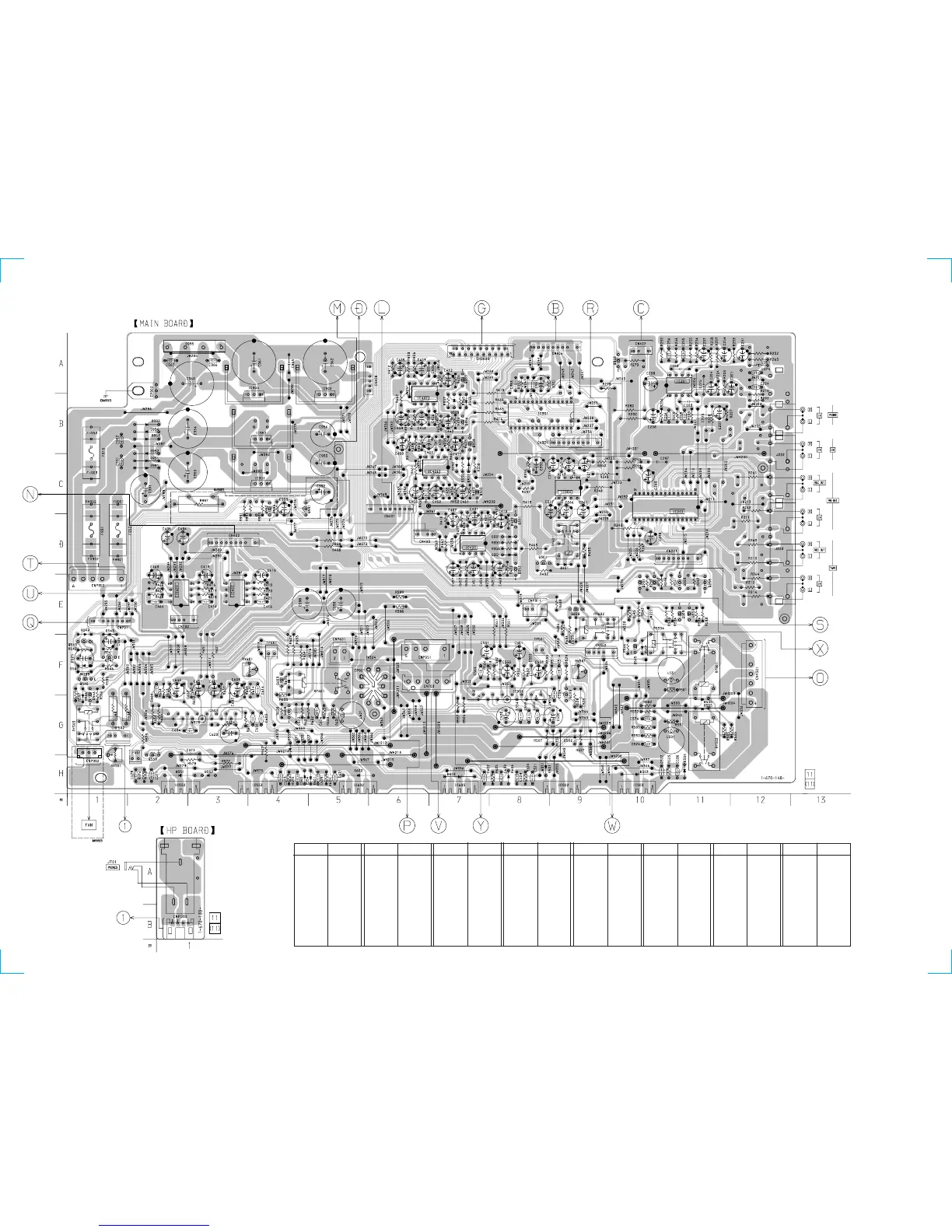

5-7. PRINTED WIRING BOARD – MAIN SECTION –
• See page 17 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D301 D-8
D302 C-7
D303 B-7
D351 D-8
D352 C-7
D353 B-7
D401 D-9
D501 H-8
D502 G-9
D503 H-10
D504 H-11
D505 G-11
D506 F-1
D507 F-10
D547 F-1
D548 E-1
D549 E-1
D551 H-2
D552 H-3
D553 G-4
D554 H-4
D555 G-11
D601 H-6
D602 H-5
D603 H-7
D604 H-8
D605 F-4
D655 E-9
D951 C-2
D952 B-2
D953 B-2
D954 B-2
D955 A-2
D991 C-2
D992 B-2
IC201 A-11
IC202 C-11
IC204 C-9
IC351 B-8
IC401 E-2
IC402 E-3
IC405 D-7
IC406 C-7
IC407 B-6
IC501 F-8
IC502 H-9
IC503 H-10
IC552 H-2
IC553 H-4
IC601 G-3
IC602 H-5
IC603 H-7
IC902 A-5
IC951 C-4
IC952 B-4
IC955 A-4
Q201 E-10
Q202 E-10
Q203 E-11
Q253 E-11
Q301 D-8
Q303 A-10
Q351 D-8
Q352 D-8
Q353 A-7
Q354 B-7
Q355 C-7
Q356 B-7
Q508 F-9
Q509 E-11
Q545 F-10
Q546 F-1
Q547 F-1
Q548 F-1
Q549 F-1
Q558 H-2
Q559 E-11
Q608 G-4
Q609 F-4
Q659 E-9
Q991 C-4
Q992 C-4
Ref. No. Location Ref. No. Location
Ref. No. Location
Ref. No. Location
Ref. No. Location Ref. No. Location
