Sony STR-DA333ES - Printed Wiring Board - Speaker Section

STR-DA333ES/DA555ES
– 49 –
– 50 –

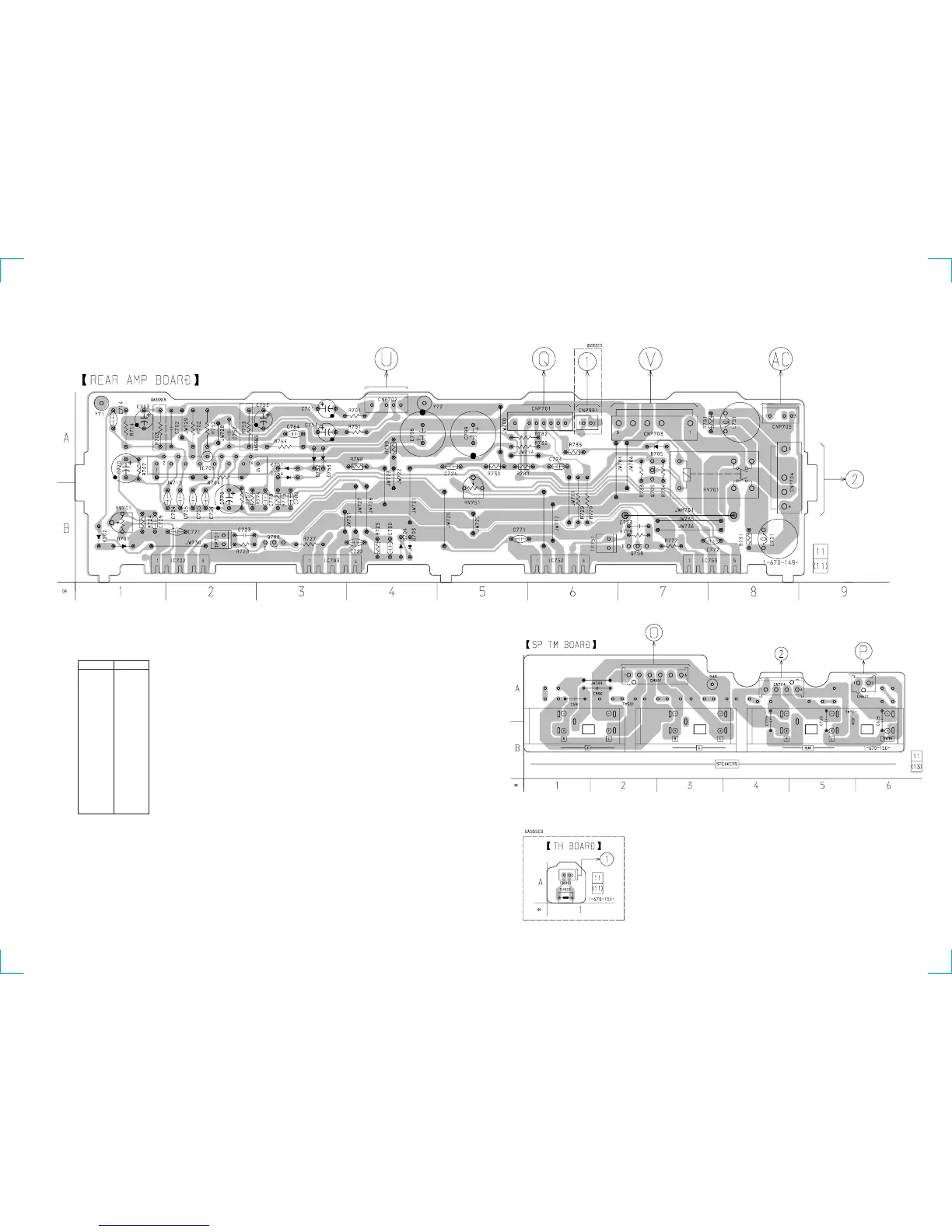

5-18. PRINTED WIRING BOARD – SPEAKER SECTION –
• See page 17 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D701 B-1
D702 B-1
D703 B-4
D705 A-7
D751 A-3
D752 A-3
D753 A-3
D754 A-3
IC701 A-2
IC702 B-2
IC703 B-3
IC752 B-6
IC753 B-7
Q708 B-3
Q709 A-7
Q759 B-7
(Page 27) (Page 42)(Page 27)(Page 27)(Page 27)
(Page 28)
(Page 27)
