Sony STR-DA333ES - Printed Wiring Board - Power Section

STR-DA333ES/DA555ES
– 57 –
– 58 –

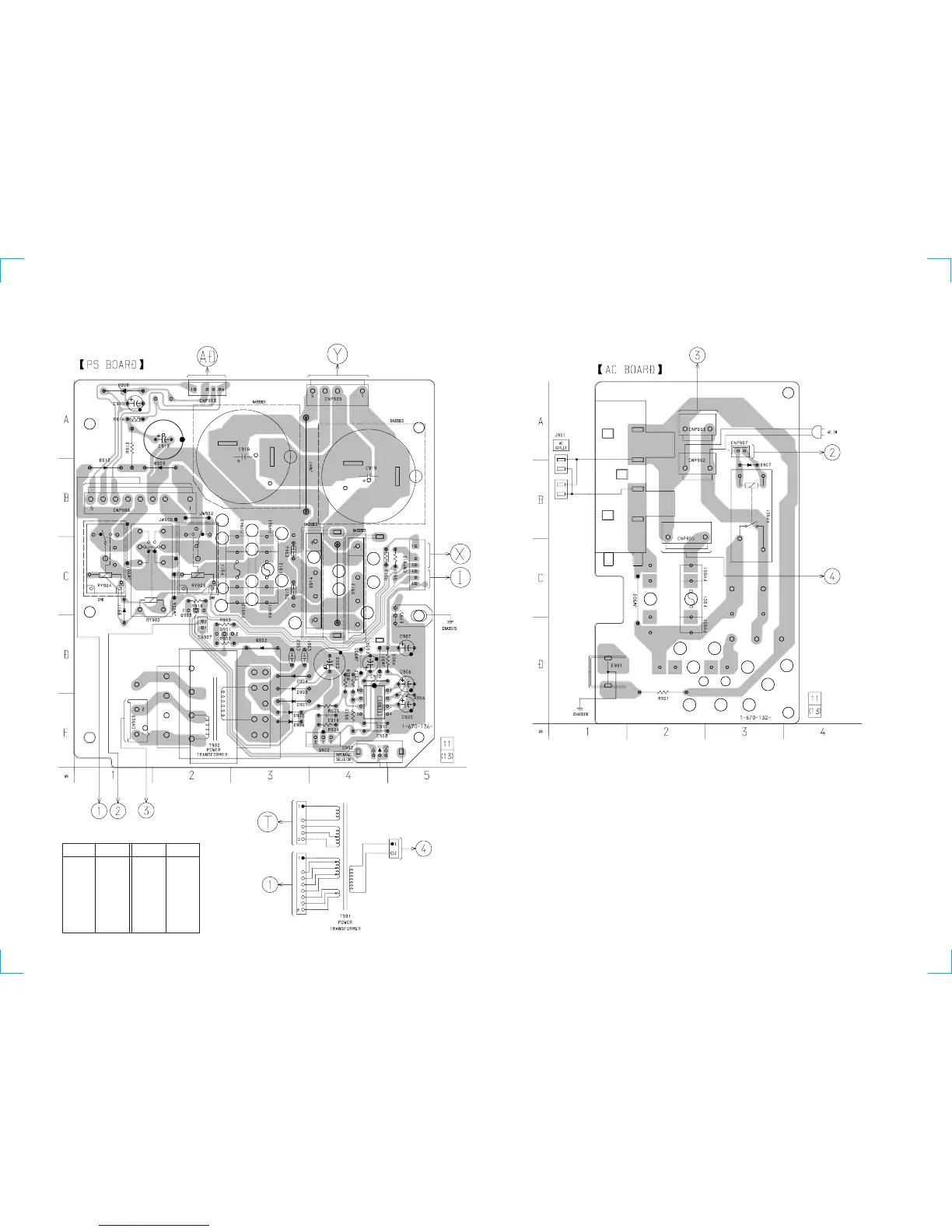

5-24. PRINTED WIRING BOARD – POWER SECTION –
• See page 17 for Circuit Boards Location.
(Page 46)
(Page 28)
(Page
28)
(Page
25)
(Page
27)
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D901 E-3
D902 D-3
D903 D-3
D904 D-3
D905 E-3
D906 E-3
D908 A-1
D909 B-2
D910 B-1
D911 C-1
D912 C-4
D914 C-3
IC901 E-4
Q901 D-2
Q902 E-4
Q903 C-2
