SECTION 6
EXPLODED VIEWS

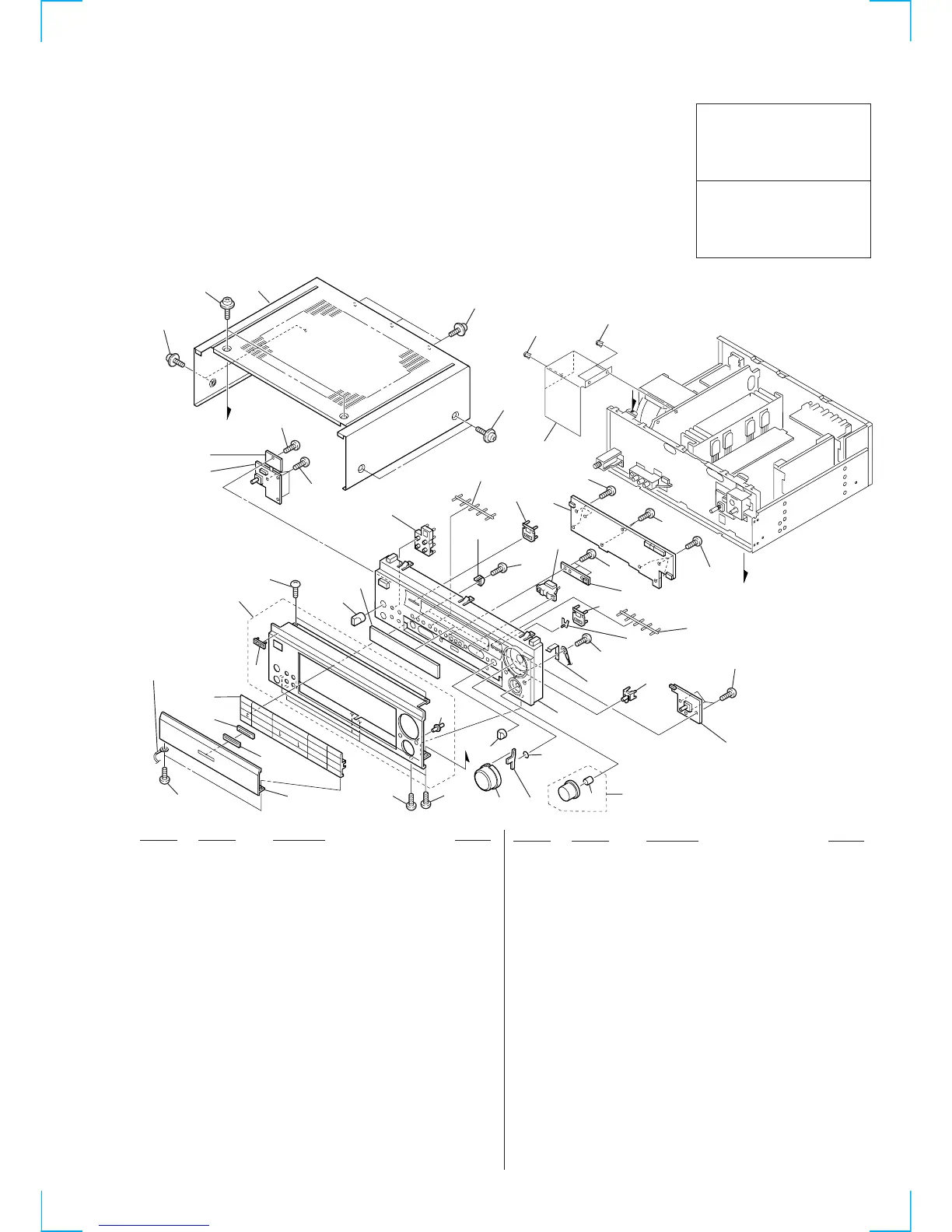

6-1. FRONT PANEL SECTION
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . . (RED)
ÂÂ
Parts color Cabinets color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-704-515-21 SCREW (BV/RING)
2 4-900-632-01 LID (FRONT)
* 3 4-900-642-01 ESCUTCHEON (LID)
* 4 4-900-643-01 INDICATOR (LID)
* 5 4-900-634-01 LID (BASE)
6 4-942-568-41 EMBLEM (NO.5), SONY
7 A-4411-619-A PANEL ASSY, FRONT (DA555ES)
7 A-4411-621-A PANEL ASSY, FRONT (DA333ES)
8 4-957-383-01 KNOB (F14)
* 9 X-4950-462-1 LENS ASSY, LED
* 10 1-670-142-11 SP SWITCH BOARD
* 11 1-670-749-11 POWER SWITCH BOARD
12 4-900-563-11 BUTTON (5)
13 4-991-388-01 INDICATOR (FUNC)
* 14 X-4950-431-1 CASE ASSY
15 4-210-291-01 SCREW (CASE 3 TP2)
* 16 A-4419-733-A DISPLAY BOARD, COMPLETE (DA555ES)
* 16 A-4419-735-A DISPLAY BOARD, COMPLETE (DA333ES)
17 4-991-386-01 BUTTON (WINDOW)
18 4-951-620-01 SCREW (2.6X8), +BVTP
* 19 4-900-638-01 HOUSE, LAMP
* 20 1-670-147-11 LED BOARD
21 4-900-645-01 INDICATOR (S/F)
22 4-900-639-01 SPRING
23 4-900-491-01 BUTTON (MUTE)
* 24 1-670-146-11 ENCODER BOARD
25 3-703-466-00 SPRING (6600)
26 X-4948-601-1 KNOB (FUNC) ASSY
27 3-350-426-01 SPRING, RING
28 4-998-207-11 INDICATOR (VOL)
29 X-3375-592-1 KNOB (VOL) ASSY
30 X-4951-411-1 BASE ASSY, PANEL
31 4-900-500-01 KNOB (BAL)
* 32 4-212-984-01 COVER (FR)(DA555ES)
33 4-900-648-11 WINDOW
34 3-531-576-01 RIVET (DA555ES)
