Sony STR-DA333ES - Schematic Diagram - Display Section

STR-DA333ES/DA555ES
– 43 –
– 44 –

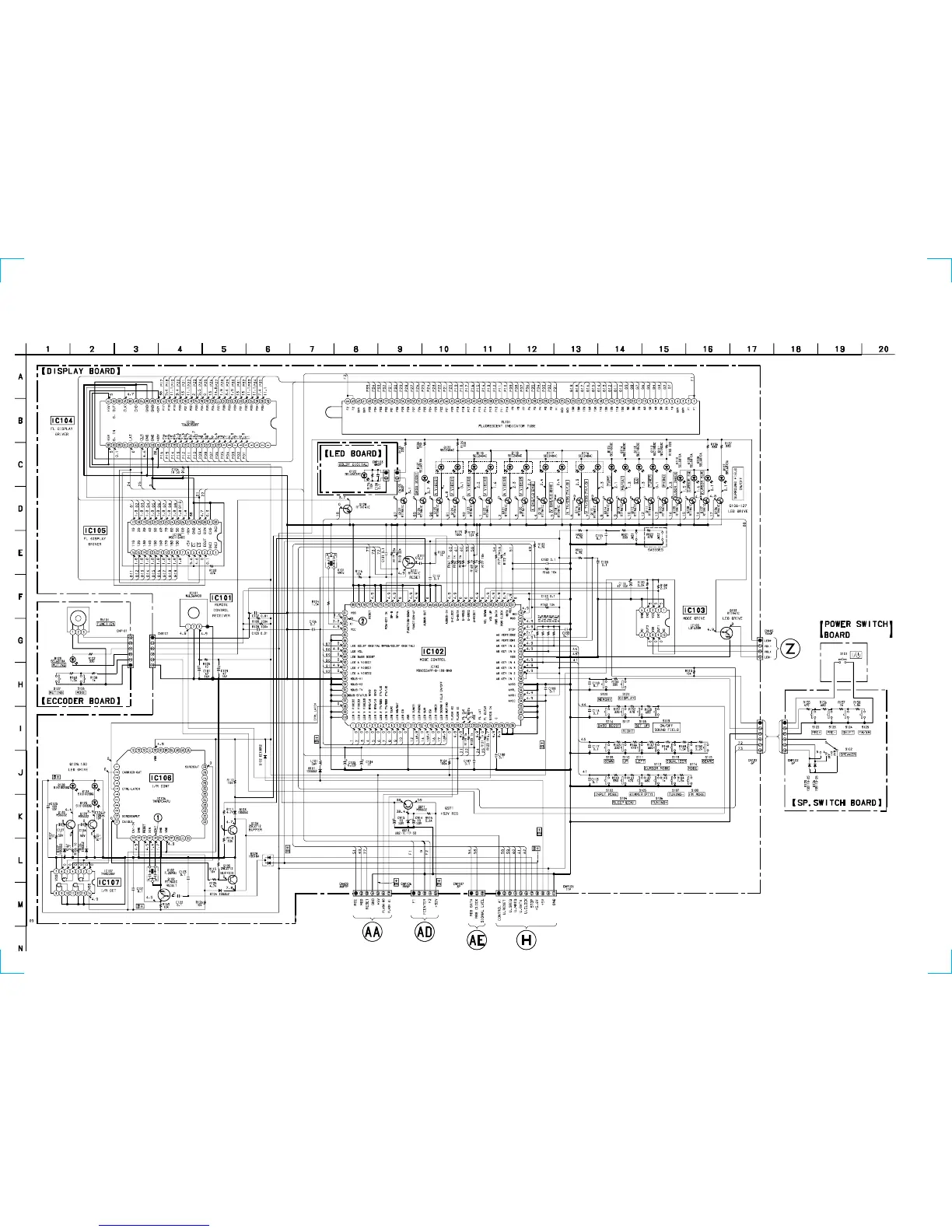

5-15. SCHEMATIC DIAGRAM – DISPLAY SECTION –
• See page 18 for Waveforms.
• See page 61 for IC Block Diagrams.
• See page 63 for IC Pin Functions.
(Page
36)
(Page
55)
(Page
52)
(Page 23)
(Page 36)
