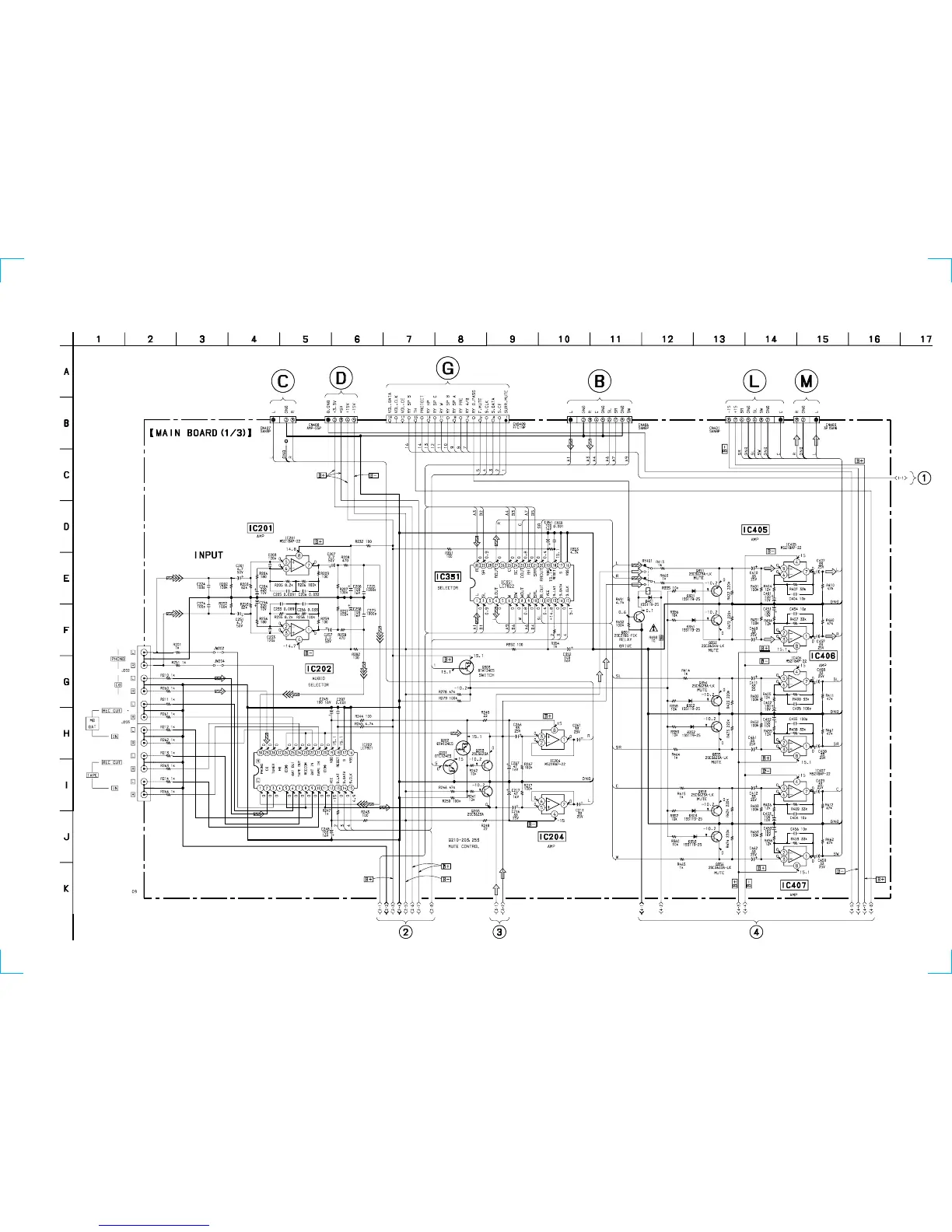

5-8. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION –
• See page 61 for IC Block Diagrams.
(Page
31)
(Page 21)
(Page 23)
(Page 22)
(Page 21)
(Page 36)(Page 36)
(Page 33)(Page 33) (Page 33)
