Sony STR-DA5400ES - Page 107

STR-DA5400ES
STR-DA5400ES
107107
– A-VIDEO Board –
SB
IC2208 XL (XOUT)
1 V/DIV, 20 ns/DIV
4 Vp-p
40.7 ns
ZE
IC5208 UK (XOUT)
1 V/DIV, 50 ns/DIV
80 ns
3.5 Vp-p
ZB
IC5002 A2 (XTAL)
1 V/DIV, 50 ns/DIV
81.4 ns
3 Vp-p
ZT
IC5202 A2 (XTAL)
1 V/DIV, 20 ns/DIV
40 ns
2.4 Vp-p
UB
IC6801 XI (OSCOUT)
1 V/DIV, 20 ns/DIV
22.1 ns
3.5 Vp-p
FB
IC3855 FK (CR/B)
(Color bar)
200 mV/DIV, 20 μs/DIV
H
0.6 Vp-p
FT
IC3855 FL (CB/R)
(Color bar)
200 mV/DIV, 20 μs/DIV
H
0.6 Vp-p
FE
IC3855 FM (Y/G)
(Color bar)
500 mV/DIV, 20 μs/DIV
H
1 Vp-p
FG
IC3855 SG (V)
(Color bar)
500 mV/DIV, 20 μs/DIV
1.2 Vp-p
FH
IC3604 [WY (XOUT)
1 V/DIV, 20 ns/DIV
31.1 ns
3.4 Vp-p
FI
IC3511 PG (XTALOUT)
1 V/DIV, 20 ns/DIV
4.5 Vp-p
35.3 ns
FK
IC3610 S (X1)
1 V/DIV, 100 ns/DIV
250 ns
3.2 Vp-p
– CONTROL Board –
RB
IC6002  (VIN3)
(Color bar)
500 mV/DIV, 20 μs/DIV
1.2 Vp-p
RT
IC6002  (VIN2)
(Color bar)
500 mV/DIV, 20 μs/DIV
1.2 Vp-p
RE
IC6002  (VOUT2)
(Color bar)
1 V/DIV, 20 μs/DIV
2.4 Vp-p
RG
IC6001  (CH1IN2)
(Color bar)
500 mV/DIV, 20 μs/DIV
H
1 Vp-p
RH
IC6001  (CH2IN2)
(Color bar)
200 mV/DIV, 20 μs/DIV
H
0.6 Vp-p
RI
IC6001 RH (CH3IN2)
(Color bar)
200 mV/DIV, 20 μs/DIV
H
0.6 Vp-p
RK
IC6001 X (CH3OUT)
(Color bar)
500 mV/DIV, 20 μs/DIV
H
1.4 Vp-p
RL
IC6001 XT (CH2OUT)
(Color bar)
500 mV/DIV, 20 μs/DIV
H
1.4 Vp-p
RM
IC6001 XG (CH1OUT)
(Color bar)
1 V/DIV, 20 μs/DIV
H
2 Vp-p
X
IC6007  (CV-1)
(Color bar)
500 mV/DIV, 20 μs/DIV
0.6 Vp-p
XB
IC6007 UE (CV-OUT1)
(Color bar)
500 mV/DIV, 20 μs/DIV
1.2 Vp-p

IC2513 S (4MHz(CLK out))
1 V/DIV, 100 ns/DIV
250 ns
3.4 Vp-p

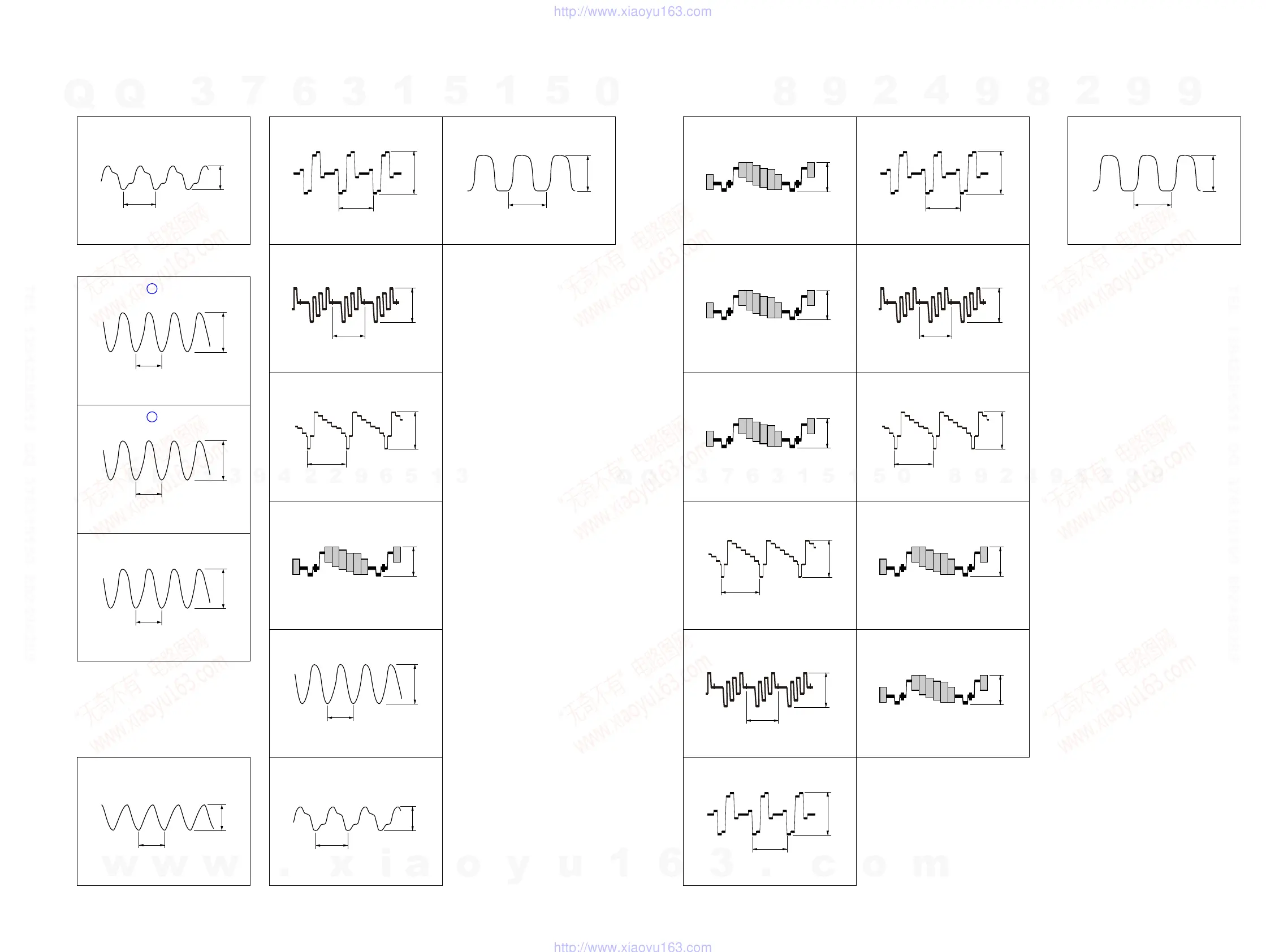

• Waveforms
– DIGITAL Board –
– DSP Board –
– DMPORT Board –
– D VIDEO Board –
