Sony STR-DA5400ES - Front Panel Block; A-VIDEO Board

STR-DA5400ES
18

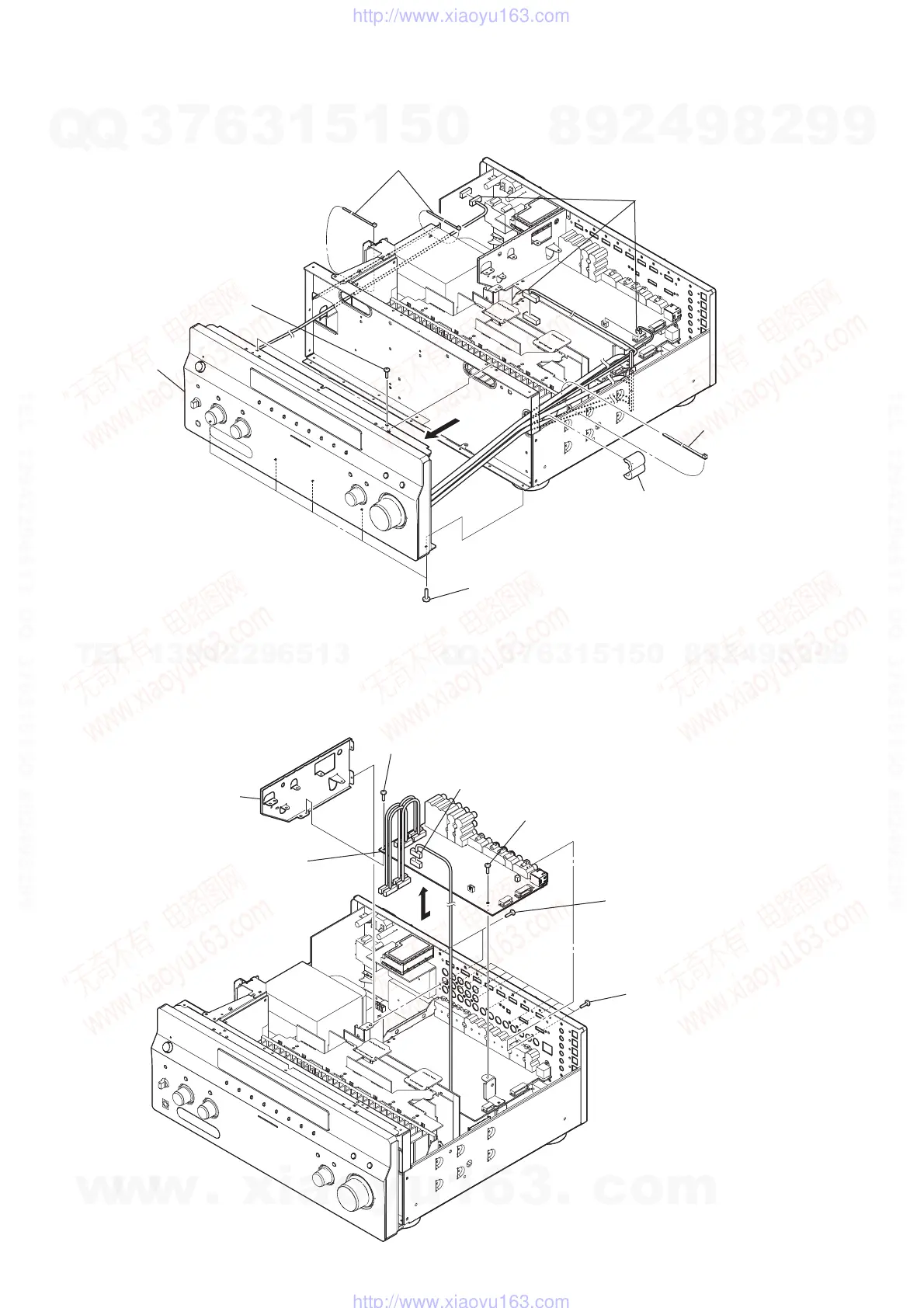

3-6. FRONT PANEL BLOCK
3-7. A-VIDEO BOARD

two screws
(BVTP3
×
8)

three connectors
(ANALOG board: CN607,
A-VIDEO board: CN6003,
AC board: CNP53)

five screws
(BVTP3
×
8)

front panel block

Cut two clamps.

Cut the clamp.

clamp filter (ferrite core)

two screws
(BV3
×
8 CU)

eight screws
(BVTP3
×
8)

screw
(BVTP3
×
8)

screw
(BVTP3
×
8)

bracket (WB)

A-VIDEO board

connector
(CN6008)

