STR-DA5400ES
10
SECTION 2
GENERAL
This section is extracted
from instruction manual.

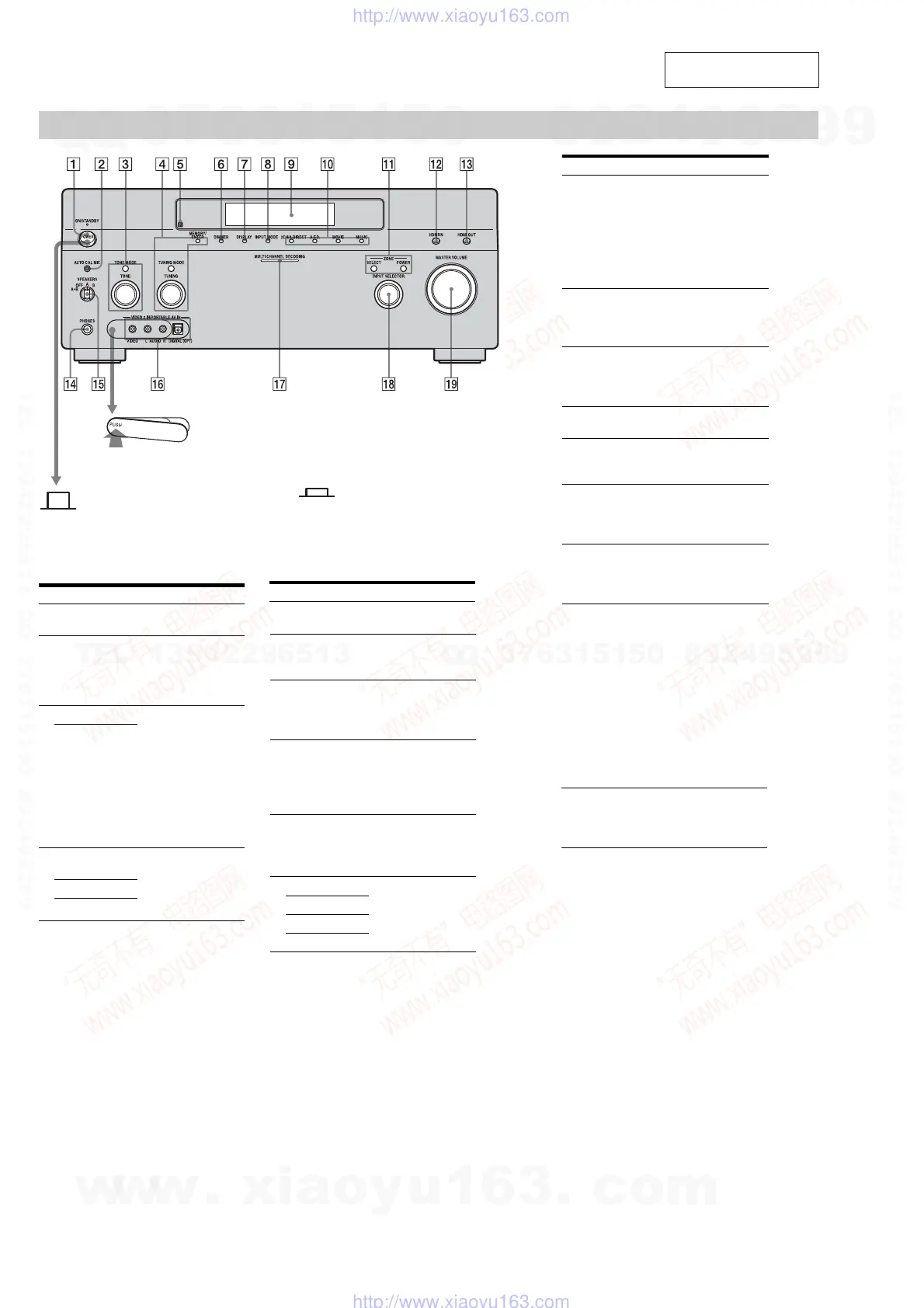

Front panel
To remove the cover
Press PUSH.
When you remove the cover, keep it out
of reach from children.
Status of the POWER button
Off
The receiver is turned off (initial
setting).
Press POWER to turn the receiver on.
You cannot turn the receiver on using
the remote.
On/Standby
Press
/ on the remote to turn the
receiver on or set it to the standby mode.
When you press POWER on the
receiver, the receiver will be turned off.
Name Function
" POWER Press to turn the
receiver on or off.
# AUTO CAL MIC
jack
Connects to the
supplied optimizer
microphone for the
Digital Cinema Auto
Calibration function.
$ TONE MODE Adjusts FRONT/
CENTER/
SURROUND/
SURROUND BACK
BASS and TREBLE.
Press TONE MODE
repeatedly to select
BASS or TREBLE,
then turn TONE to
adjust the level.
TONE
% MEMORY/
ENTER
Press to operate a tuner
(FM/AM) and satellite
radio (XM/SIRIUS)
(U.S.A./Canadian
model only).
TUNING MODE
TUNING
& Remote sensor Receives signals from
remote commander.
' DIMMER Press repeatedly to
adjust brightness of the
display.
( DISPLAY Press repeatedly to
select information
displayed on the
display.
) INPUT MODE Press to select the input
mode when the same
components are
connected to both
digital and analog jacks.
* Display
window
The current status of
the selected component
or a list of selectable
items appears here.
Name Function
+ 2CH/A.DIRECT Press to select sound
field.
A.F.D.
MOVIE
MUSIC
, ZONE/
POWER,
SELECT
Press SELECT
repeatedly to select
zone 2, zone 3 or main
zone. Each time you
press POWER, the
output signals for the
selected zone will be
turned on or off.
- HDMI IN Press to select the input
signal from the
component connected
to the HDMI IN jacks.
. HDMI OUT Press to select output
signal to the component
connected to the HDMI
OUT jacks.
/ PHONES jack Connects to
headphones.
0 SPEAKERS
(OFF/A/B/A+B)
Switch to OFF, A, B,
A+B of the front
speakers.
1 VIDEO 2 IN/
PORTABLE AV
IN jacks
Connect to a portable
audio/video component
such as a camcorder or
video game.
2 MULTI
CHANNEL
DECODING
lamp
Lights up when multi-
channel audio signals
are decoded.
Name Function
3 INPUT
SELECTOR
Turn to select the input
source to play back.
To select the input
source for zone 2 or
zone 3, press ZONE/
SELECT (
RB) to select
zone 2 or zone 3 first
(“ZONE 2 INPUT” or
“ZONE 3 INPUT”
appears on the display),
then turn INPUT
SELECTOR to select
the input source.
4 MASTER
VOLUME
Turn to adjust the
volume level of all
speakers at the same
time.
