161
STR-DA5400ES
SECTION 7
EXPLODED VIEWS
1 4-974-510-11 SCREW (+BV 3X8 CU)
2 3-701-748-00 CLAMP
3 1-500-386-11 FILTER, CLAMP (FERRITE CORE) (US, CND)
4 A-1538-912-A DC-DC BOARD, COMPLETE
5 4-227-843-03 SCREW (TP), FLAT HEAD
6 2-580-630-01 SCREW, +BVST 4X8
7 2-668-102-11 CASE
0 F1405 1-532-506-33 FUSE (T6.3AL/250V)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
CND : Canadian model
ECE : Continental European,
East European and
Russian models
(US, CND)
(AEP, ECE, UK)
F1405
not supplied
(DCDC2 board)
1
1
1
1
1
3
4
5
5
6
6
7
not
supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
DIGITAL board section
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.

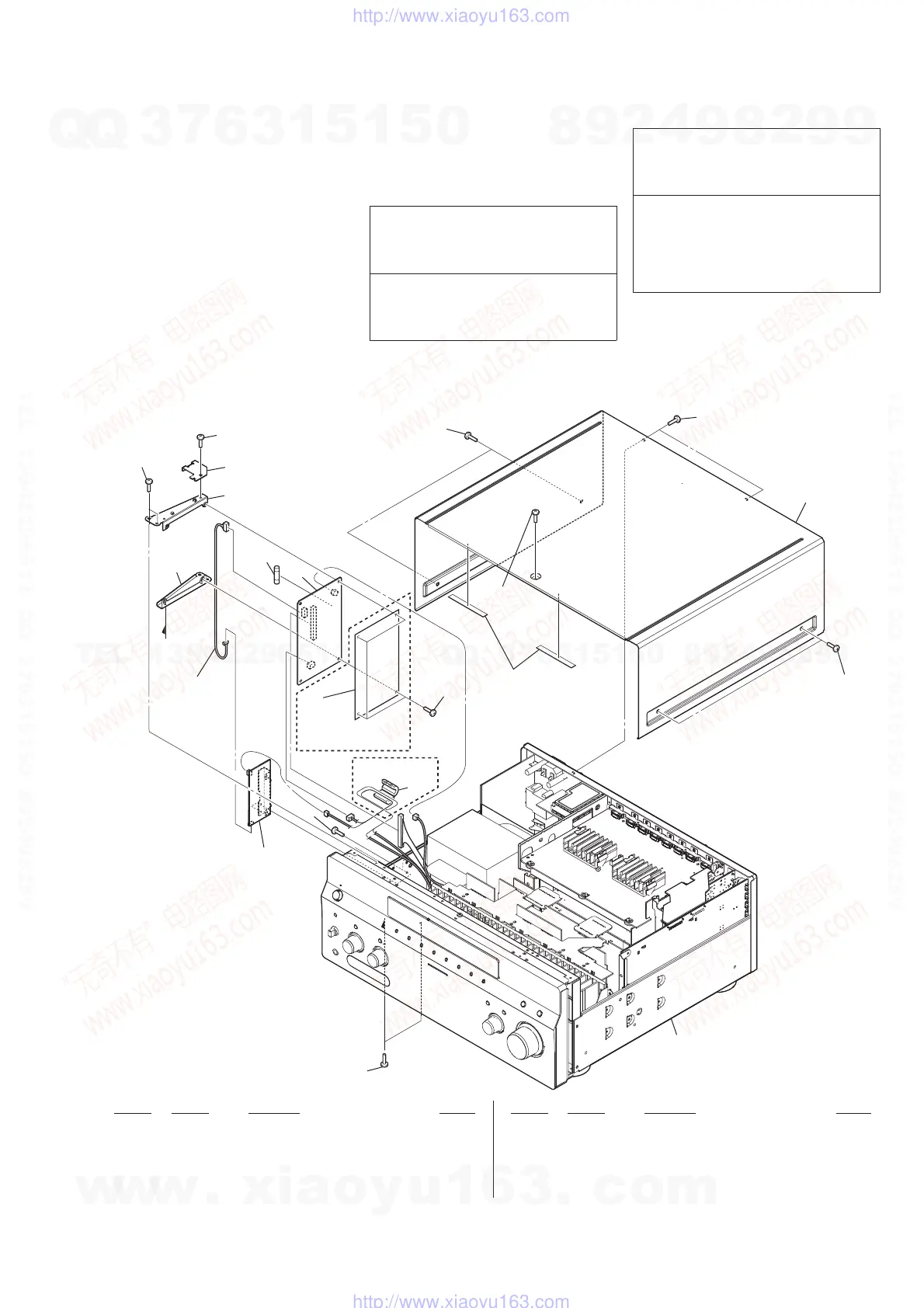

7-1. CASE SECTION
