STR-DA5400ES
151 X-2176-946-1 KNOB (VOL) ASSY
152 3-704-515-22 SCREW (BV/RING)
153 2-661-141-31 MENU KNOB
154 3-087-053-01 +BVTP2.6 (3CR)
156 X-4955-616-1 BUTTON (POWER) ASSY
157 A-1538-084-A DISPLAY BOARD, COMPLETE
158 3-087-053-11 +BVTP2.6 (3CR)
159 3-350-426-01 SPRING, RING
160 4-246-103-22 KNOB (SPEAKER)
161 2-893-374-01 SPRING, RING
162 A-1252-357-A SPSW BOARD, COMPLETE
164 3-701-748-00 CLAMP
165 4-237-065-01 CLAMP (L35)
J702 1-815-313-11 JACK (PHONES)
S713 1-418-400-11 ENCODER, ROTARY (TONE)
S714 1-418-400-11 ENCODER, ROTARY (TUNING)
S715 1-418-400-11 ENCODER, ROTARY (INPUT SELECTOR)
S722 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
156
157
152
153
154
154
154
154
158
154
154
154
154
#1
#1
not supplied
(MIC board)
not supplied
not supplied
not supplied
not supplied
not supplied
(MAIN VOL board)
not supplied
(VIDEO 3 board)
S715
S714
S713
S722
not supplied
not supplied
(KEY1 board)
supplied
with S722
front panel section
supplied with S715
supplied
with S714
supplied
with S713
not supplied
not supplied
supplied with
J702
not supplied
(ACSW board)
151
159
not supplied
J702
154
165
164
164
164
161
162
160

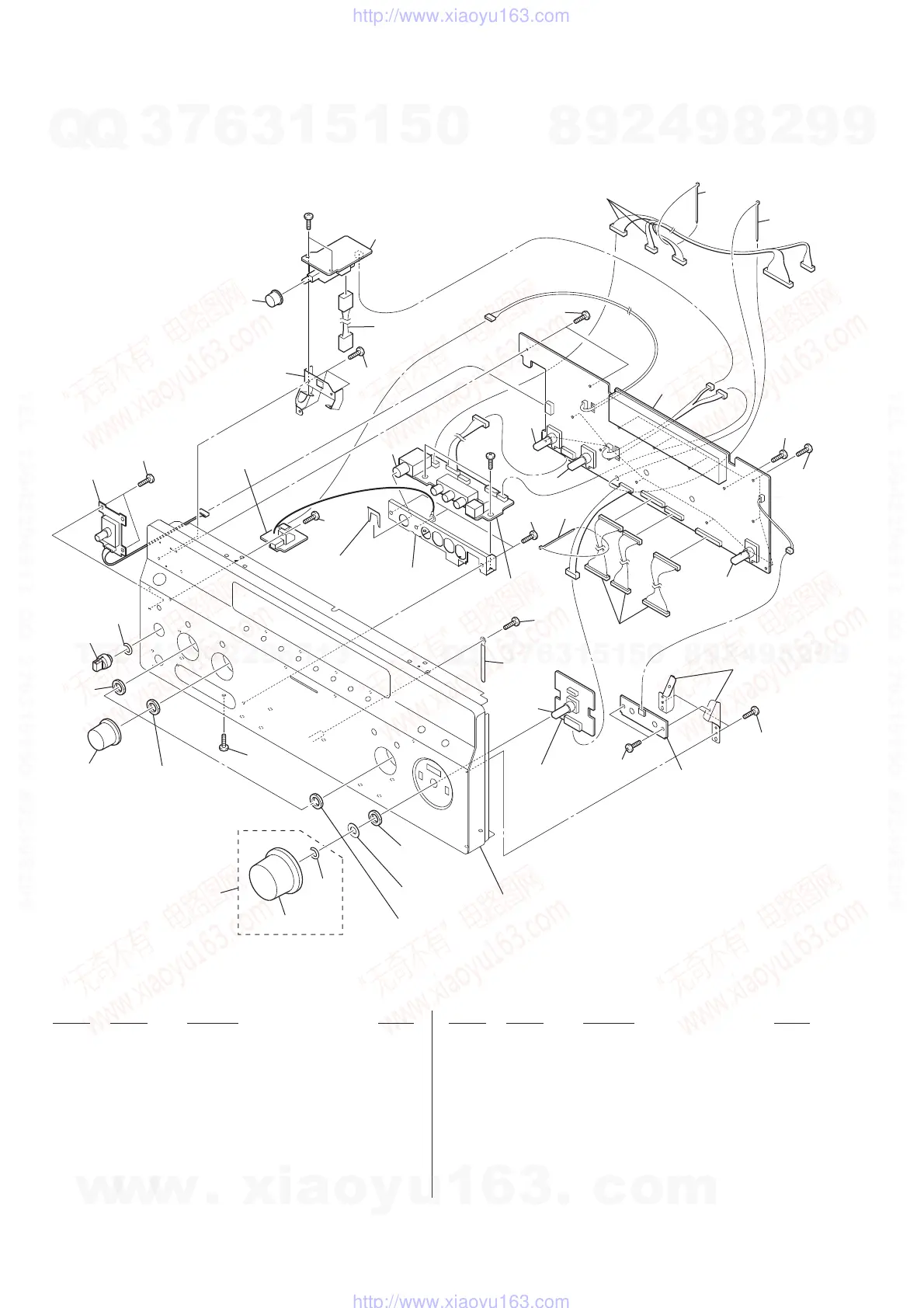

7-4. DISPLAY BOARD SECTION
