Sony STR-DA5400ES - ANALOG Board; Heat Sink Block

STR-DA5400ES
19

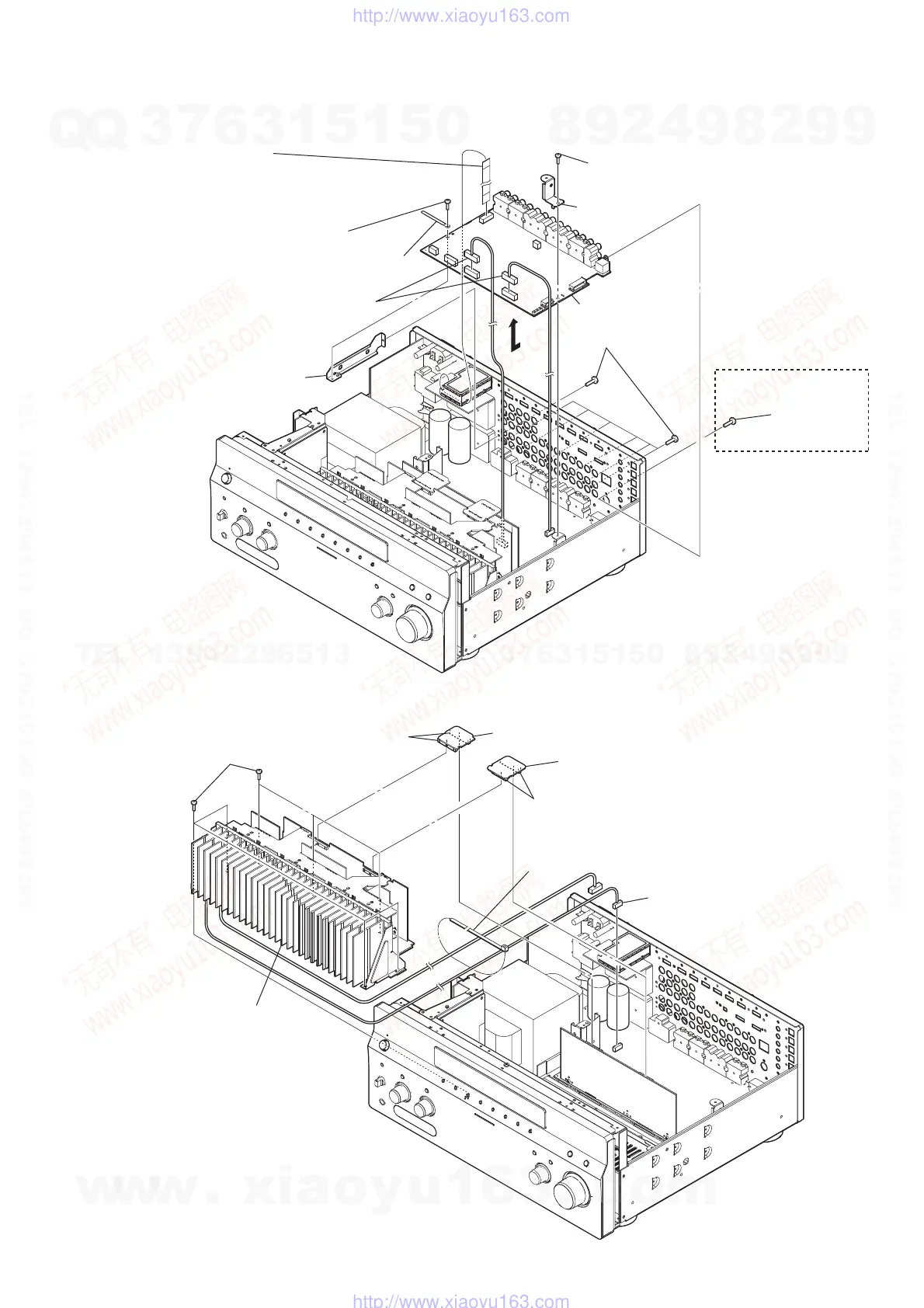

3-8. ANALOG BOARD

screw
(B3
×
6)

seven screws
(BVTP3
×
8)

screw
(BVTP3
×
8)

two connectors
(CN605, CN608)

wire (flat type) (9core)
(US, Canadian models),
wire (flat type) (11core)
(except US, Canadian models)
(tuner (FM/AM), ANALOG board: CN603)
(US, Canadian models)

screw
(BVTP3
×
8)

clamp (L35)
R
bracket (side)
RB
ANALOG board

reinforcement
(main)

3-9. HEAT SINK BLOCK

connector
(CN1405)

Cut the clamp.

two connectors
(CN1207, CN1209)

two connectors
(CN1205, CN1206)

seven screws
(BV3
×
8 CU)

CONNECTOR1 board

heat sink block

CONNECTOR2 board
