Sony STR-DB940 User Manual

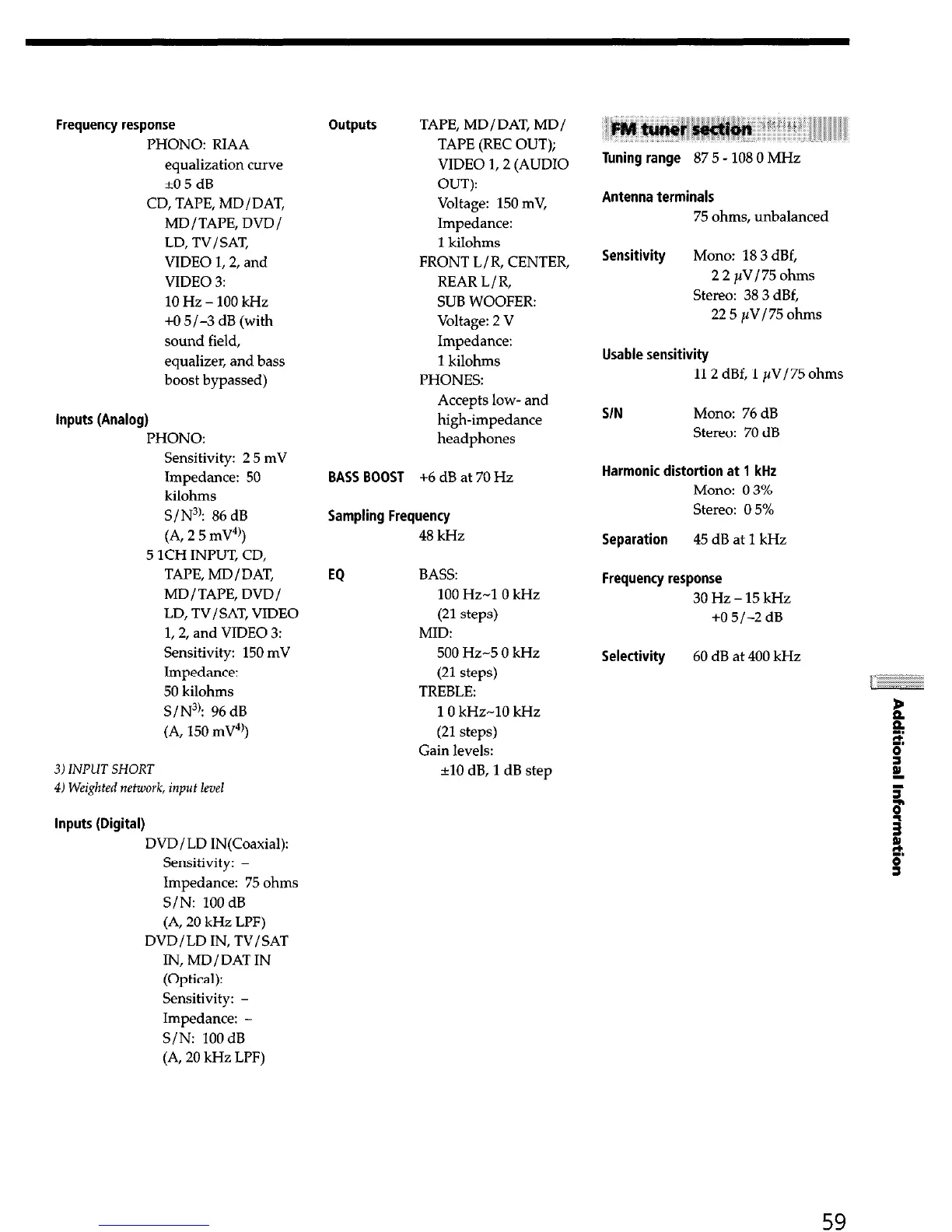

Frequency response
PHONO: RIAA
equalization curve
+05dB
CD, TAPE, MD / DAT,
MD/TAPE, DVD/
LD, TV/SAT,
VIDEO 1,2, and
VIDEO 3:
10 Hz - 100 kHz
+0 5/-3 dB (with
sound field,
equalizer, and bass
boost bypassed)
inputs (Analog)
I’HONO:
Sensitivity: 2 5 mV
Impedance: 50
kilohms
S/N3): 86 dB
(A, 2 5 mV4))
5 ICH INPUT, CD,
TAPE, MD / DAT,
MD / TAPE, DVD /
LD, TV/ SAT, VIDEO
1,2, and VIDEO 3:
Sensitivity: 150 mV
Impedance:
50 kilohms
S/ N3): 96 dB
(A
,
150 mV4))
3) INPUT SHORT
4) Weighted network, input level
Inputs (Digital)
DVD/LD IN(Coaxia1):
Sensitivity: -
Impedance: 75 ohms
S/N: 100dB
(A, 20 kHz LPF)
DVD/LD IN, TV/SAT
IN, MD/DAT IN
(Optical):
Sensitivity: -
Impedance: -
S/N: 100dB
(A, 20 kHz LPF)
outputs TAPE, MD/DAT, MD/
TAPE (REC OUT);
VIDEO 1,2 (AUDIO
OUT):
Voltage: 150 mV,
Impedance:
1 kilohms
FRONT L/R, CENTER,
REAR L / R,
SUB WOOFER:
Voltage: 2 V
Impedance:
1 kilohms
PHONES:
Accepts low- and
high-impedance
headphones
BASS BOOST +6 dB at 70 Hz
Sampling Frequency
48 kHz
EQ
BASS:
100 Hz-l 0 kHz
(21 steps)
MID:
500 Hz-5 0 kHz
(21 steps)
TREBLE:
10 kHz-10 kHz
(21 steps)
Gain levels:
+lO dB, 1 dB step
Tuning range 87 5 - 108 0 MHz
Antenna terminals
75 ohms, unbalanced
Sensitivity Mono:
18 3 dBf,
22yVl75ohms
Stereo:
38 3 dBf,
22 5 yV/75 ohms
Usable sensitivity
112 dBf, 1 yV / 75 ohms
SIN Mono: 76dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 03%
Stereo: 0 5%
Separation 45 dB at 1 kHz
Frequency response
30 Hz - 15 kHz
+0 5/-2 dB
Selectivity 60 dB at 400 kHz
59

Sony STR-DB940 Specifications

General

Type	AV Receiver
Impedance	8 ohms
Frequency Response	10Hz to 100kHz
Digital Inputs	3 (2 optical, 1 coaxial)
Surround Sound	Dolby Digital, DTS
Tuning Range	FM
Input Sensitivity	150mV (line)
Video Connections	Composite, S-Video
