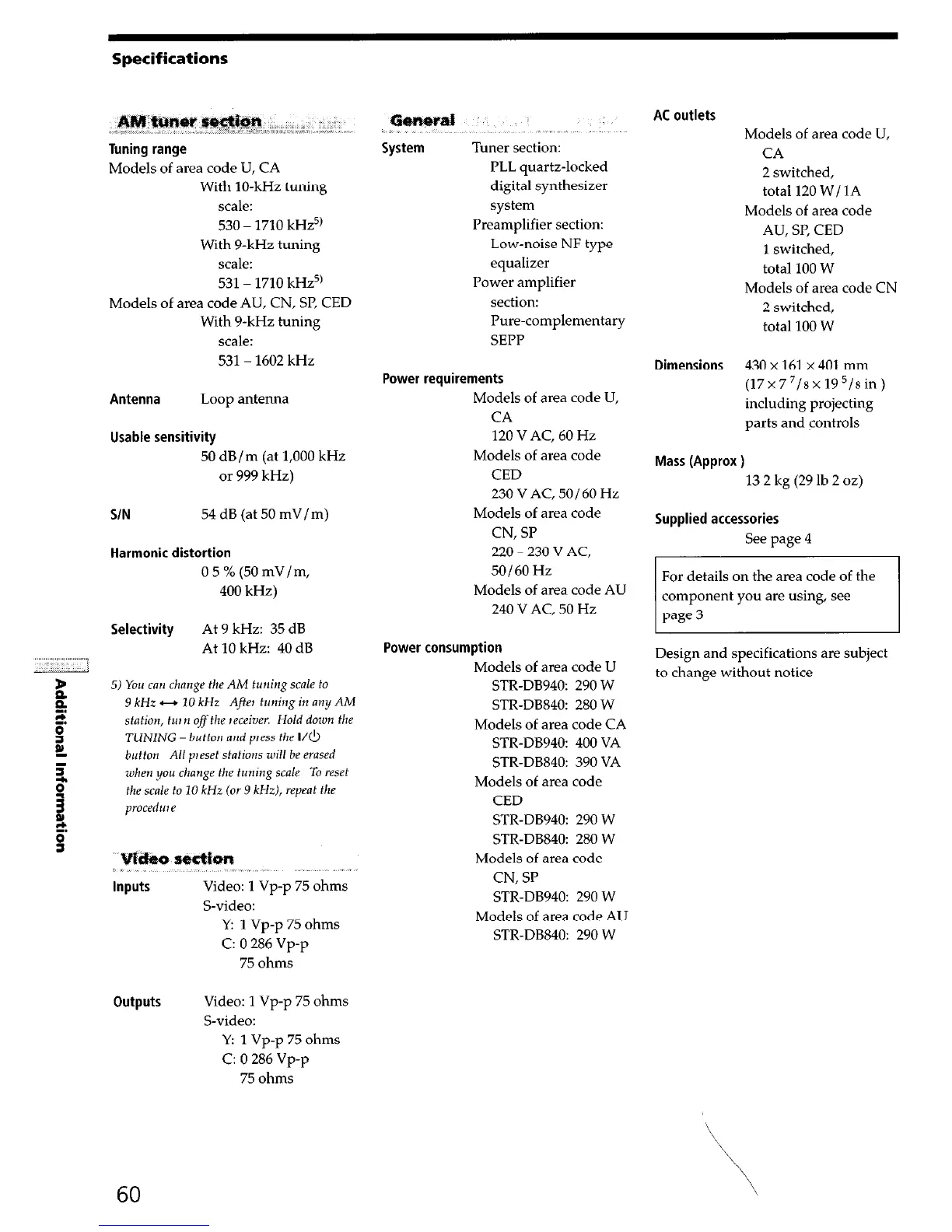

Specifications
Tuning range
Models of area code U, CA
With IO-kHz tuning
scale:
530 - 1710 kHz5)
With 9-kHz tuning
scale:
531- 1710 kHz5)
Models of area code AU, CN, SF, CED
With 9-kHz tuning
scale:
531- 1602 kHz
Antenna Loop antenna
Usable sensitivity
120 V AC, 60 Hz
50 dB/m (at 1,000 kHz
Models of area code
or 999 kHz) CED
SIN
54 dB (at 50 mV/m)
Harmonic distortion
0 5 % (50 mV/m,
400 kHz)
Selectivity
At 9 kHz: 35 dB
At 10 kHz: 40 dB
5) You can change the AM tuning scale to
9 kHz u 10 kHz Afta tuning in my AM
station, tul n off the receiver. Hold down the
TUNING -button and p,ess the I&
button All preset stations will be erased
when you change the tuning scale To reset
the scale to 10 kHz (or 9 kHzJ, repeat the
proceduw
Inputs Video: 1 Vp-p 75 ohms
S-video:
Y: 1 Vp-p 75 ohms
C: 0 286 Vp-p
75 ohms
System Tuner section:
PLL quartz-locked
digital synthesizer
system
Preamplifier section:
Low-noise NF type
equalizer
Power amplifier
section:
Pure-complementary
SEEP
Power requirements
Models of area code U,
CA
230 V AC, 50 / 60 Hz
Models of area code
CN, SF’
220 - 230 V AC,
50/60 Hz
Models of area code AU
240 V AC, 50 Hz
Power consumption
Models of area code U
STR-DB940: 290 W
STR-DB840: 280 W
Models of area code CA
STR-DB940: 400 VA
STR-DB840: 390 VA
Models of area code
CED
STR-DB940: 290 W
STR-DB840: 280 W
Models of area code
CN, SF
STR-DB940: 290 W
Models of area code AU
STR-DB840: 290 W
AC outlets
Models of area code U,
CA
2 switched,
total 120 W/lA
Models of area code
AU, SE, CED
1 switched,
total 100 W
Models of area code CN
2 switched,
total 100 W
Dimensions 430 x 161 x 401 mm
(17x77/8x195/sin)
including projecting
parts and controls
Mass (Approx )
13 2 kg (29 lb 2 oz)
Supplied accessories
See page 4
For details on the area code of the
component you are using, see
page 3
Design and specifications are subject
to change without notice
outputs Video: 1 Vp-p 75 ohms
S-video:
Y: 1 Vp-p 75 ohms
C: 0 286 Vp-p
75
ohms
60
To Next Page
