Sony STR-DE915 - Printed Wiring Boards - Video Section; Video Section Printed Wiring Boards

STR-DE915/TA-V909/VE910

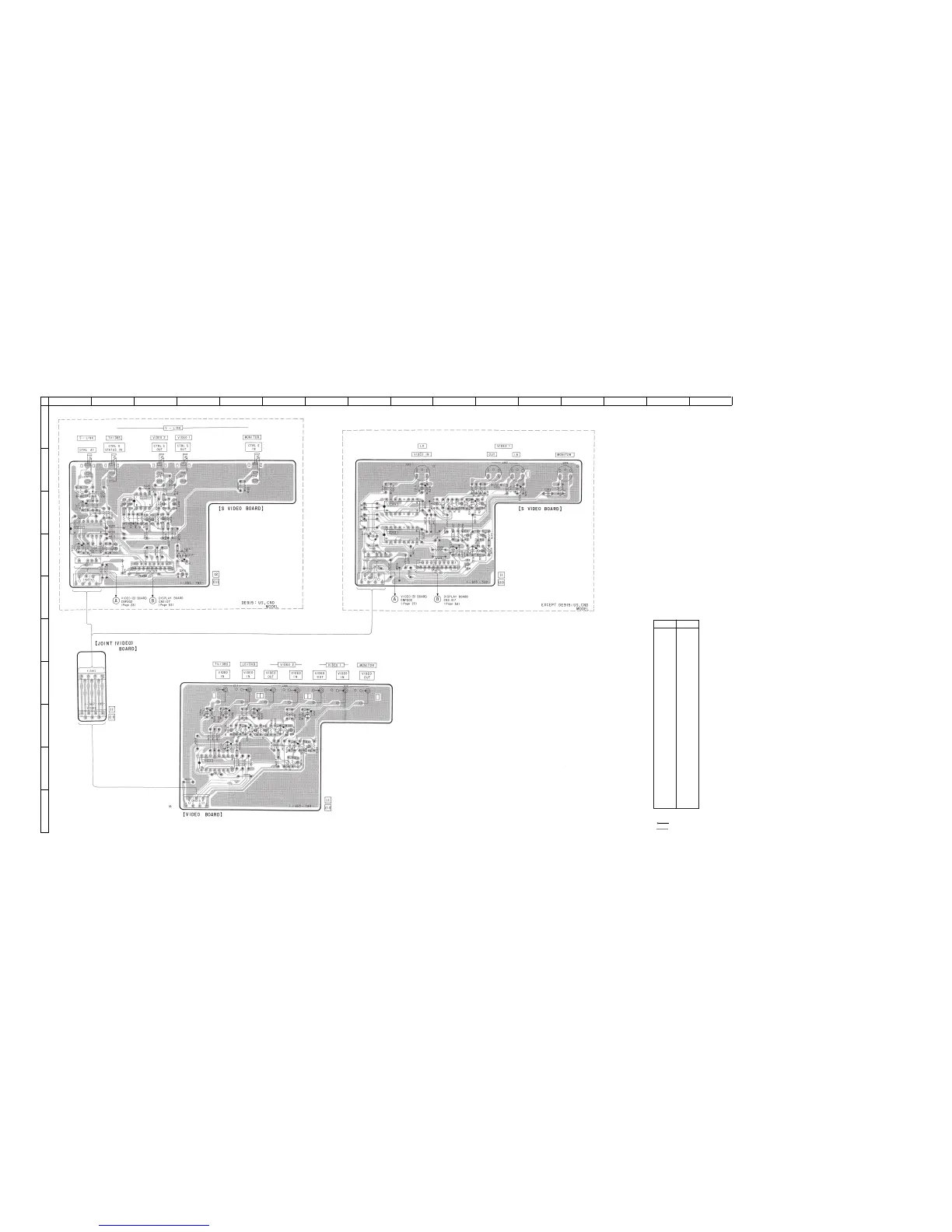

2-6. PRINTED WIRING BOARD — VIDEO SECTION —
— 19 — — 20 — — 21 —
12
A
B
C
D
E
F
G
H
I
J
345678910111213141516
Ref. No. Location
D201 D-4
D210 C-2
IC201 C-3
IC203 C-9
IC204 C-9
IC211 I-4
IC223 C-1
Q1 C-10
Q201 D-10
Q201 D-4
Q205 C-3
Q206 D-11
Q207 D-11
Q208 C-10
Q209 C-3
Q210 D-11
Q211 C-11
Q212 C-3
Q213 D-2
Q214 I-6
Q215 H-6
Q216 H-5
Q217 H-7
Q218 H-8
Q219 H-5
Q220 C-2
Q222 C-3
Q223 C-3
Q225 C-2
Q226 C-2
• Semiconductor
Location
Note :
• : parts extracted from the component side.
• : pattern on the side which is seen.
• Abbreviation
CND : Canadian
