STR-DE915/TA-V909/VE910

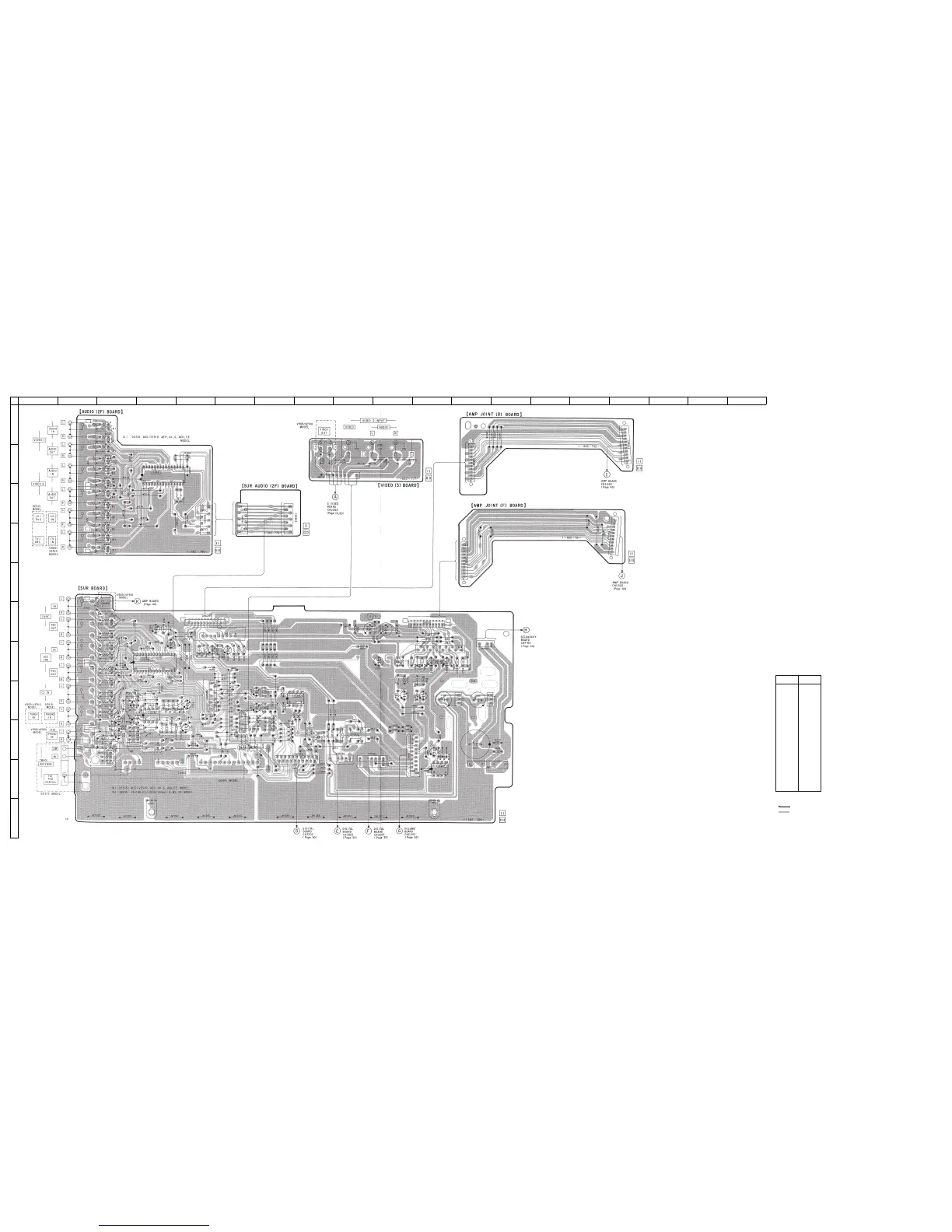

2-7. PRINTED WIRING BOARD — SURROUND SECTION —
Note :
• : parts extracted from the component side.
• : pattern on the side which is seen.
• Abbreviation
CND : Canadian AUS : Australian
CH : Chinese G : German
AED : North European EE : East European
MY : Malaysia SP : Singapore
Ref. No. Location
D401 I-9
D402 J-13
D403 I-6
IC301 G-4
IC302 H-4
IC303 B-4
IC304 H-8
IC401 H-12
IC402 H-13
IC501 G-11
IC601 F-6
IC602 J-11
Q401 H-7
Q410 I-8
Q411 I-7
Q451 H-7
Q503 G-10
• Semiconductor
Location
— 22 — — 23 — — 24 —
12
A
B
C
D
E
F
G
H
I
J
K
345678910111213141516171819
