Sony STR-DE915 - Exploded Views - Back Panel Section; Back Panel Section Exploded View

— 73 —

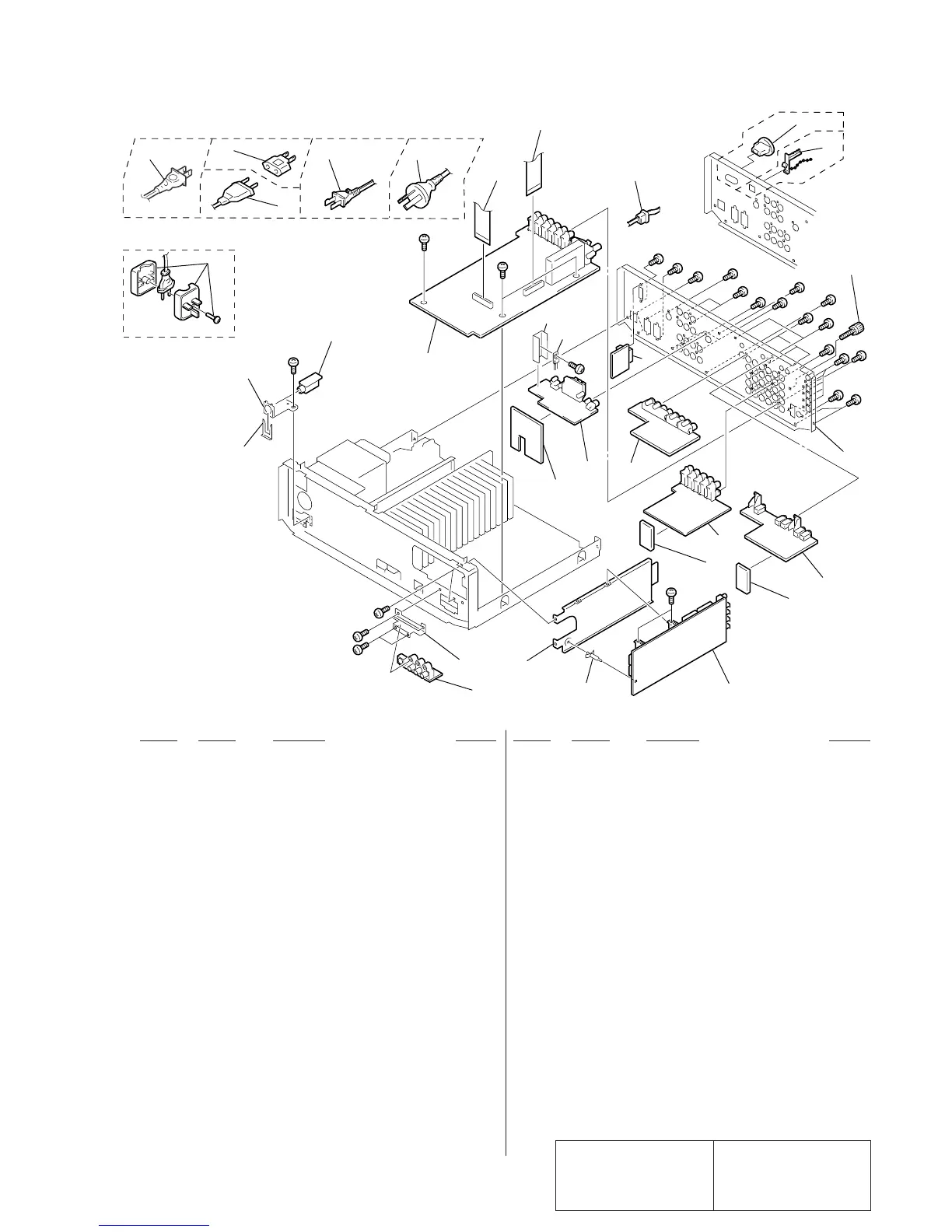

3-2. BACK PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
CNJ909
#1
#1
#1
#2
#1
#1
not supplied
not supplied
supplied with J701
not
supplied
6867
63
65
51
52
64
53
66
62
54
59
61
58
57
56
55
60
60
60
69
60
E, PX MODEL
US, CND MODEL AUS MODEL
EXCEPT US, CND,
PX, CH MODEL
CH MODEL
70
UK MODEL
EXCEPT US, CND,
AUS, CH MODEL
AUS MODEL
#1
#1
#1
71
Q748
72
* 51 1-665-786-11 AUDIO (2F) BOARD
* 52 1-665-776-11 SUR-AUDIO (2F) BOARD
* 53 1-665-787-11 S-A-P BOARD
* 54 A-4398-235-A SP (2F) BOARD, COMPLETE
(VE910:AEP,UK,G,AED,EE)
* 54 A-4398-250-A SP (2F) BOARD, COMPLETE (DE915:AUS)
* 54 A-4398-262-A SP (2F) BOARD, COMPLETE
(DE915:US,CND,PX)
* 54 A-4398-295-A SP (2F) BOARD, COMPLETE
(V909/VE910:E,SP,MY)
* 55 1-665-779-11 HEADPHONE BOARD
* 56 A-4398-236-A SUR BOARD, COMPLETE
(VE910:AEP,UK,G,AED,EE)
* 56 A-4398-266-A SUR BOARD, COMPLETE (DE915:US,CND,PX)
* 56 A-4398-279-A SUR BOARD, COMPLETE
(V909/VE910:E,SP,MY)
* 56 A-4398-287-A SUR BOARD, COMPLETE (DE915:AUS)
57 1-773-116-11 WIRE (FLAT TYPE) (19 CORE)(23cm)
58 1-773-174-11 WIRE (FLAT TYPE) (21 CORE)(9cm)
* 59 3-703-244-00 BUSHING (2104), CORD
! 60 1-696-847-11 CORD, POWER (AUS)
! 60 1-769-743-11 CORD, POWER (US,CND)
! 60 1-769-744-11 CORD, POWER (EXCEPT US,CND,AUS,CH)
! 60 1-782-464-21 CORD, POWER (CH)
61 4-956-370-12 BAND, PLUG FIXED (AUS)
* 62 4-989-882-01 PANEL, BACK (VE910:EXCEPT E)
* 62 4-989-882-11 PANEL, BACK (VE910:E)
* 62 4-989-882-21 PANEL, BACK (V909)
* 62 4-989-885-01 PANEL, BACK (DE915:US)
* 62 4-989-885-11 PANEL, BACK (DE915:CND)
* 62 4-989-885-21 PANEL, BACK (DE915:AUS)
* 62 4-989-885-31 PANEL, BACK (DE915:PX)
* 63 A-4398-274-A DIGITAL BOARD, COMPLETE (DE915)
* 63 A-4403-423-A DIGITAL BOARD, COMPLETE (V909/VE910)
* 64 1-665-784-11 VIDEO BOARD
* 65 1-667-185-11 JOINT (VIDEO) BOARD
* 66 A-4398-229-A S VIDEO BOARD, COMPLETE (DE915:US,CND)
* 66 A-4398-251-A S VIDEO BOARD, COMPLETE (DE915:AUS,PX)
* 66 A-4398-285-A S VIDEO BOARD, COMPLETE (V909/VE910)
* 67 1-665-777-11 VIDEO (3) BOARD
* 68 4-954-051-41 HOLDER, PC BOARD
! 69 1-569-008-11 ADAPTOR, CONVERSION 2P (E,PX)
! 70 1-770-019-11 ADAPTOR, CONVERSION 3P (UK)
* 71 1-665-788-11 VOLSEL BOARD (DE915:PX/VE910:E)
72 4-947-010-01 SCREW, FEEDER FIXED
! CNJ909 1-251-416-11 OUTLET, AC (AUS)
! CNJ909 1-526-794-11 OUTLET, AC (EXCEPT US,CND,AUS,PX,CH)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
