Sony STR-DE915 - Exploded Views - Front Panel Section; Front Panel Section Exploded View

— 72 —
SECTION 3
EXPLODED VIEWS
Note:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Abbreviation
CND : Canadian AUS: Australian
CH : Chinese G : German
AED : North European EE : East European
MY : Malaysia SP : Singapore

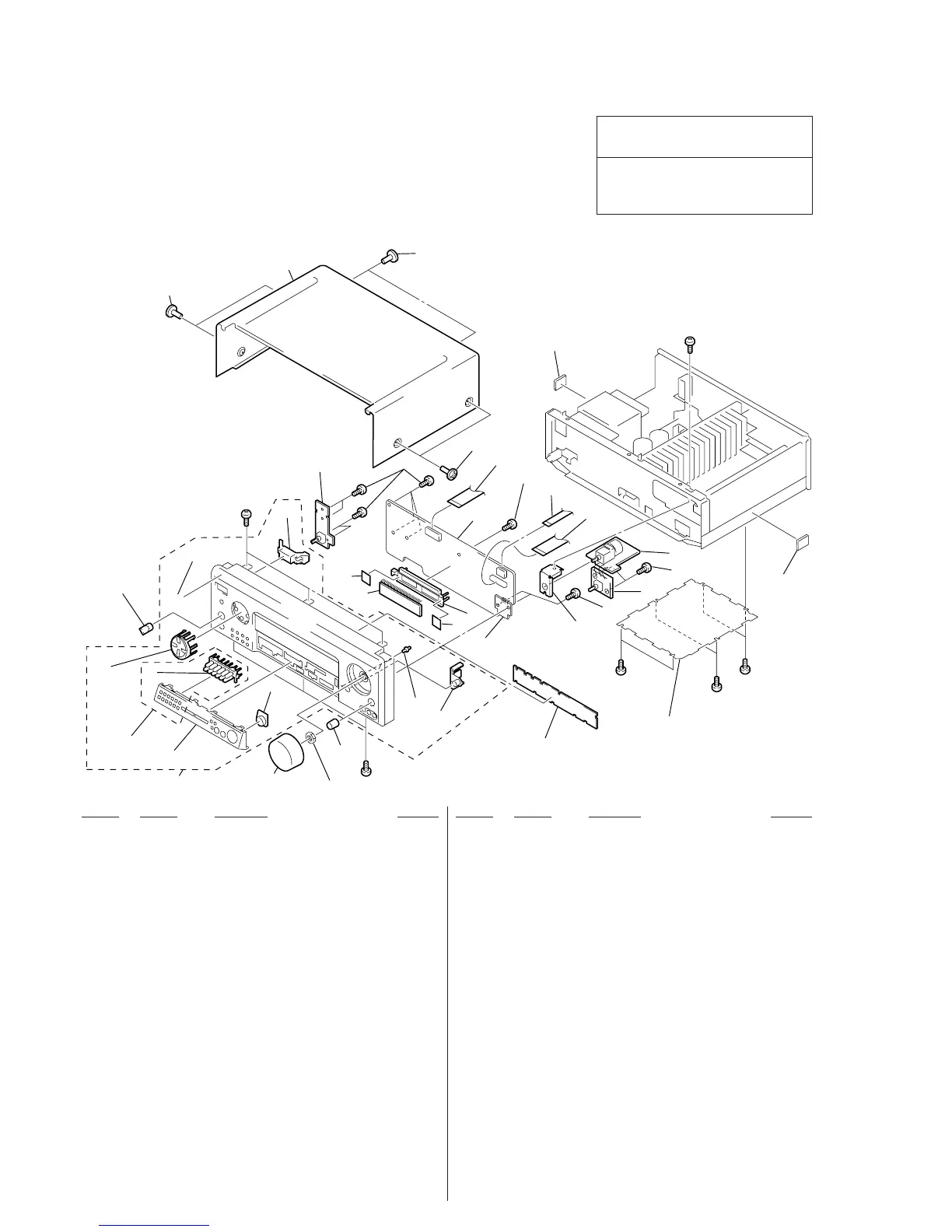

3-1. FRONT PANEL SECTION
•A : L.B Board
SONY
SONY
12
13
12
14
14
18
16
16
17
19
20
3
2
1
7
6
5
4
#1
supplied with RV401
16
11
9
8
10
23
#1
FL101
16
22
12
25
23
24
21
15
#1
not supplied
(including •A)
•A
#1
#1
#1
26
not
supplied
DE915
MODEL
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-980-639-01 KNOB (R14) (BLACK)(DE915/VE910)
1 4-980-639-31 KNOB (R14) (GOLD)(V909)
2 X-4947-074-1 KNOB (R48) ASSY (BLACK)(DE915)
2 X-4948-458-1 KNOB (ZN) ASSY (BLACK)(VE910)
2 X-4948-464-1 KNOB (ZN) ASSY (GOLD)(V909)
3 X-4948-455-1 PANEL ASSY, FRONT (BLACK)(DE915:US,CND)
3 X-4948-456-1 PANEL ASSY, FRONT (GOLD)(V909)
3 X-4948-463-1 PANEL ASSY (C9), FRONT (BLACK)(VE910)
3 X-4948-602-1 PANEL ASSY, FRONT (BLACK)(DE915:PX)
3 X-4948-603-1 PANEL ASSY, FRONT (BLACK)(DE915:AUS)
4 4-989-850-01 BUTTON (BB) (BLACK)(DE915/VE910)
4 4-989-850-11 BUTTON (BB) (GOLD)(V909)
5 4-989-842-01 INDICATOR (BB)
6 4-989-852-01 RING (SUR) (BLACK)(DE915/VE910)
6 4-989-852-11 RING (SUR) (GOLD)(V909)
7 4-989-846-01 BUTTON (12)(BLACK)(DE915)
8 3-008-600-11 EMBLEM (5-AR), SONY (BLACK)(DE915)
8 4-979-587-01 EMBLEM (NO.5), SONY (BLACK)(VE910)
8 4-979-587-11 EMBLEM (NO.5), SONY (GOLD)(V909)
9 4-980-109-01 BUTTON (P-M) (BLACK)(VE910)
9 4-980-109-41 BUTTON (P-M) (GOLD)(V909)
9 4-989-843-01 BUTTON (P-T) (BLACK)(DE915)
10 4-957-383-01 KNOB (F14) (BLACK)(DE915/VE910)
10 4-957-383-21 KNOB (F14) (GOLD)(V909)
* 11 1-665-775-11 SP SW BOARD
12 3-704-366-01 SCREW (CASE) (M3X8)(BLACK)(DE915/VE910)
12 3-704-366-11 SCREW (CASE) (M3X8) (GOLD)(V909)
* 13 4-982-682-01 CASE (414532) (BLACK)(DE915)
13 X-4947-722-1 CASE ASSY (BLACK)(VE910)
13 X-4947-723-1 CASE ASSY (GOLD)(V909)
14 4-985-642-01 CUSHION
* 15 4-989-878-01 BRACKET (VOL)
16 4-951-620-01 SCREW (2.6X8), +BVTP
* 17 1-665-815-11 BALANCE BOARD
* 18 1-665-774-11 VOLUME BOARD
19 1-773-174-11 WIRE (FLAT TYPE) (21 CORE)(46cm)
20 1-773-057-11 WIRE (FLAT TYPE) (17 CORE)
* 21 A-4398-225-A DISPLAY BOARD, COMPLETE (DE915:US,CND)
* 21 A-4398-246-A DISPLAY BOARD, COMPLETE (DE915:AUS)
* 21 A-4398-281-A DISPLAY BOARD, COMPLETE (DE915:PX)
* 21 A-4398-284-A DISPLAY BOARD, COMPLETE (V909/VE910)
22 1-773-107-11 WIRE (FLAT TYPE) (19 CORE)(17cm)
* 23 4-921-941-01 CUSHION (FL)
* 24 4-990-797-01 HOLDER (FL)
* 25 1-665-780-11 SW BOARD
26 4-989-864-41 ESCUTCHEON (COVER)(BLACK)(DE915)
26 4-991-019-01 ESCUTCHEON (COVER)(BLACK)(VE910)
26 4-991-019-11 ESCUTCHEON (COVER)(GOLD)(V909)
FL101 1-517-671-11 INDICATOR TUBE, FLUORESCENT
