Sony STR-DE915 - Printed Wiring Boards - Digital Section; Digital Section Printed Wiring Boards

STR-DE915/TA-V909/VE910

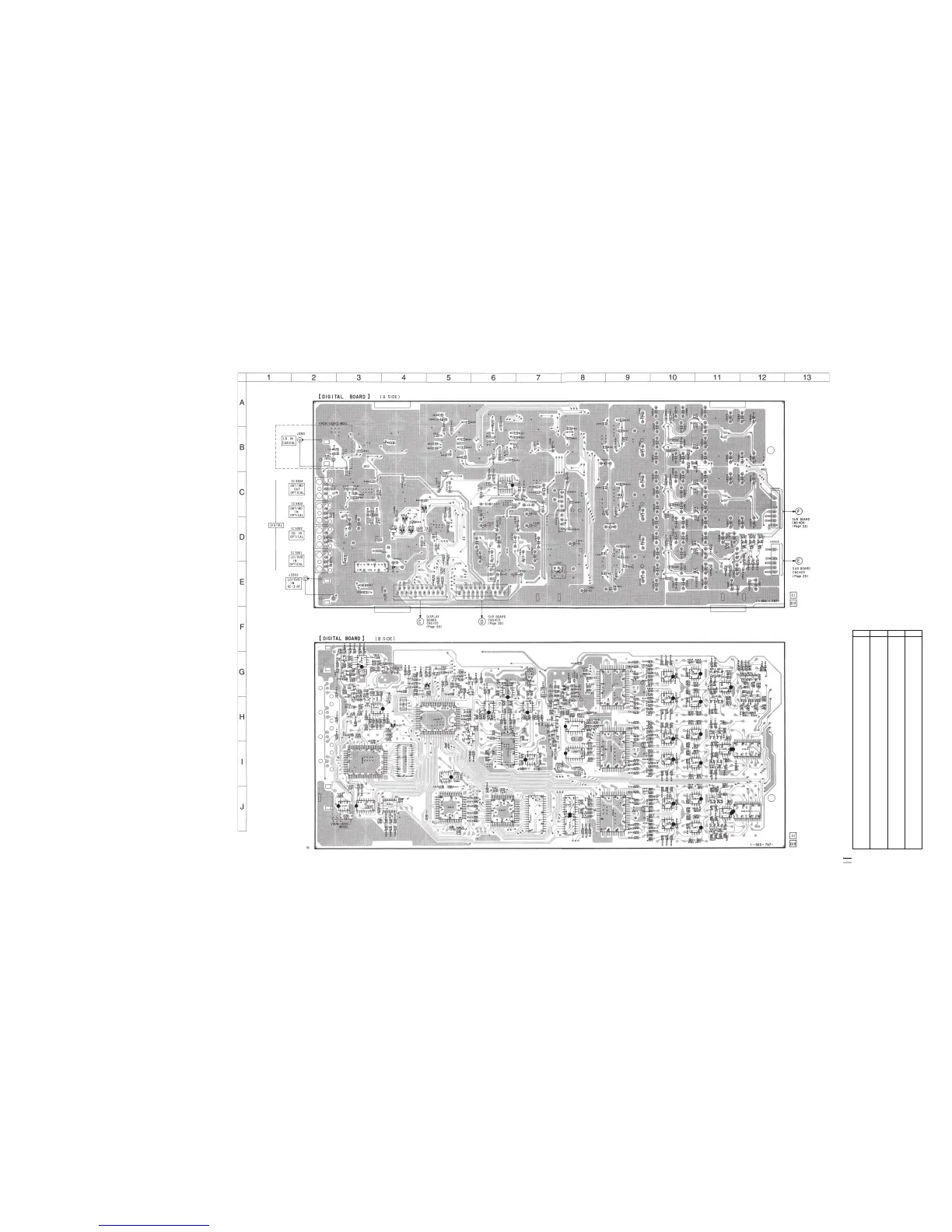

2-9. PRINTED WIRING BOARD — DIGITAL SECTION —
• : parts extracted from the component side.
•
: pattern on the side which is seen.
— 29 — — 30 — — 31 — — 32 —
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D3303 H-4
D3401 G-8
D3402 D-4
D3404 C-4
D3407 G-5
D3409 C-4
D3410 D-4
IC3101 G-6
IC3102 H-6
IC3103 H-7
IC3104 I-6
IC3105 E-6
IC3106 G-7
IC3107 I-7
IC3108 C-6
IC3301 D-2
IC3302 D-2
IC3303 C-2
IC3304 C-2
IC3305 G-3
IC3306 H-3
IC3307 G-4
IC3308 I-3
IC3309 I-4
IC3311 J-4
IC3313 J-3
IC3314 J-3
IC3401 G-9
IC3402 I-9
IC3403 J-9
IC3407 I-8
IC3408 H-8
IC3409 C-8
IC3410 J-5
IC3411 J-7
IC3412 J-6
IC3413 H-5
IC3414 J-8
IC3417 J-8
IC3425 I-5
IC3501 G-10
IC3502 H-11
IC3503 G-10
IC3504 G-11
IC3505 G-11
IC3506 I-10
IC3507 I-11
IC3508 H-10
IC3509 H-11
IC3510 J-10
IC3511 J-11
IC3512 J-10
IC3513 J-11
IC3514 I-11
IC3515 J-11
IC3516 I-12
IC3517 J-12
Q3301 G-3
Q3302 G-3
Q3303 G-4
Q3304 G-3
Q3305 G-3
Q3306 H-3
Q3307 G-6
Q3308 B-11
Q3309 H-5
Q3310 D-12
Q3311 H-5
Q3312 D-12
Q3313 H-5
Q3314 D-12
Q3315 G-5
Q3401 G-8
Q3402 H-8
Q3403 H-7
Q3404 H-7
Q3405 H-7
Q3406 G-6
Q3407 D-4
Q3501 H-12
Q3502 H-12
Q3503 H-12
Q3504 G-12
Q3505 G-12
Q3506 G-12
Q3511 G-11
Q3512 H-11
Q3513 G-11
Q3514 G-11
Q3515 I-11
Q3516 I-11
Q3517 H-11
Q3518 H-11
Q3519 J-11
Q3520 J-11
Q3521 J-11
Q3522 J-11
