— 74 —

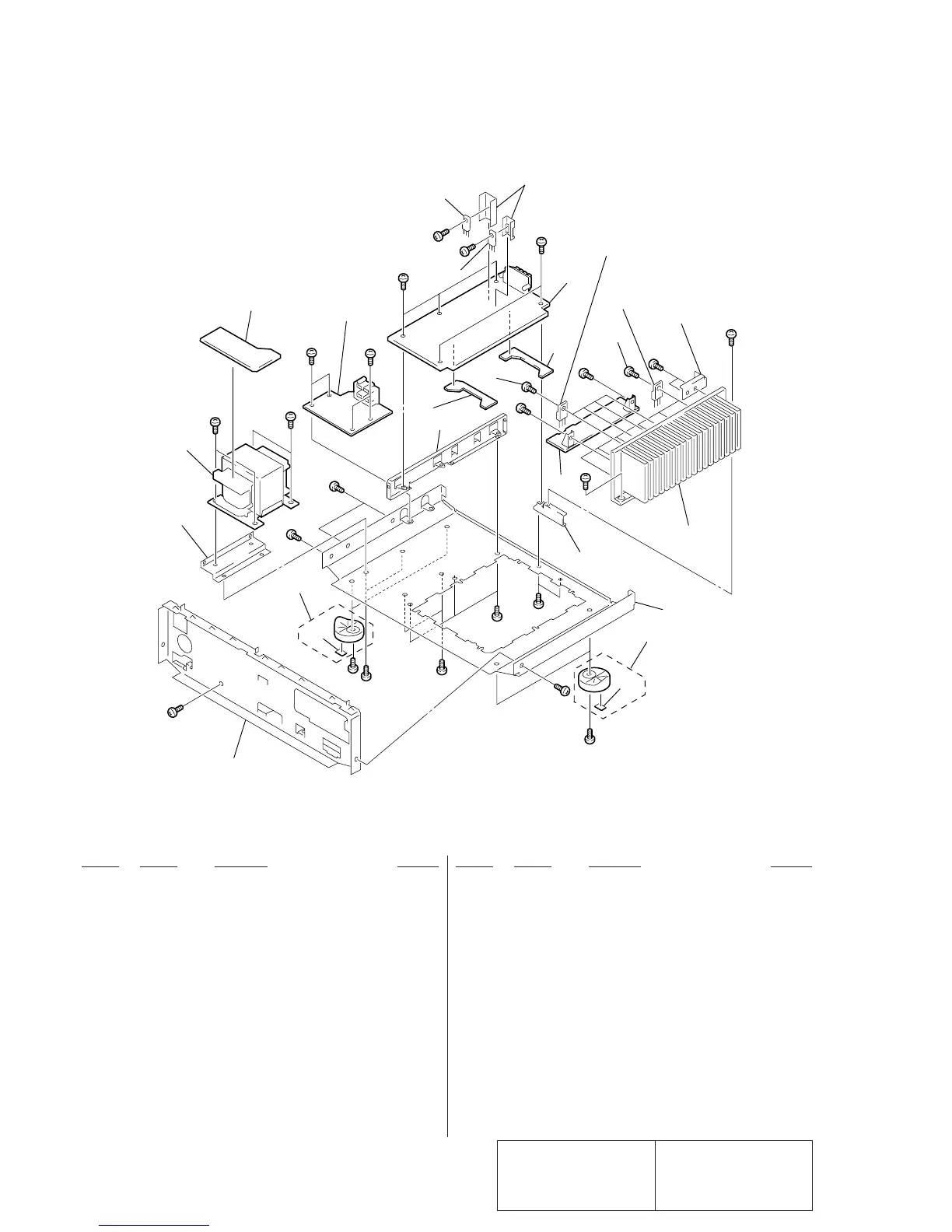

3-3. CHASSIS SECTION
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#3
#3
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
T901
not supplied
not supplied
103
101
104
102
107
108
109
108
106
105
101
103
#1
#1
IC801
IC803
Q506, 507, 556, 557
Q606, 607
Q706, 707
Q756, 757
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 X-4947-025-1 FOOT ASSY (BLACK)(VE910)
101 X-4947-207-1 FOOT ASSY (F50150S)(BLACK)(DE915:AUS,PX)
101 X-4947-208-1 FOOT ASSY (F50150S)(BLACK)
(DE915:US,CND)
101 X-4948-848-1 FOOT ASSY (GOLD)(V909)
* 102 A-4398-249-A PS BOARD, COMPLETE
(DE915:AUS/VE910:AEP,UK,G,AED,EE)
* 102 A-4398-261-A PS BOARD, COMPLETE (DE915:US,CND)
* 102 A-4398-278-A PS BOARD, COMPLETE (V909/VE910:E,SP,MY)
* 102 A-4398-282-A PS BOARD, COMPLETE (DE915:PX)
103 4-977-358-11 CUSHION (8X12.5) (DE915:US,CND)
* 104 1-665-783-11 SECONDARY BOARD
* 105 A-4398-230-A AMP BOARD, COMPLETE (DE915:US,CND,PX)
* 105 A-4398-280-A AMP BOARD, COMPLETE
(V909/VE910:E,SP,MY)
* 105 A-4398-286-A AMP BOARD, COMPLETE
(VE910:AEP,UK,G,AED,EE)
* 105 A-4398-288-A AMP BOARD, COMPLETE (DE915:AUS)
* 106 1-665-792-11 AMP JOINT (B) BOARD
* 107 1-665-791-11 AMP JOINT (F) BOARD
108 3-905-609-01 SCREW (TRANSISTOR)
* 109 A-4398-234-A REAR AMP BOARD, COMPLETE (V909/VE910)
* 109 A-4398-248-A REAR AMP BOARD, COMPLETE (DE915:AUS)
* 109 A-4398-258-A REAR AMP BOARD, COMPLETE
(DE915:US,CND,PX)
! T901 1-431-281-11 TRANSFORMER, POWER (US)
! T901 1-431-282-11 TRANSFORMER, POWER (CND)
! T901 1-431-283-11 TRANSFORMER, POWER (AUS)
! T901 1-431-284-11 TRANSFORMER, POWER (PX)
! T901 1-431-285-11 TRANSFORMER, POWER (E,SP,MY,CH)
! T901 1-431-286-11 TRANSFORMER, POWER (AEP,UK,G,EE,AED)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
